SV 104 USER'S MANUAL_DRAFT_______________________________________________
_
60
SESSION configuration panel enables you to see the
currently selected measurement data in the “Session data”
sub-panel.
“Add panel” contains a list of available information sections
or chunks so called panels that are available to place in the
report. Just double click to add a new panel section to the
report detailed configuration area. Note, that each panel can
be added more than once. It is possible to change the
information in each panel: for example: one panel with
parameters sorted in a table layout, and the other with a
graph, or a zoomed graph.
“Panels” contains the list of currently added information
chunks to the report detailed configuration area. Here you
can change the names of the individual added panels.
“Reports” contains information about user generated
documents saved by the software.
SESSIONS can be archived, or deleted with single button
click.

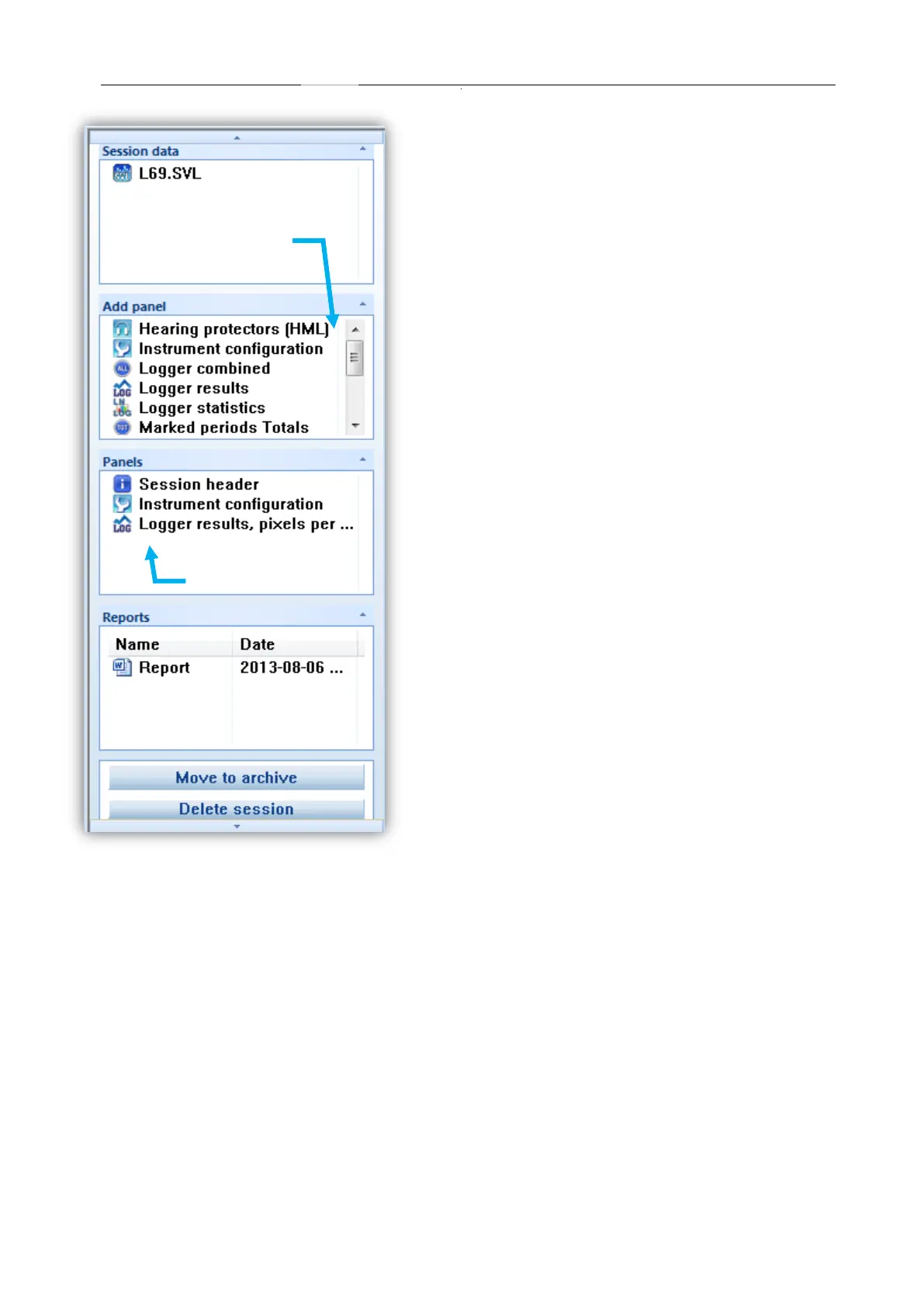

Figure 5-23 SESSION configuration panel
double click to add
panel to the report
double click
to jump to
the selected panel
