4.9 Before and after measurement run
Before starting a measurement ensure:
1 turn on the instrument (see chapter 4.3)
2 there is sufficient battery operating life and free memory by checking the status screen
(see chapter 4.4)
3 select the required configuration setup (see chapter 4.6)
4 the SV 104 is calibrated, because it affects the results (see chapter 4.7)
5 the windshield is put on because it protects the microphone from industrial environment such
as dust and moisture or from effects of impact (see chapter 3.3)
After stopping the measurement run, make sure:
1 the calibration is still maintained (see chapter 4.7)
2 download the data to PC for further analysis (see chapter 5)
3 turn off the instrument (see chapter 4.3)
4.10 Starting and stopping measurement run
START:
To start the measurements the user has to press the <SCROLL> and <PROFILE> keys at
the same time. The results of the measurement are displayed in the last used result’s display view mode. As
an example one profile mode is displayed. One profile mode is always available for most Functions of the
instrument. The results of the measurements can also be presented in other display modes, which can be
enabled or disabled and adjusted to the user’s needs.
STOP:
The same combination of keys: <SCROLL> and <PROFILE> allows the user to stop the
measurement run. All run results are always saved automatically, there is no need to save them manually.
4.11 Auto-run mode information
Note, that when auto-run mode (timer and/or pause) is configured, there is information on the screen
available for the user. There is no need to turn on the instrument manually. All the timer procedures can be
easily pre-programmed with the use of the SUPERVISOR software.

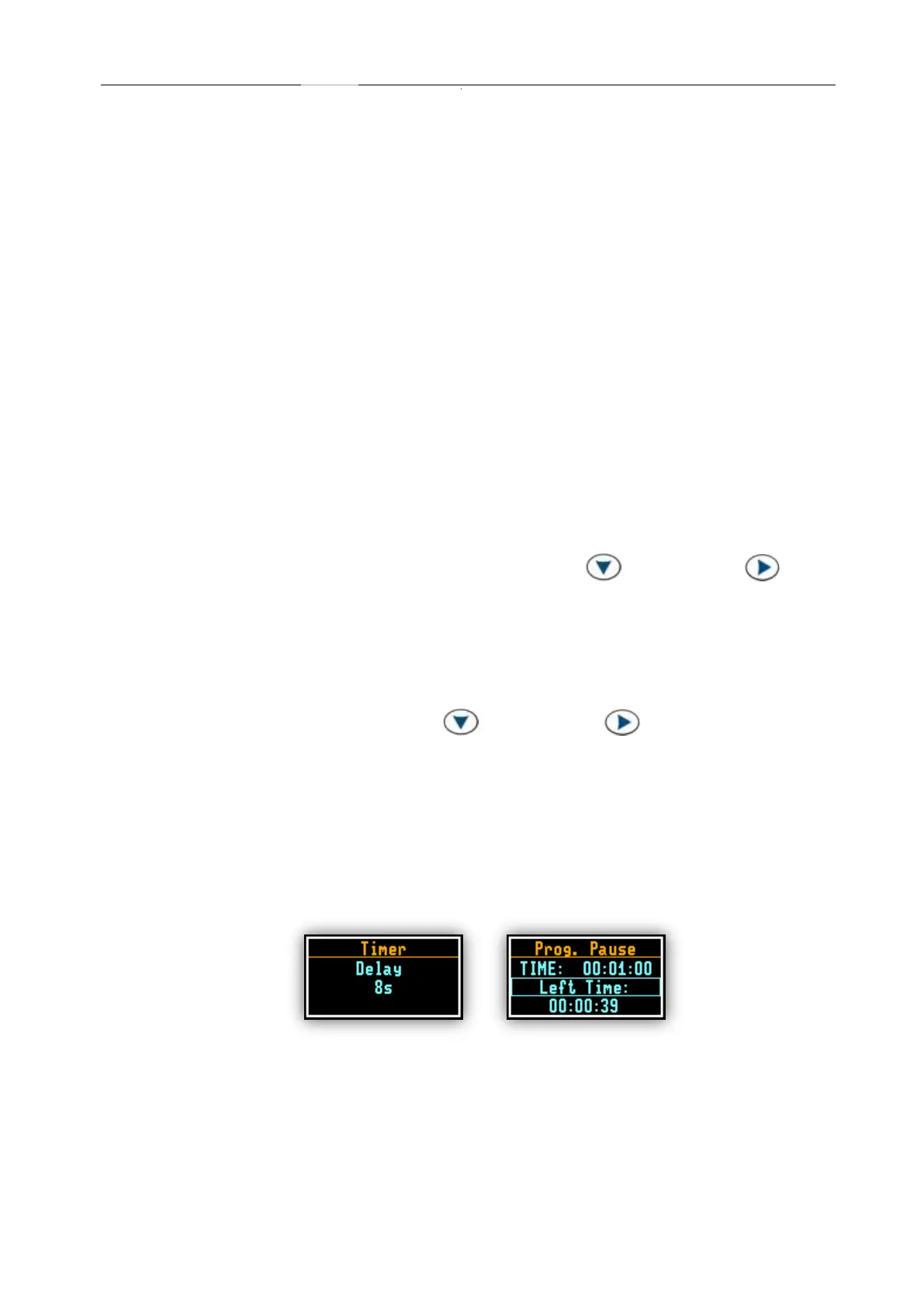

Figure 4-16 Auto-run mode – timer and programmable pause screen
