5.4.6 Octave analysis Spectrum configuration tab
Real time 1/1 octave analysis is an additional optional feature. Therefore it has its own settings tab.
Within this tab there are the following panels:
 named “Data”: This configures the weighting filter that is to be used with octave calculation.
 named “Scale”: Here the visible dynamic range of the graphical plot can be set, as well as
the grid visibility enabled

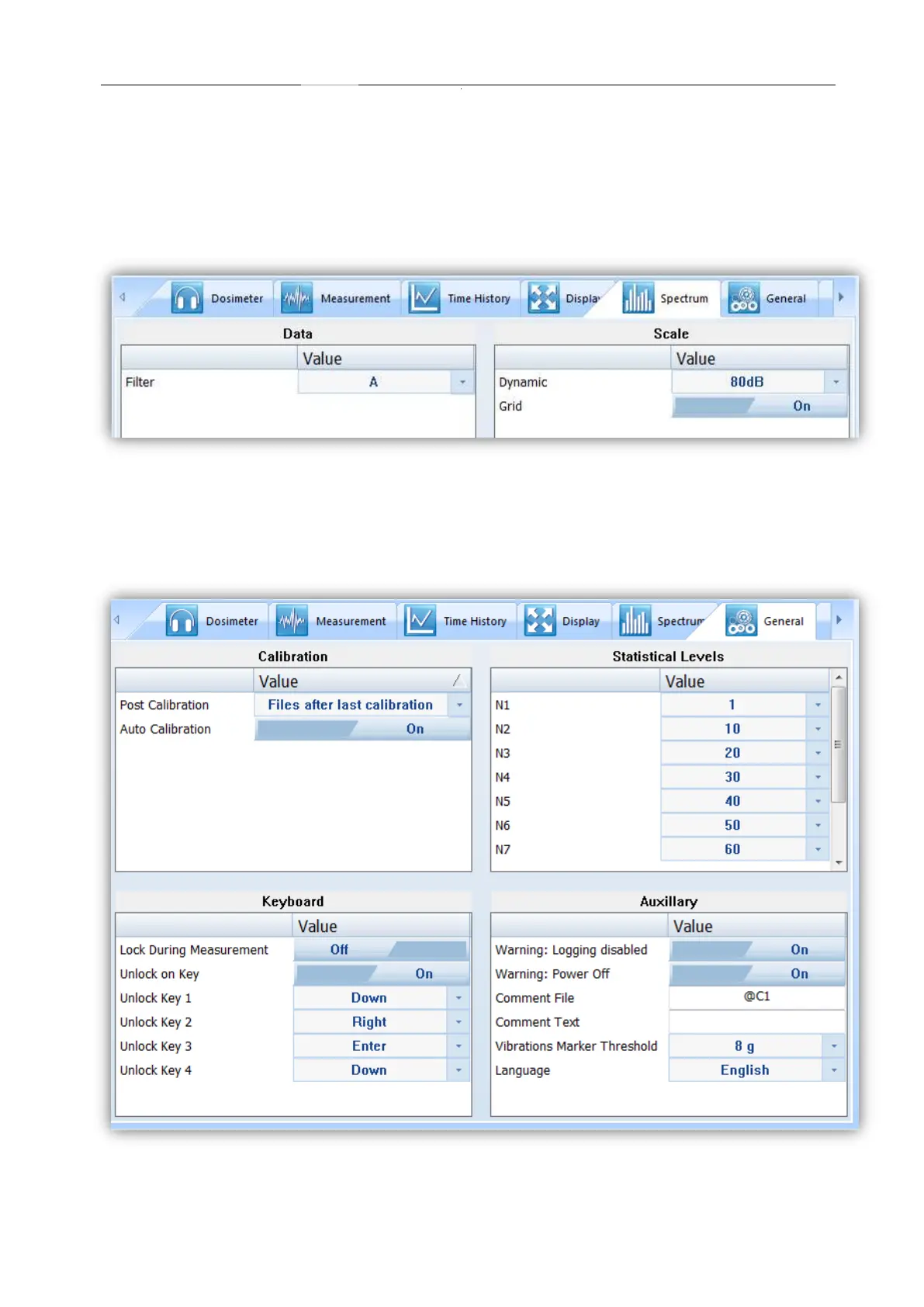

Figure 5-11 Spectrum configuration tab
5.4.7 General settings tab
General settings tab concerns to many different usability options: See the followed by chapters
to understand exactly how to configure these instrument settings.
Figure 5-12 General settings tab
