SV 104 USER'S MANUAL_DRAFT_______________________________________________
_
54
5.4.8 Auto-Run settings (timer, pauses) tab
The Timer panel enables the user to program the internal real time clock to act as a delayed start and
stop timer. The instrument can be switched on by itself at the pre-selected programmed time and it can then
perform the measurement run, which was used before it was last switched off. Auto-run feature is useful
if you wish to pre-set the instruments to run and stop for a specific time period, such as a week long study.

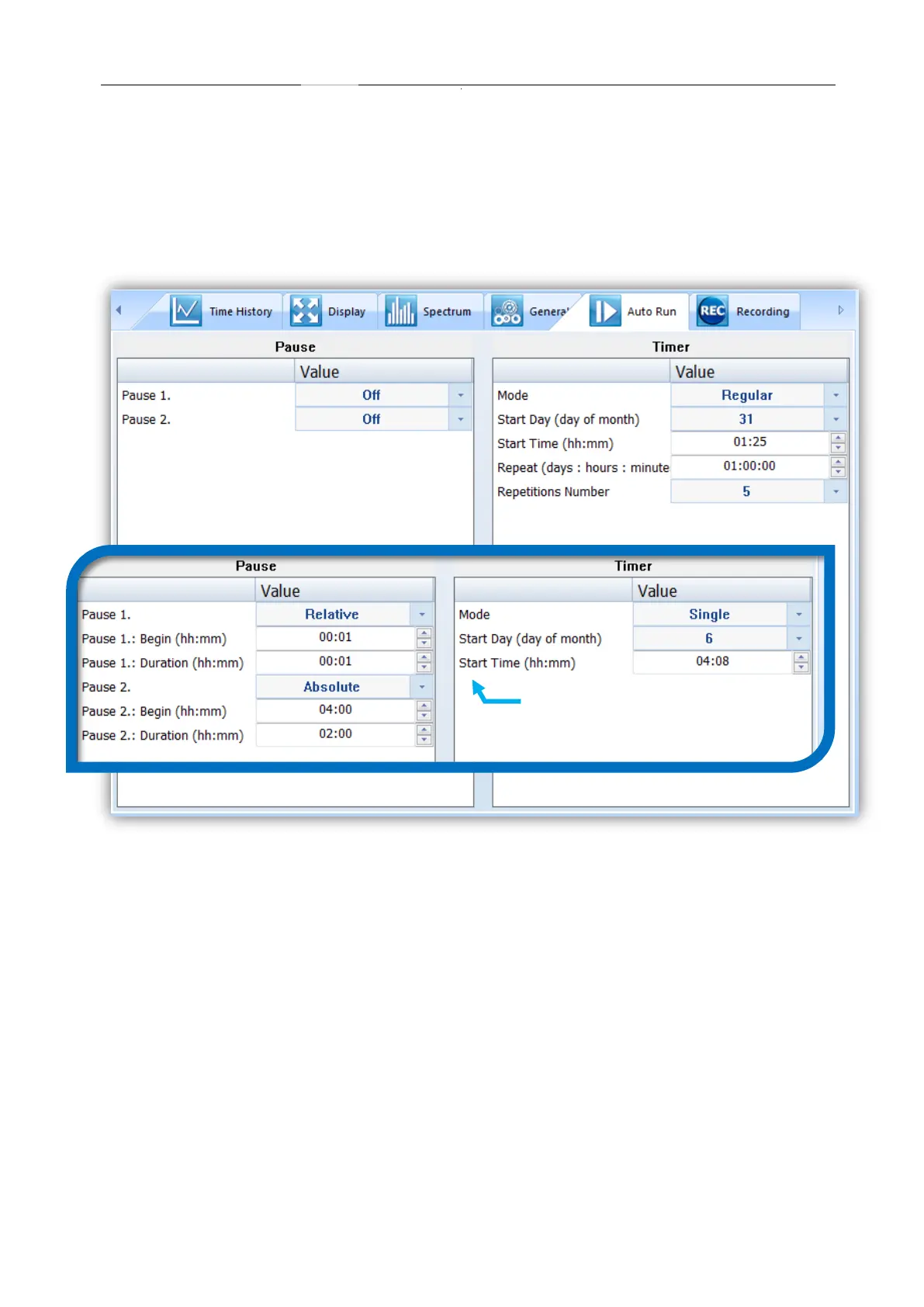

Figure 5-17 Auto-run configuration tab
The timer configured in right panel named “Timer” can be:
switched off – “Off”
switched on only once – “Single”
or switched on many times on regular basis – “Regular” Multiple times with the period
between two consecutive measurements set in the Repetition line. In the Simple instrument
interface mode the Timer position doesn’t appear in the Measurement list.
Selecting the mode of the timer function
The timer can be switched off – “Off”, switched on only once – “Single”, or switched on many times
regularly – “Regular” multiple times with the period between two consecutive measurements set in the
“Repetitions Number” line.
In the case when the timer function is active (“Single” or “Regular”) and the instrument is switched on
the Time screen appears until the programmed measurement runs are finished.
Enabled:
Pause and Timer
mode of operation
