swaploader SL-520X - Page 74

SectionV:Parts


5.0.PAR.SL-520X




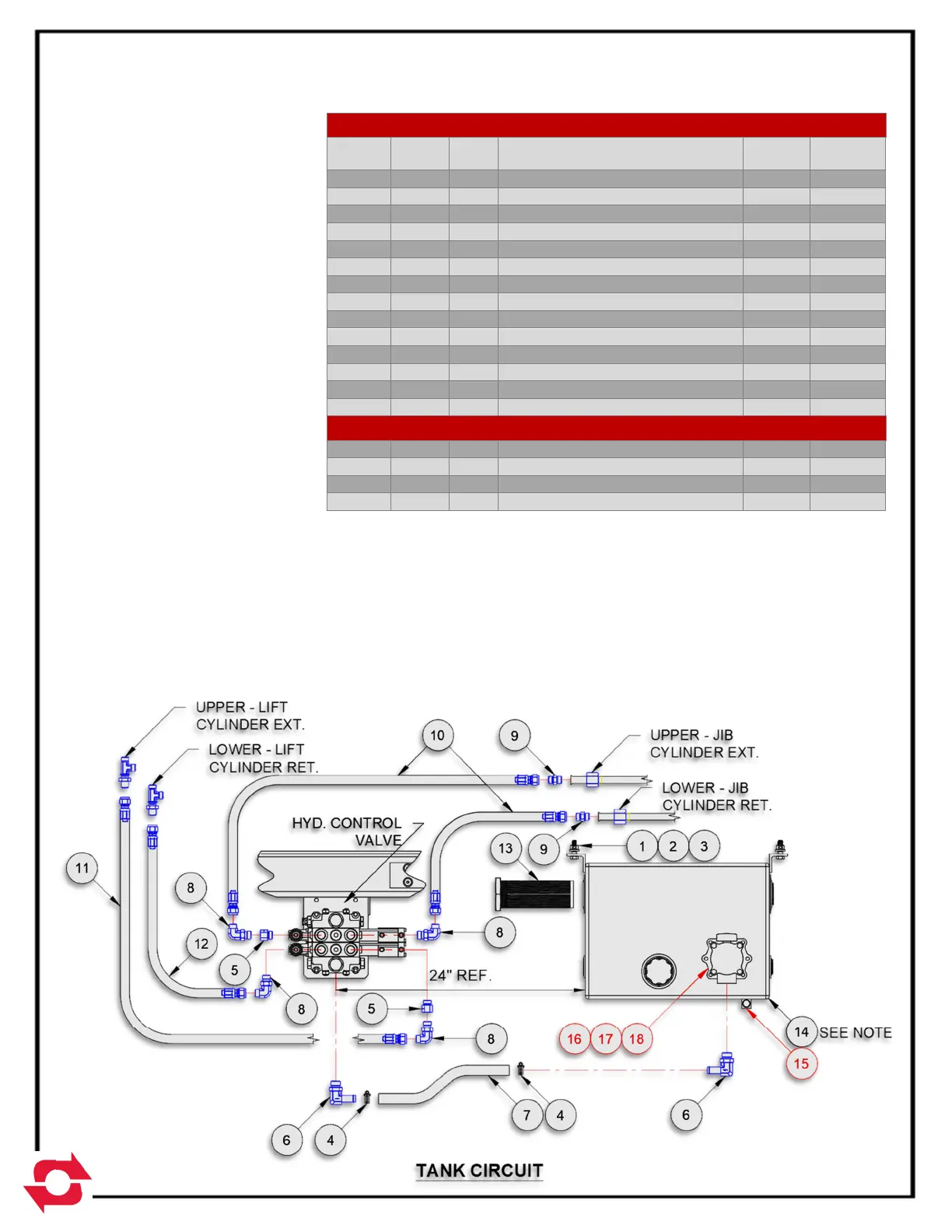

91H70 – TANK CIRCUIT SL-520X
ITEM
PART
#
QTY DESCRIPTION
WT-
lb/ea.
WT-lb/all
1
00784 4 Washer, Flat 7/8 HT 0.30
0.60
2
00P15 4 HHCS 1/2-13 UNC x 1-3/4 Gr8 0.30
0.30
3
00P35 4 Nut, Lock 1/2-13 UNC GrC 0.10
0.10
4
11P20 2 Clamp, WG 11/16 - 1-1/2 0.12
0.24
5
12P17 2 Adp Hyd 10MB/08FB 7.50
7.50
6
12P23 2 Adp Hyd 12HB/12MB 90 7.90
7.90
7
12P29 1 Hose 3/4 x 24 LP 2.40
2.40
8
14P35 4 Adp Hyd 08MF/10MF 90 2.70
2.70
9
14P37 2 Adp Hyd 08MF/08MF 0.40
0.80
10
14P38 2 Hose Assy 21 08-08FF/08FF 0.40
0.80
11
14P39 1 Hose Assy 33 08-08FF/08FF 0.70 0.70
12
14P40 1 Hose Assy 29 08-08FF/08FF 0.40 0.40
13
21P16 1 Hyd Strainer, 50 GPM 0.70 0.70
14
23P29 1 Hyd Tank, 25 Gallon 10um 2.37 2.37
TANK SERVICE PARTS
15 20P96 Sight Gauge, Hyd Tank
16 23P31 Breather Cap Assy, Hyd Tank
17 23P33 Hyd Filter Assy, 25 GPM
18 23P34 Hyd Filter Element (23P29)
Note: Tank consists of tank weldment, sight gauge, filler/breather cap, filter
assembly, magnetic drain plug and port plugs.
5-10
