SWELLPRO SplashDrone 4 - Aircraft Diagram

©2022 SwellPro All Rights Reserved 9

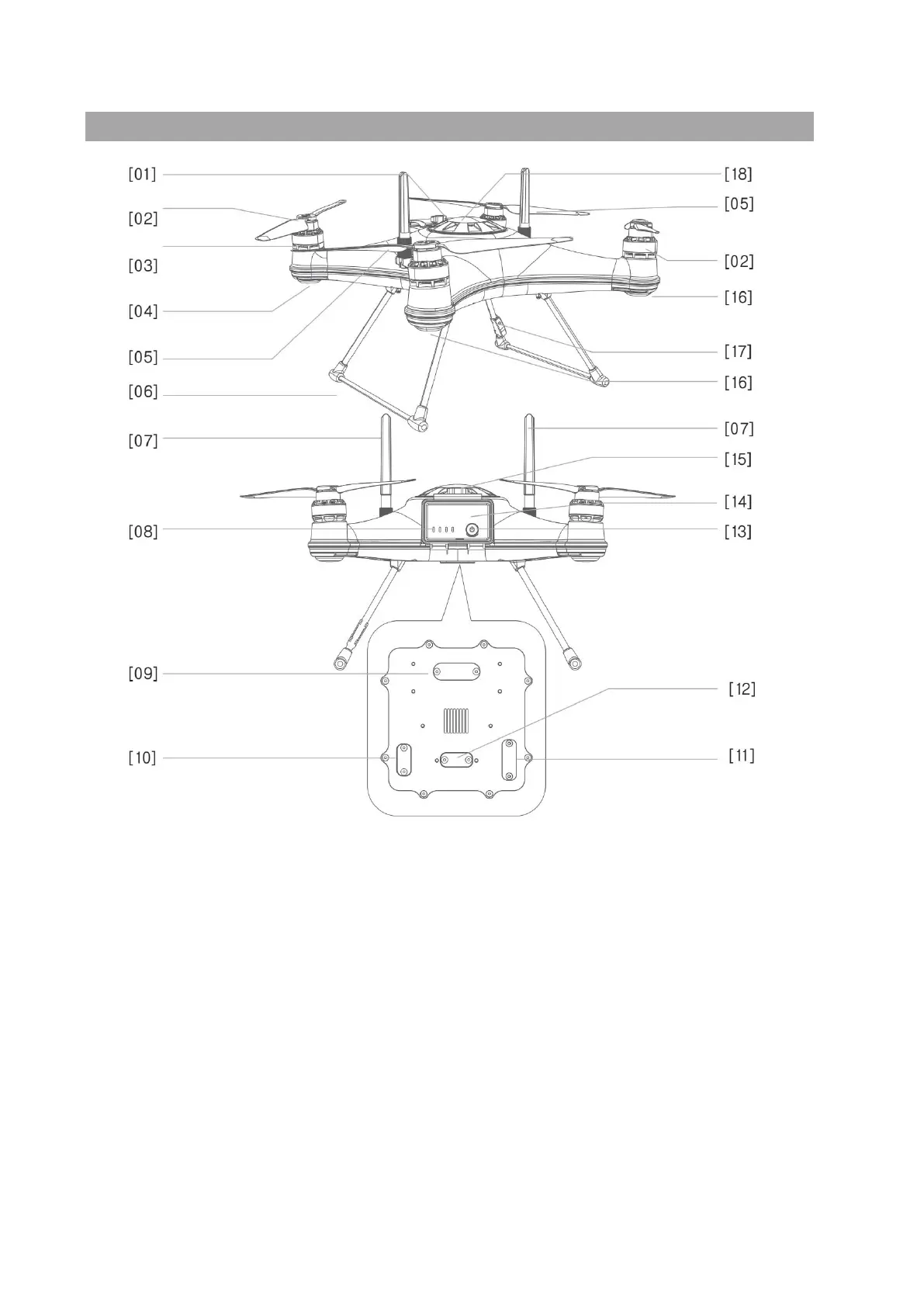

Aircraft Diagram
[01] Strobe Light
[02] CW (clockwise) Propeller
[03] Waterproof Motor
[04] Rear Arm Light
[05] CCW (Counter-clockwise) Propeller
[06] Landing Gear
[07] Antennas
[08] Battery Status Indicator
[09] Gimbal Camera Port
[10] Payload Release Port
[11] SDK Port
[12] USB Port and Pairing Button
[13] Power Button
[14] Battery Hatch
[15] Battery Hatch Lock
[16] Front Arm Light
[17] Compass Sensor
[18] GPS Cover
