ELECTRONIC COMPONENTS | RFID COMPONENTS 28
APR/2017 TECHNICAL OPERATIONS AND MAINTENANCE GUIDE | NEXUS STATION
Nexus Station circuit boards
RFID components
Radio Frequency Identification (RFID) is used in the station to track and detect carriers. RFID-equipped car-
riers include RFID antennae for tracking throughout the pneumatic tube system. The Nexus Station is
equipped with an antenna at the top of each of the five carrier positions on the carousel. At the top, front of
the carousel assembly are two primary transformers that connect to the RFID reader board, which connects
to the main control board.

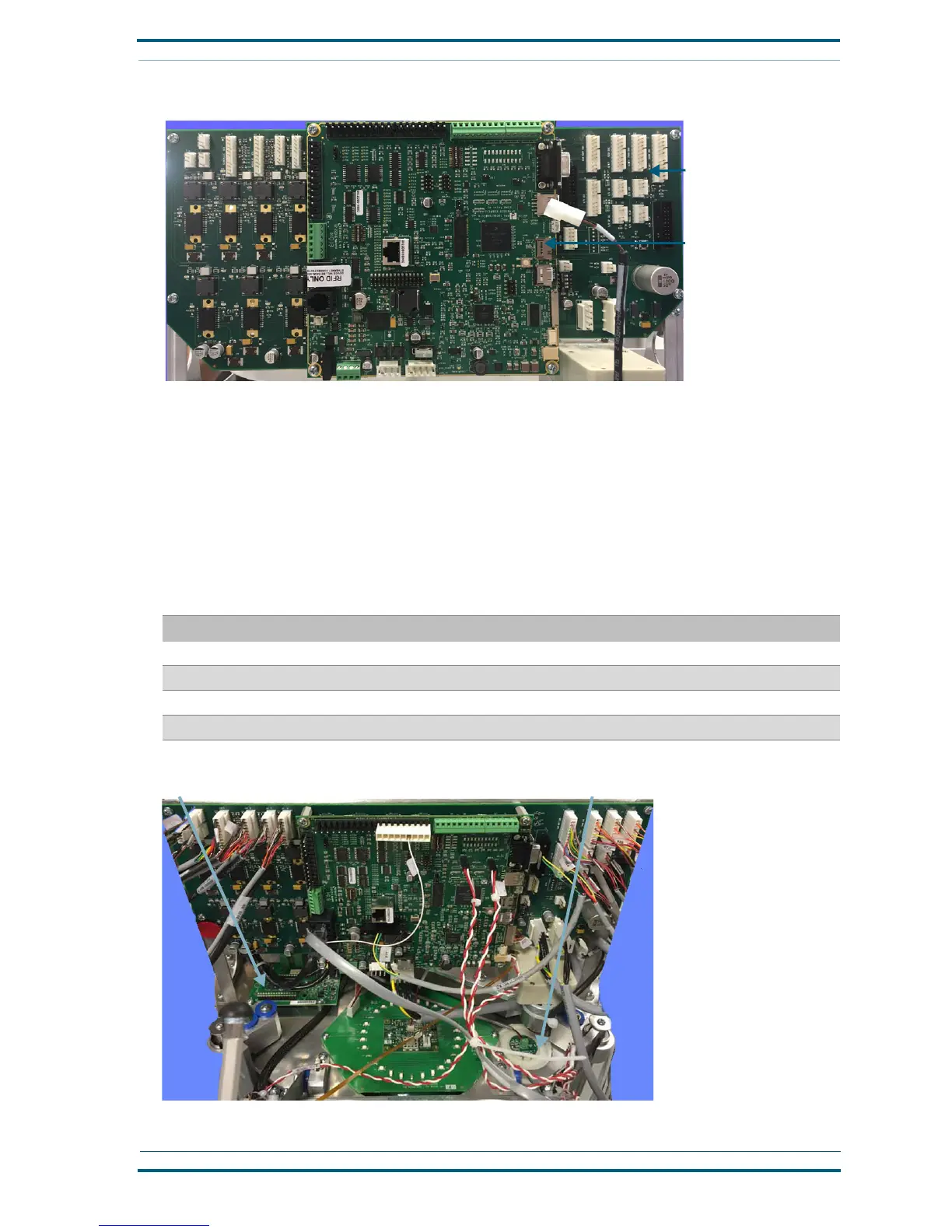

The first photo shows an overhead view of the electronic components at the top, front of the station.
with the RFID components highlighted. The second shows close-up views of the transponders and reader
board.
Nexus Station RFID components position
Part Number Description Recommended maintenance
86507601 Radio frequency PCB assembly, primary 1 Replace when needed
86507602 Radio frequency PCB assembly, primary 2 Replace when needed
86507603 Radio frequency assembly, secondary (antenna) Replace when needed
86372601 RFID reader PCB assembly Replace when needed
Main circuit board (Interface
PCB assembly)
Display (HMI 3) circuit board
RFID reader board
RFID primary transponder
