NEXUS STATION | TECHNICAL OPERATIONS AND MAINTENANCE GUIDE APR/2017
57 CORE-TURNSTILE ASSEMBLY | SECURE THE CORE-ASSEMBLY FRAME TO THE BASE FRAME
Secure the core-assembly frame to the base frame
When the core assembly is in place on the base frame, you can move the cables out of the way and then bolt
the lower core-frame to the base frame.
Follow these steps to secure the core-assembly frame to the base frame.

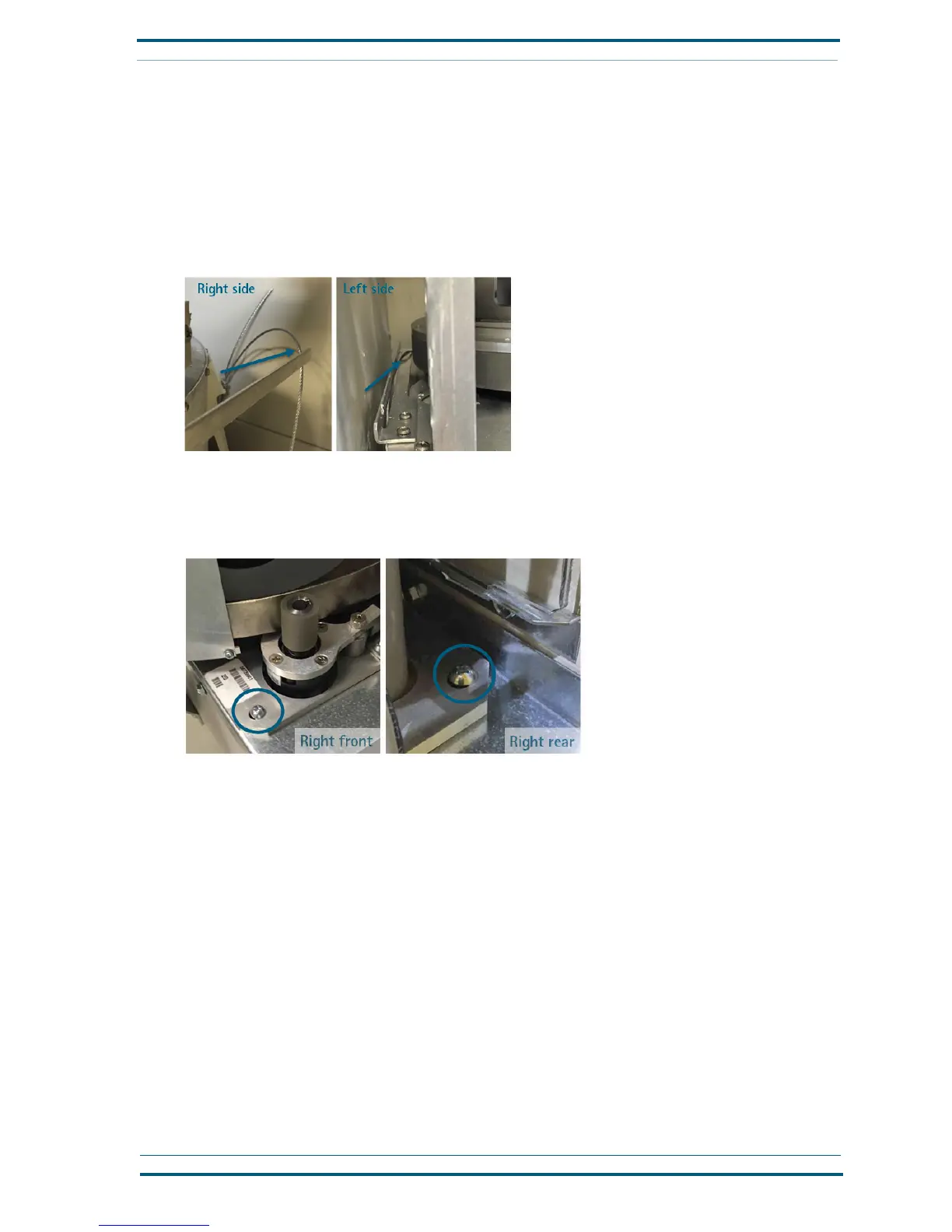

1 With the core-turnstile assembly in place on the lower fascia frame, remove the cables from the car-
abiner clips on the winch attachment, and then push both steel lifting cables to the back of the sta-
tion, on both sides, as shown.
2 When the core-turnstile assembly is in place, bolt the right corners of the square turnstile frame to
the base frame below it with the two provided pan-head screws, as shown.
You may need to adjust the position of the lower turnstile frame slightly to get the holes in the upper
frame to line up with the holes in the aluminum frame below.
