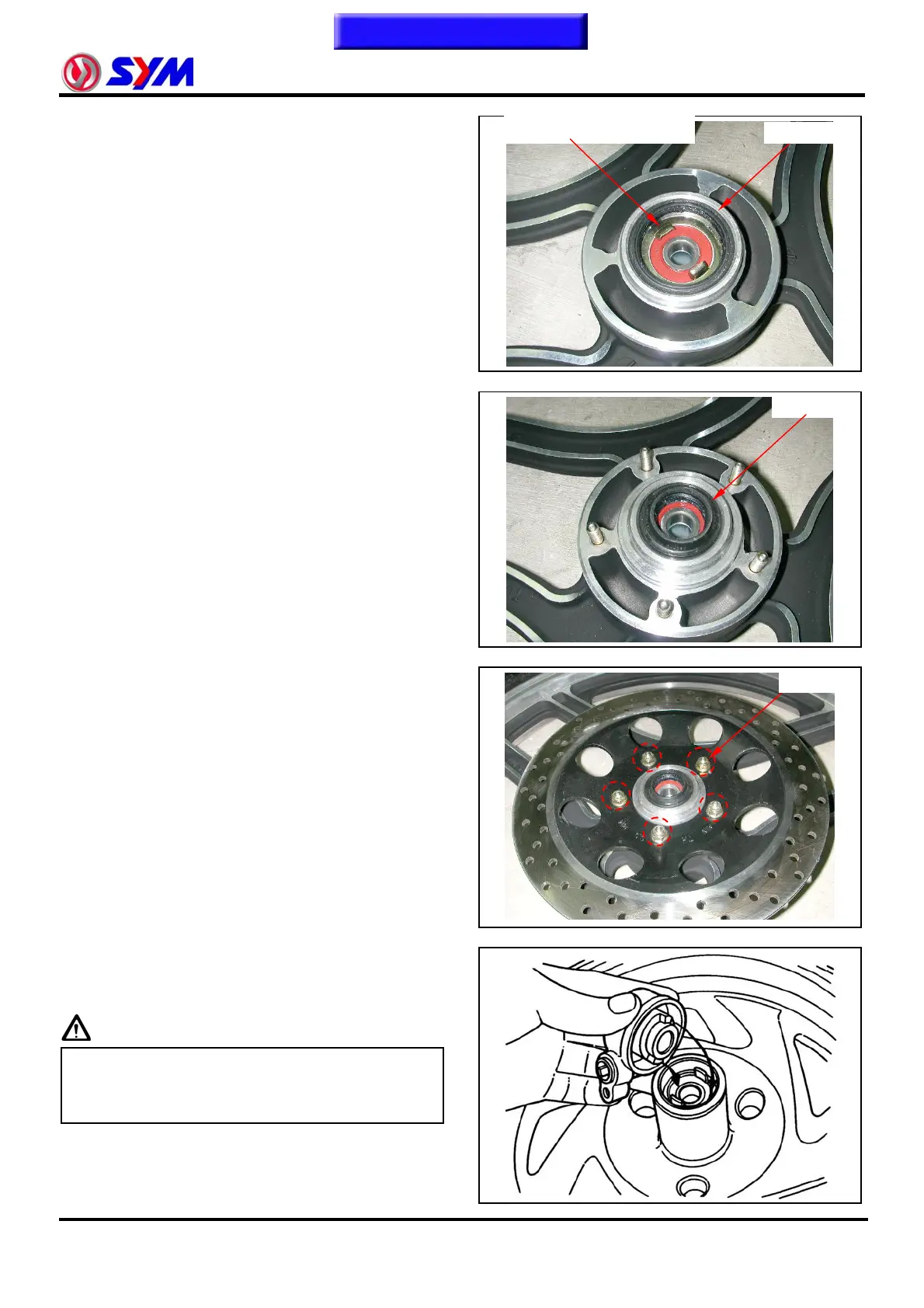

Installation
Install the speedometer gear retainer.
Apply grease to the inner and outer side of oil
seal and install oil seal into the wheel hub.
Apply grease to the inner and outer side of oil
seal and install oil seal into the wheel hub.
Install the brake disk (nut×5).
Torque value：1.4~1.6kgf-m
Align the raised part of speedometer gear with
the groove of speedometer gear retainer.
Install the speedometer gear.
Caution
z Contaminated brake pad will decrease
braking efficiency; therefore grease cannot
be applied to brake pad and brake disk.
Speedometer gear retainer
Oil seal
Oil seal
Nut×5
