9. FINAL DRIVING MECHANISM
9-5

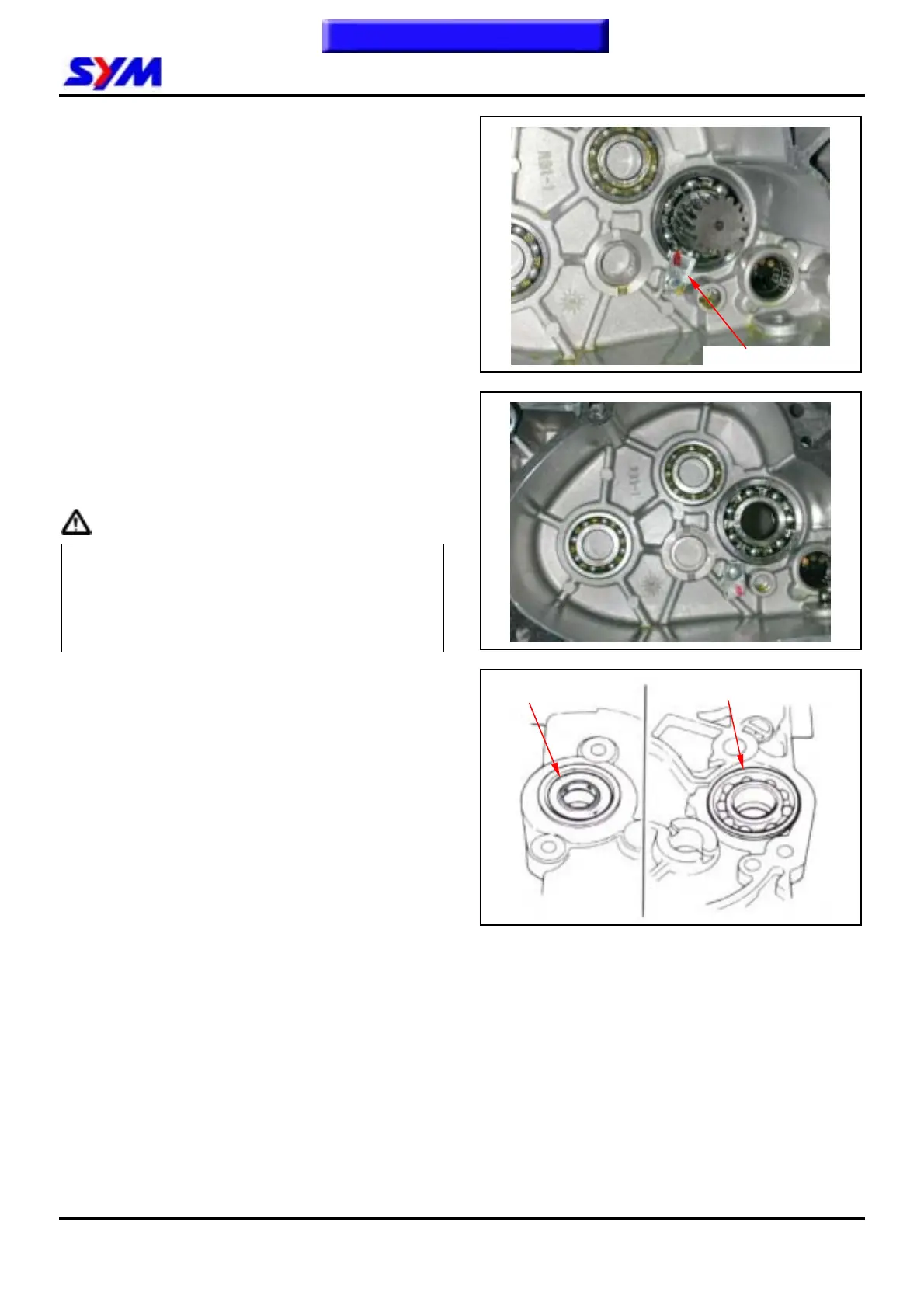

Remove drive shaft bearing setting plate (1 bolt).
Remove the drive shaft.
Special tool:
Shaft protector
Remove gasket and dowel pin.
Caution
y If non- essential do not remove the drive
shaft from the case upper side.
y If remove the drive shaft from the gear box,
then its bearing and oil seal has to be
replaced.
To this chapter contents
Bearing
Oil seal
Bearing setting plate
