9. FINAL DRIVING MECHANISM
9-11

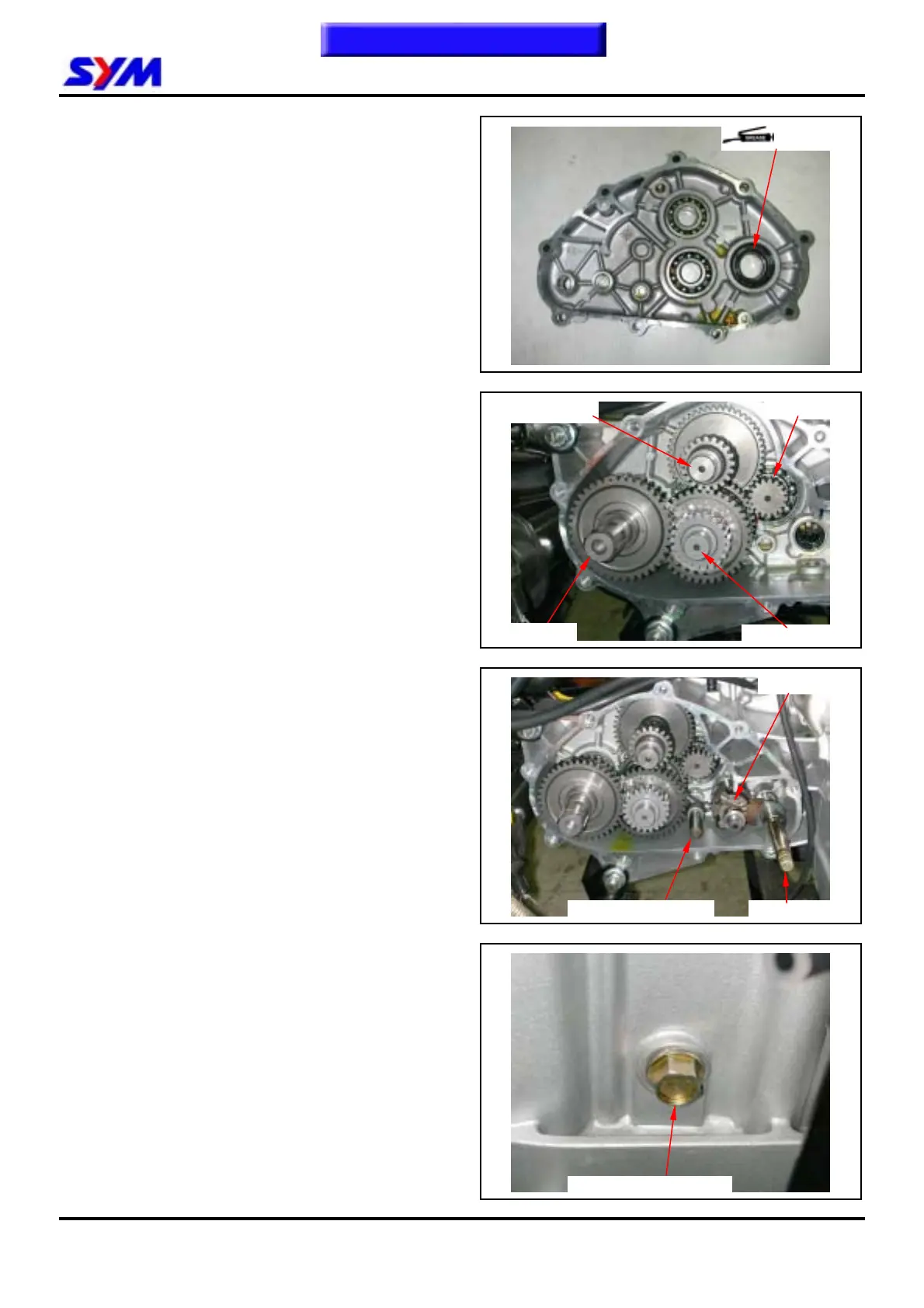

Re-assembly of Final Driving
Mechanism
Apply with grease onto the oil seal lip of final
driving shaft.
Install counter shaft, reverse shaft and final shaft
onto gear box.
Install shift drum, shift fork and fork shaft onto gear
box.
Install shift drum fixed catch ball, spring and bolt
onto gear box.
To this chapter contents
Oil seal
Reverse shaft
Counter shaft
Final shaft
Drive shaft
Shift drum
Shift spindleShift fork shaft and fork
Shift drum fixed catch bolt
