13. BODY COVER
13-11

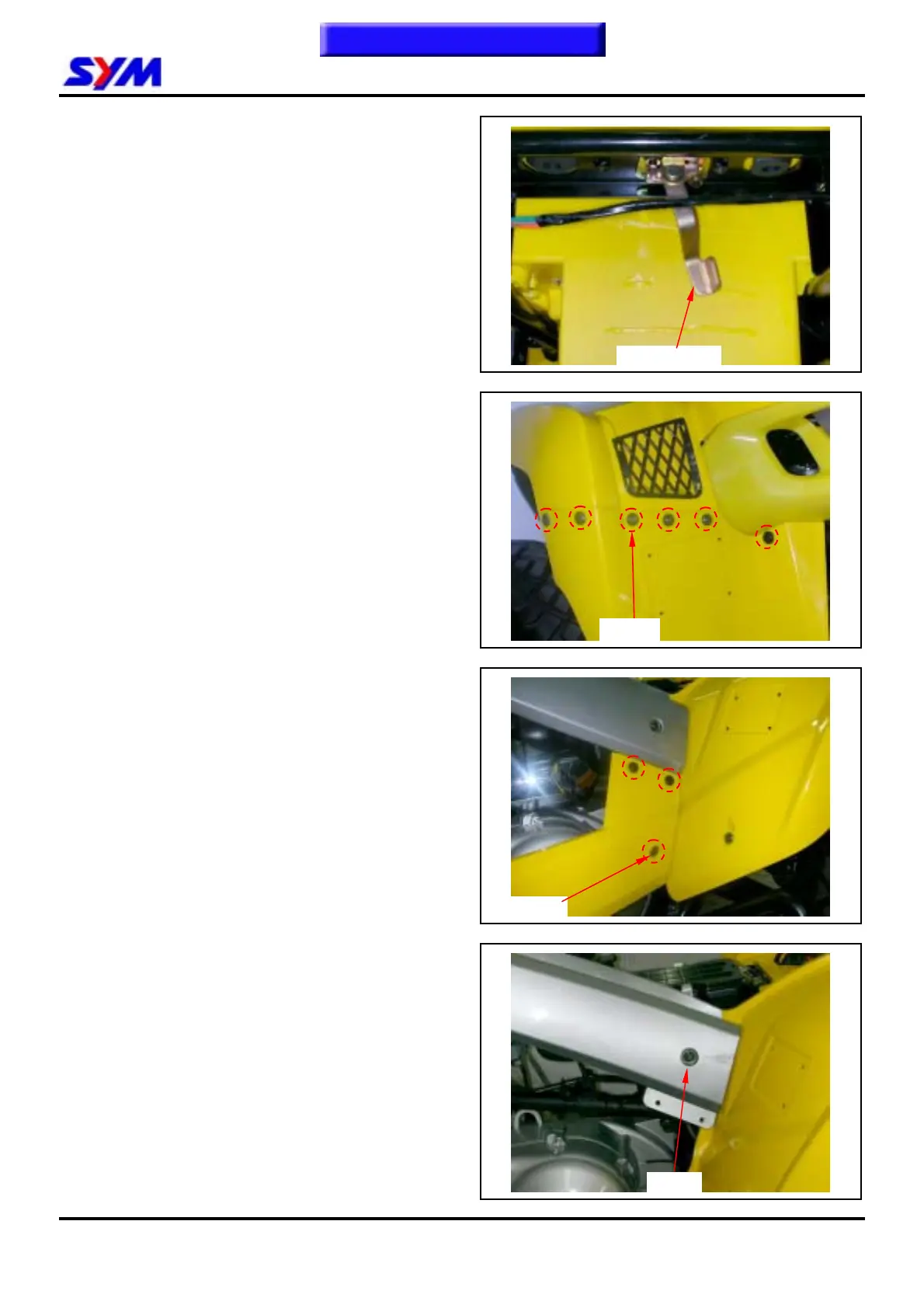

Rear fender
Remove rear carrier.
Pull the “Seat Release Bar” up in order to remove
the seat.
This seat release bar is under the rear side of the
rear fender.
Loosen the 6 screws, which connect the front
fender and side lower covers, these 6 screws just
be twin the front fender two side.
Remove right and left side lower covers rear side
screws (each side 3 screws), and then remove
side lower covers.
Remove right and left side covers (each side 1
screw).
Seat release bar
To this chapter contents
6 screws
3 screws
1 screw
