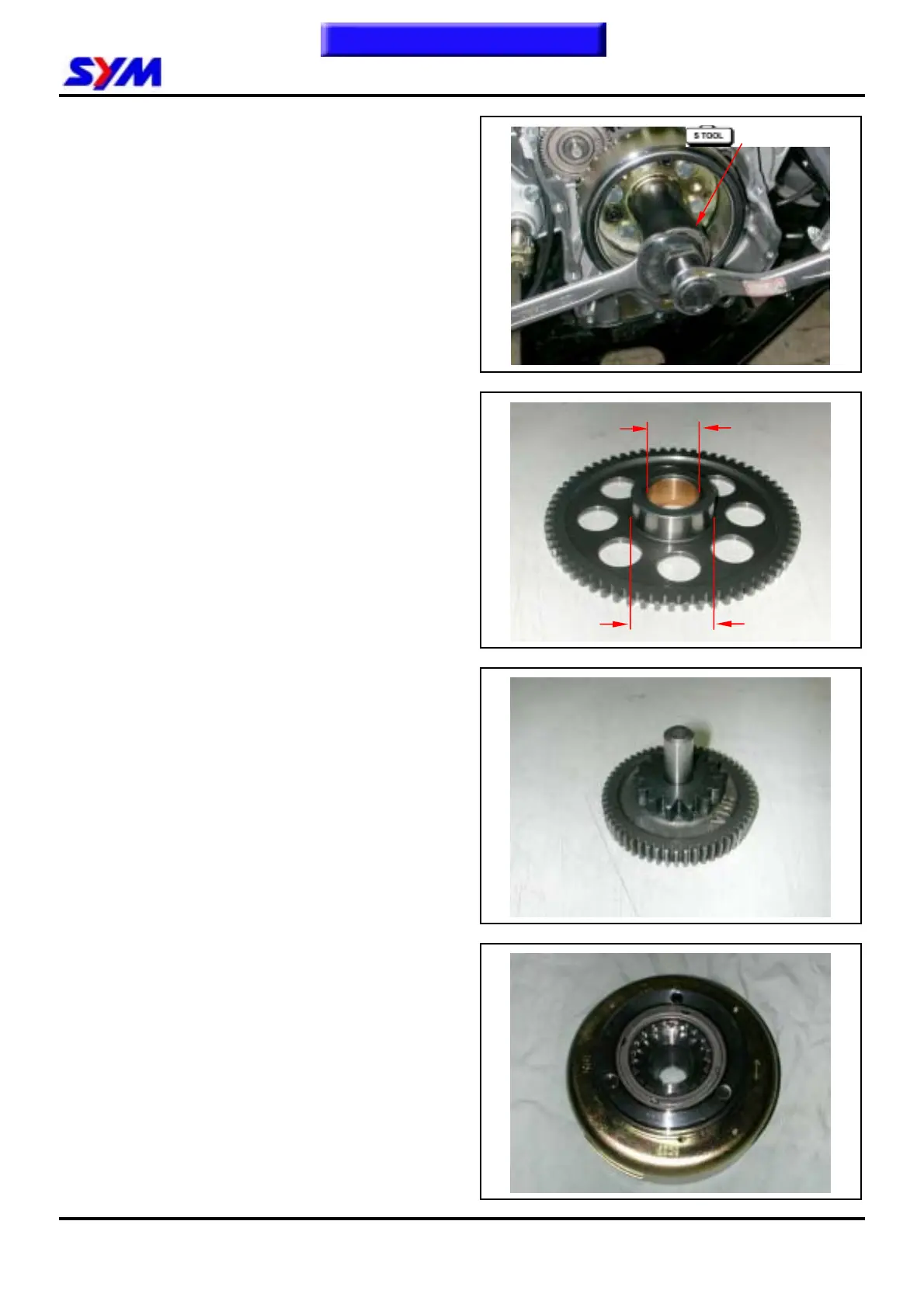

10. ALTERNATOR/STARTING CLUTCH
10-5
Remove starter reduction gear and shaft.
Pull out flywheel with A.C.G. flywheel puller.
Special tool:
A.C.G. Flywheel puller
Remove flywheel and starting driven gear.
Starting Clutch
Starting Clutch Inspection
Remove starting clutch driven gear.
Check the gear for wear or damage.
Measure the ID and OD of the starting clutch
driven gear.
Service Limit: ID: 25.050 mm
OD: 42.100 mm
Check the starting reduction gear and shaft for
wear or damage.
Check each roller for wear or damage.
To this chapter contents
flywheel puller
ID
OD
