13. BODY COVER
13-12

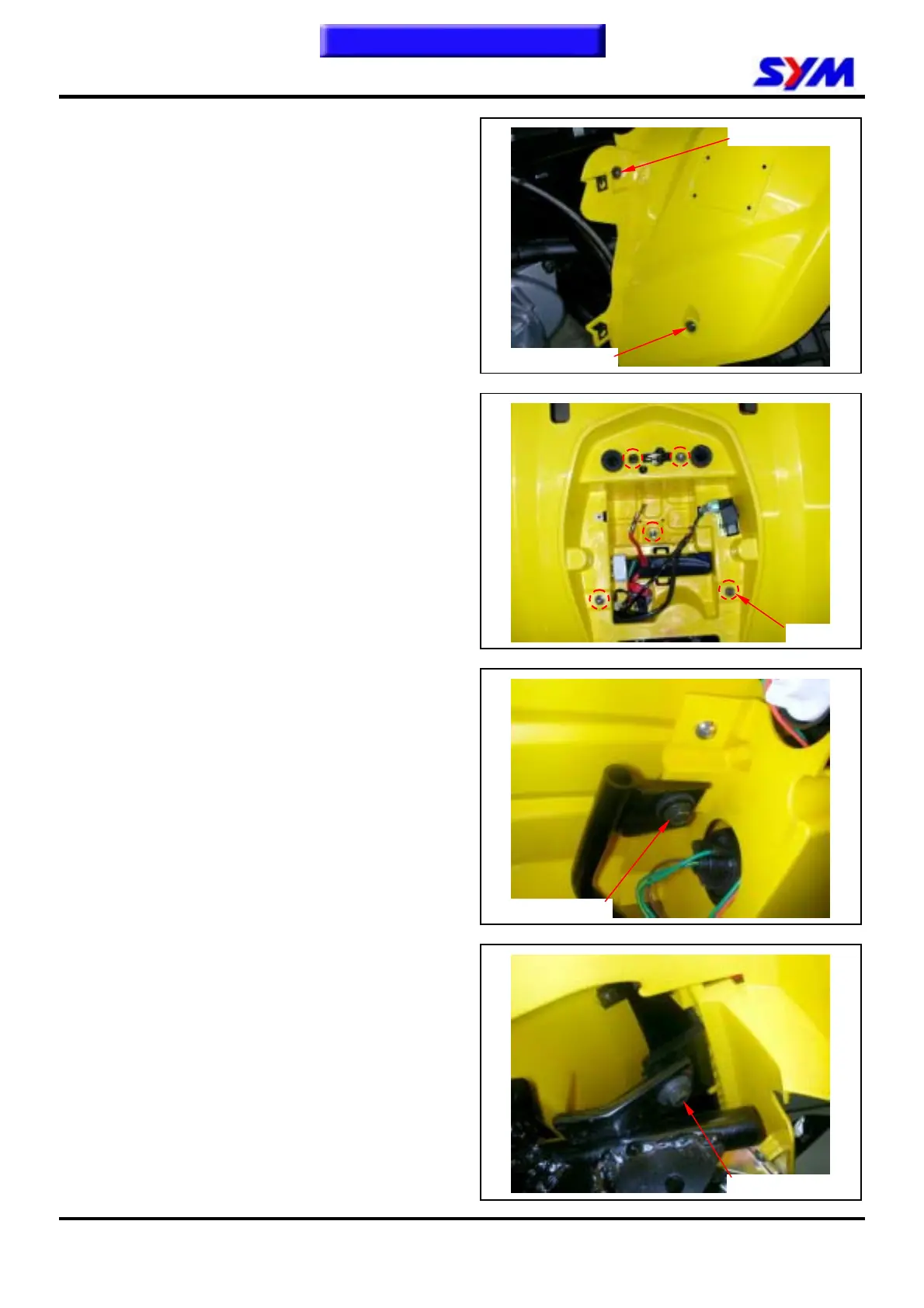

Remove rear fender front side bolts and screws
(each side 1 screw and 1 bolt).
Remove battery, CDI unit, start relay and fuse box.
Remove rear fender upper side 5 bolts.
Loosen the 2 bolts, which connect the rear tender
and frame, these 2 bolts just below the rear fender
light coupler side.
Loosen the 2 bolts, which connect the rear tender
and frame, these 2 bolts just below the rear fender
rear side.
Remove taillight couplers, and then remove rear
fender.
Installation
Install in reverse order of removal procedures.
Each side 1 bolt
To this chapter contents
Each side 1 bolt
5 bolts
Each side 1 bolt
Each side 1 screw
