13. BODY COVER
13-13

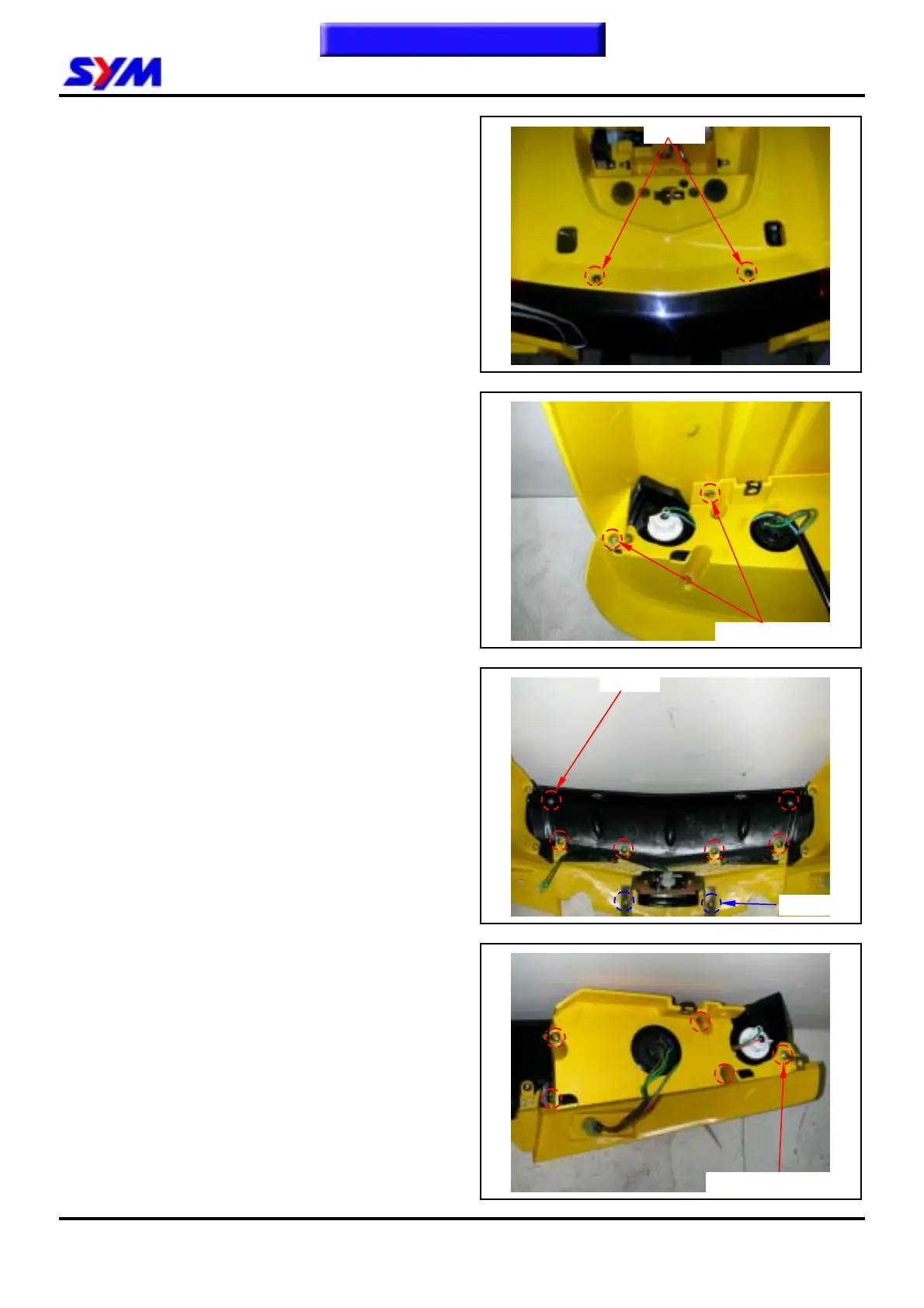

Disassembly
Remove rear fender and rear bumper upper side 2
screws.
Remove rear fender and rear bumper inner screws
(each side 2 screws).
Remove rear bumper and taillights.
Remove tail cover and rear bumper 6 screws, and
then remove tail cover.
Remove license light 2 screws, and then remove
license light.
Loosen the 10 screws, and then remove taillights
(each side 5 screws).
Installation
Install in reverse order of removal procedures.
6 screws
To this chapter contents
2 screws
Each side 2 screws
Each side 5 screws
2 screws
