16. REAR BRAKE & REAR WHEEL & REAR CUSHION
16-8

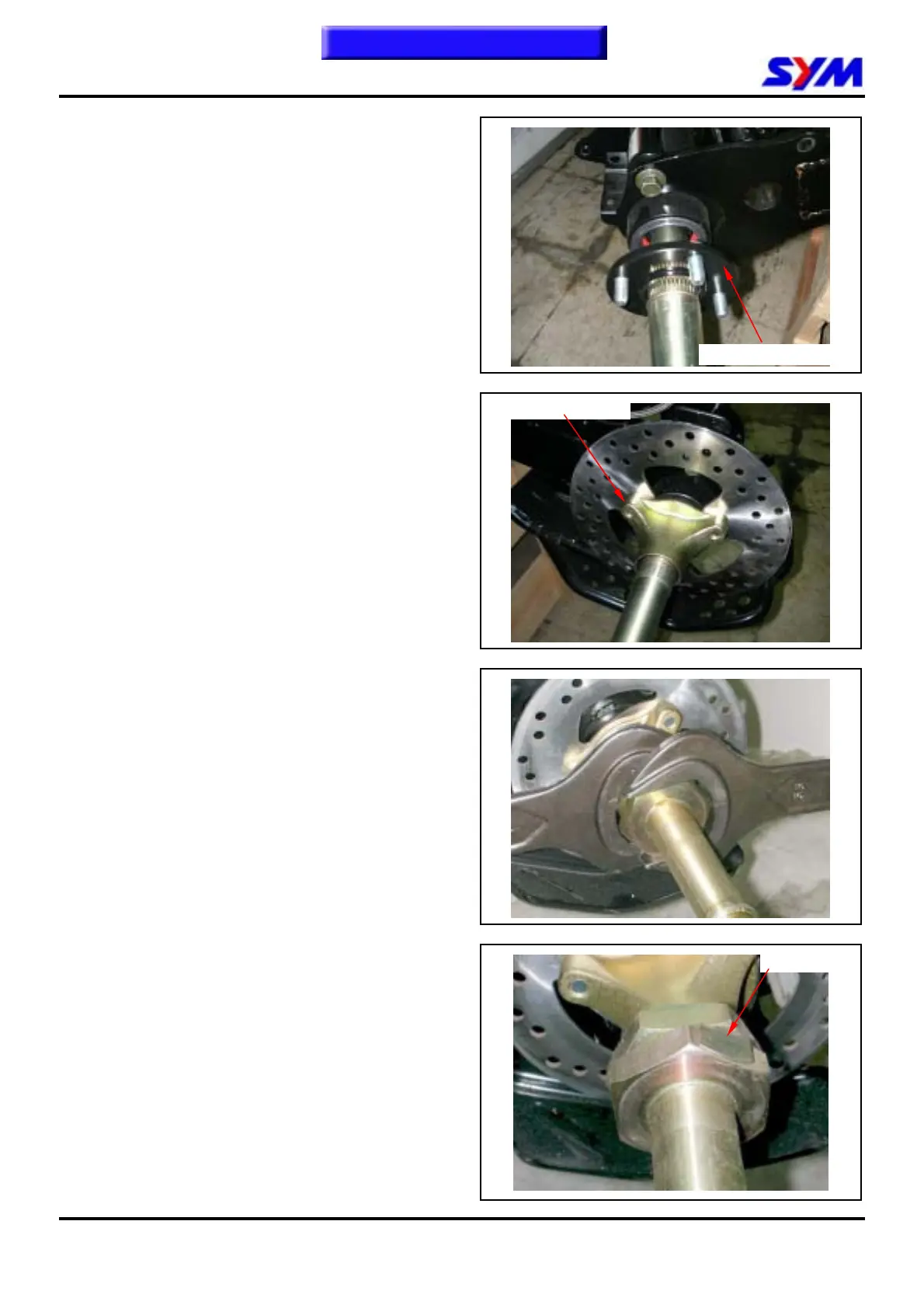

Installation
Install rear wheel axle and driven sprocket holder.
Install rear brake disk bracket and disk.
Install rear wheel axle nuts, rear axle nut fixed
plate and tighten the nuts.
Torque: 9.2kgf-m
Special tool:
Rear axle nut wrench (55mm)
Rear axle nut torque wrench
Torque wrench
After tightened the axle nut, bend the rear axle nut
fixed plate.
To this chapter contents
Fixed plate
Driven sprocket holder
Brake disk bracket
