5. ENGINE REMOVAL
5-4

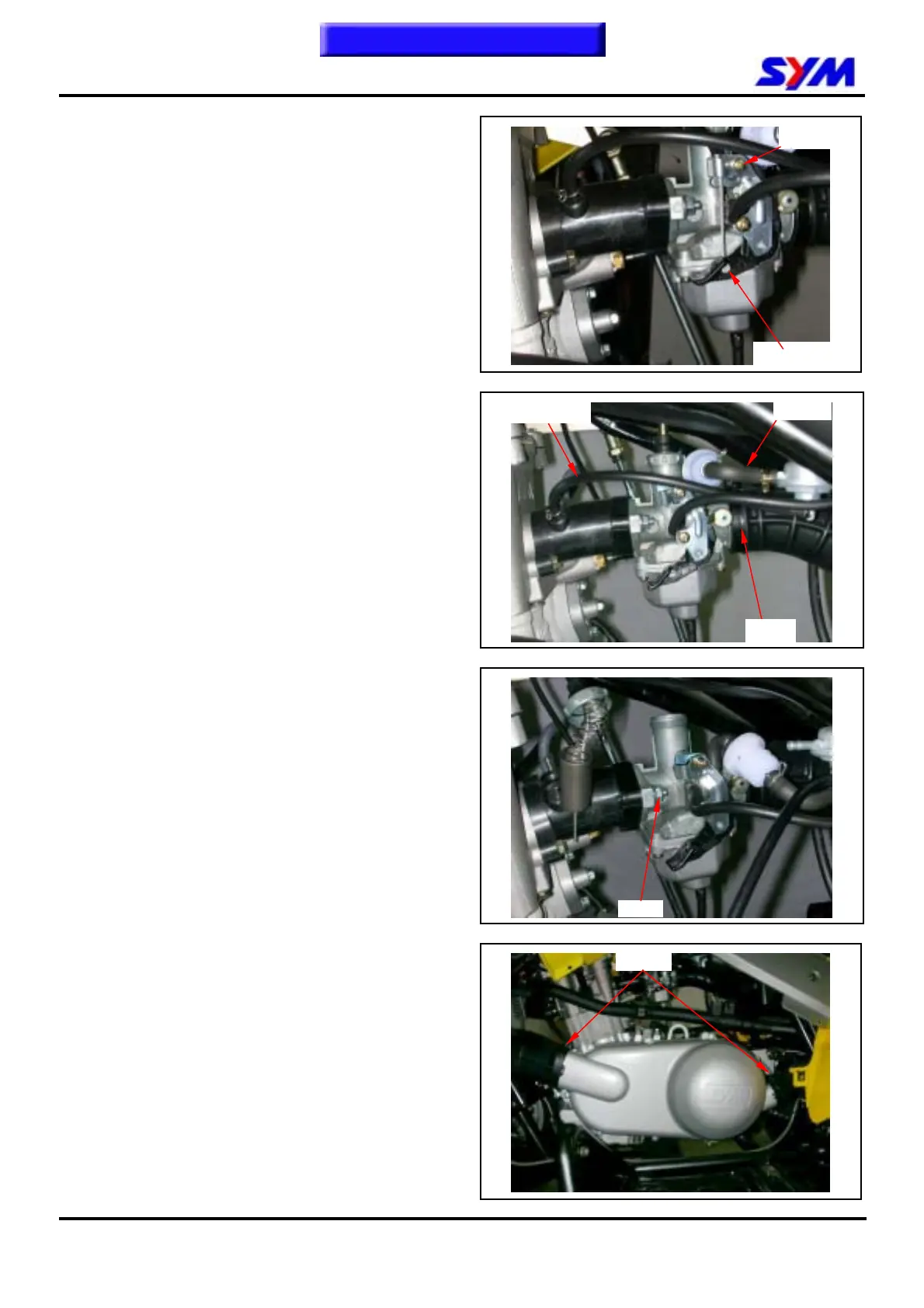

Loosen 1 screw and disconnect the choke cable.
Remove fuel pipe and vacuum pipe.
Release the clamp strip of air cleaner duct.
Disconnect the carburetor upper parts and cable.
Release the 2 nuts of carburetor insulator, and
then remove the carburetor.
Release the clamp strips of left crankcase cover
ducts, and then remove the ducts.
1 screw
Fuel pipe
2 nuts
Clamps
To this chapter contents
Choke cable
Vacuum pipe
Clamp
