7. INSPECTION AND MAINTENANCE BEFORE RIDING
52
Fuse

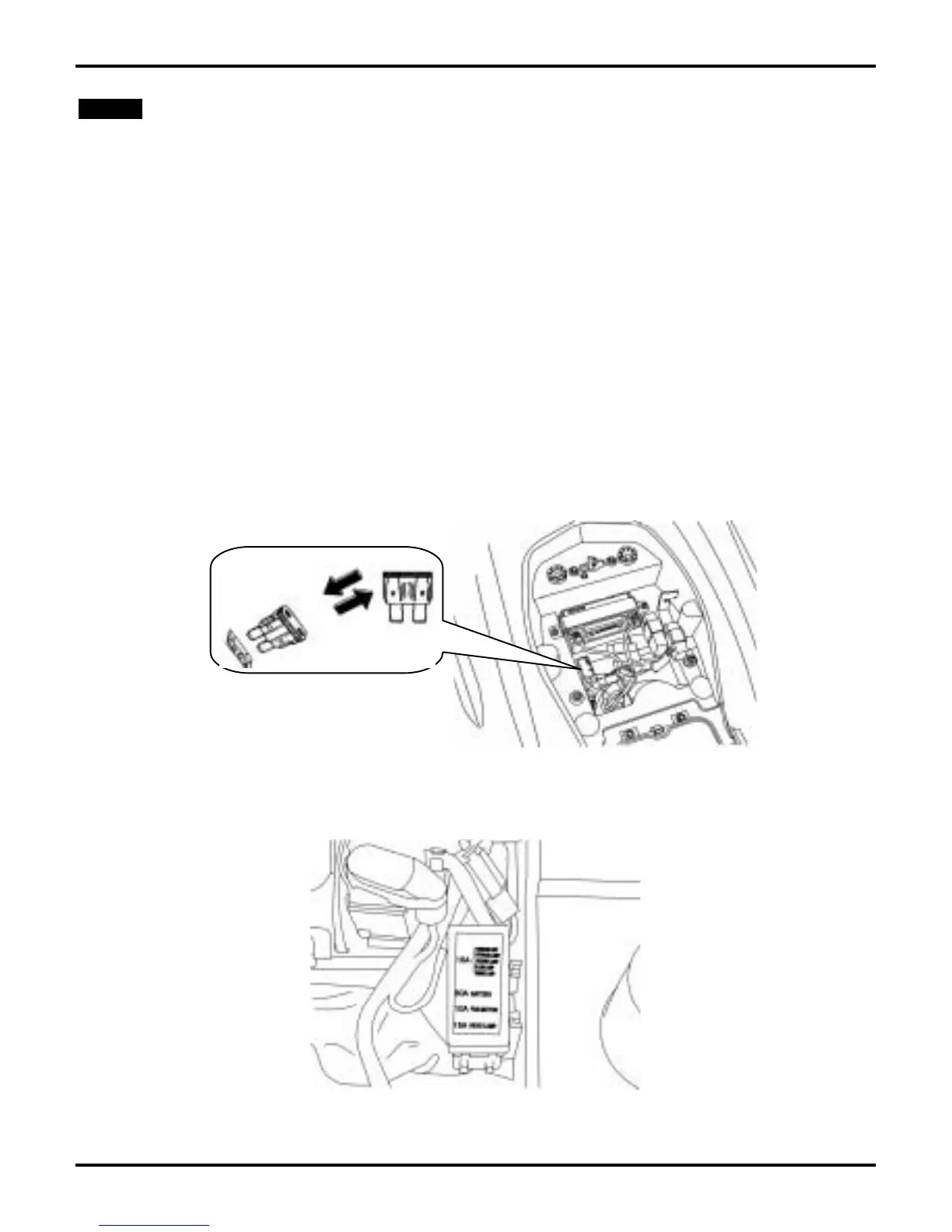

Fuse box is on the frame body, remove the seat then you can see the fuse box is on the
frame body right side. Turn off ignition switch, and check fuses if they are intact. Replace
the blown fuse with a new one having the same specified amperage rating (30A or 15A or
10A). Using a fuse which the amperes is larger than specification, a brass or iron wire to
replace a blown fuse is strictly prohibited to avoid damaging the electrical system and the
circuit.
• Remove the seat, and you’ll find the fuse box near light.
• Open the fuse box cover, and pull out the fuse. Check it for damage or broken.
• Fuses must be firmly secured with wire connectors when replacing. Loose connections will
result in overhead and damage.
• Use only parts having the specified specification to replace electrical components such as
light bulbs. Using parts not having the specified specifications for replacement may cause
the fuse to blow and over-discharge the battery.
• Avoid spraying water directly on or around fuse box when washing the ATV.
• Take your ATV to your dealer for an inspection if a fuse is blown by unknown causes.
