3. Theory of Operation
Functional Block Descriptions
153
Option 048 Schematic Block Diagrams
The following figures 3-6 to 3-8 are the corresponding schematics for an
option 048 instrument.

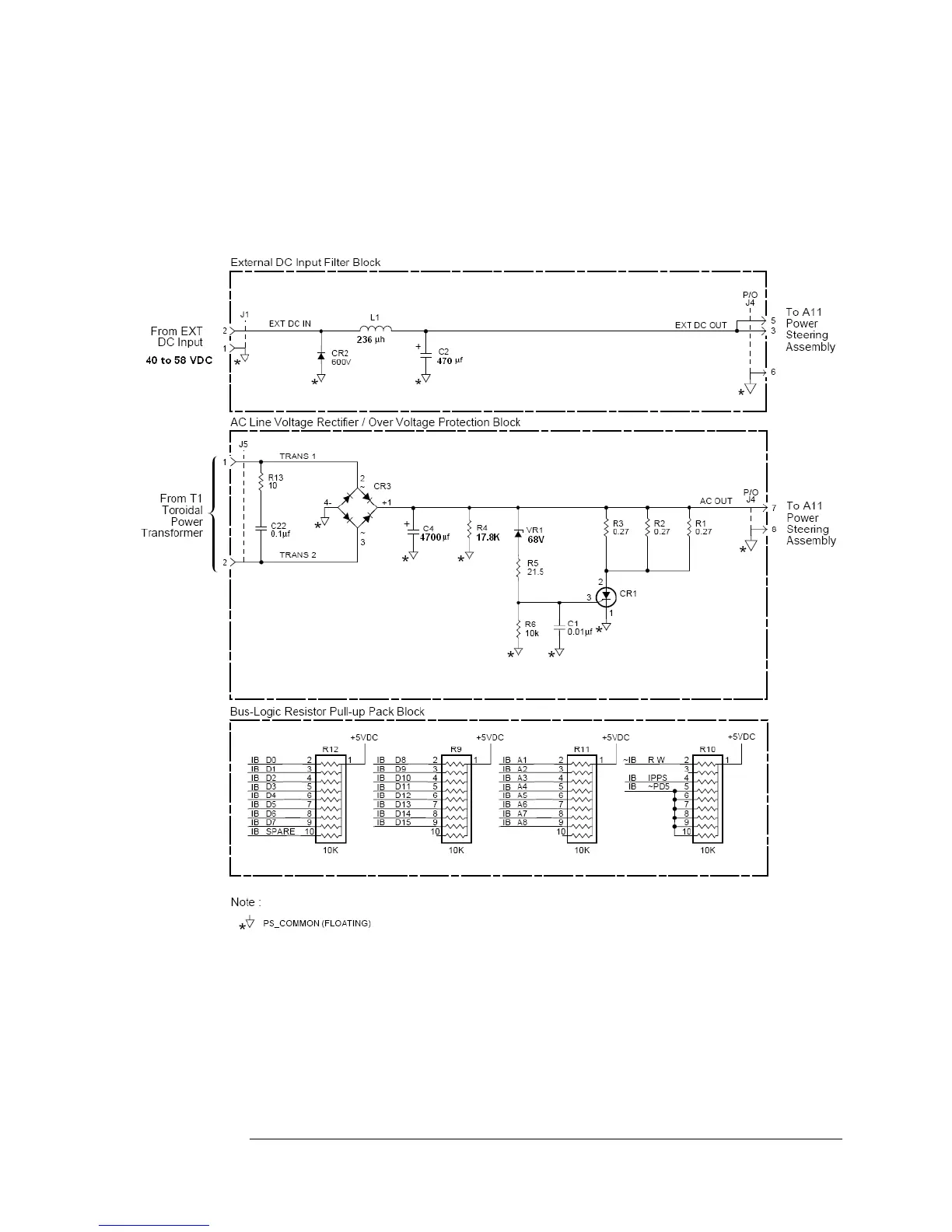

Figure 3-6. Opt. 048, A1 Power Supply/Distribution Schematic Diagram
