CAUTION
For system supervision–DO NOT use looped wire under ter-
minals 2, 3, and 5. Break wire run to provide supervision of
system.

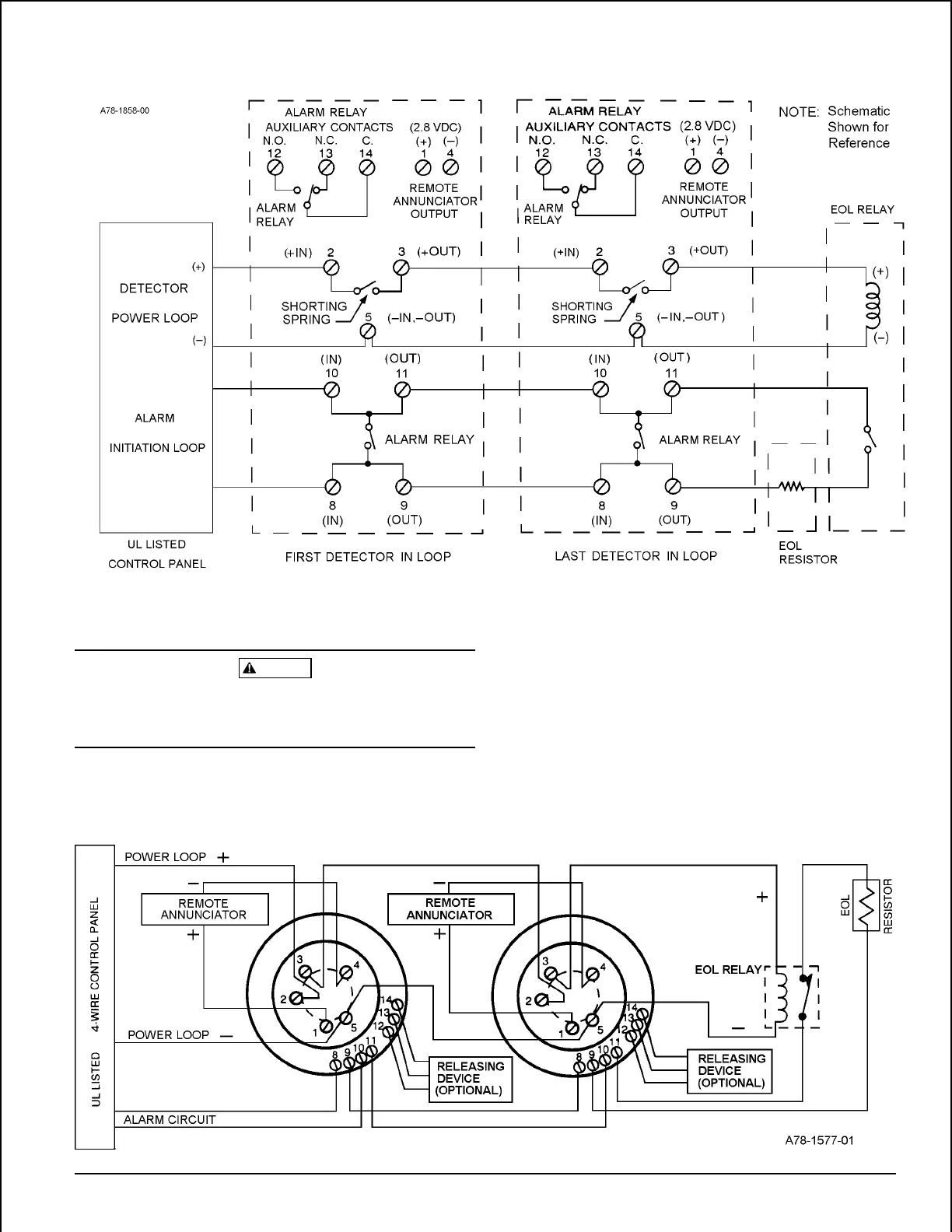

Figure 2. Typical wiring diagram:
NOTE: For wiring or releasing device, refer to
manufacturer's installation instructions.
