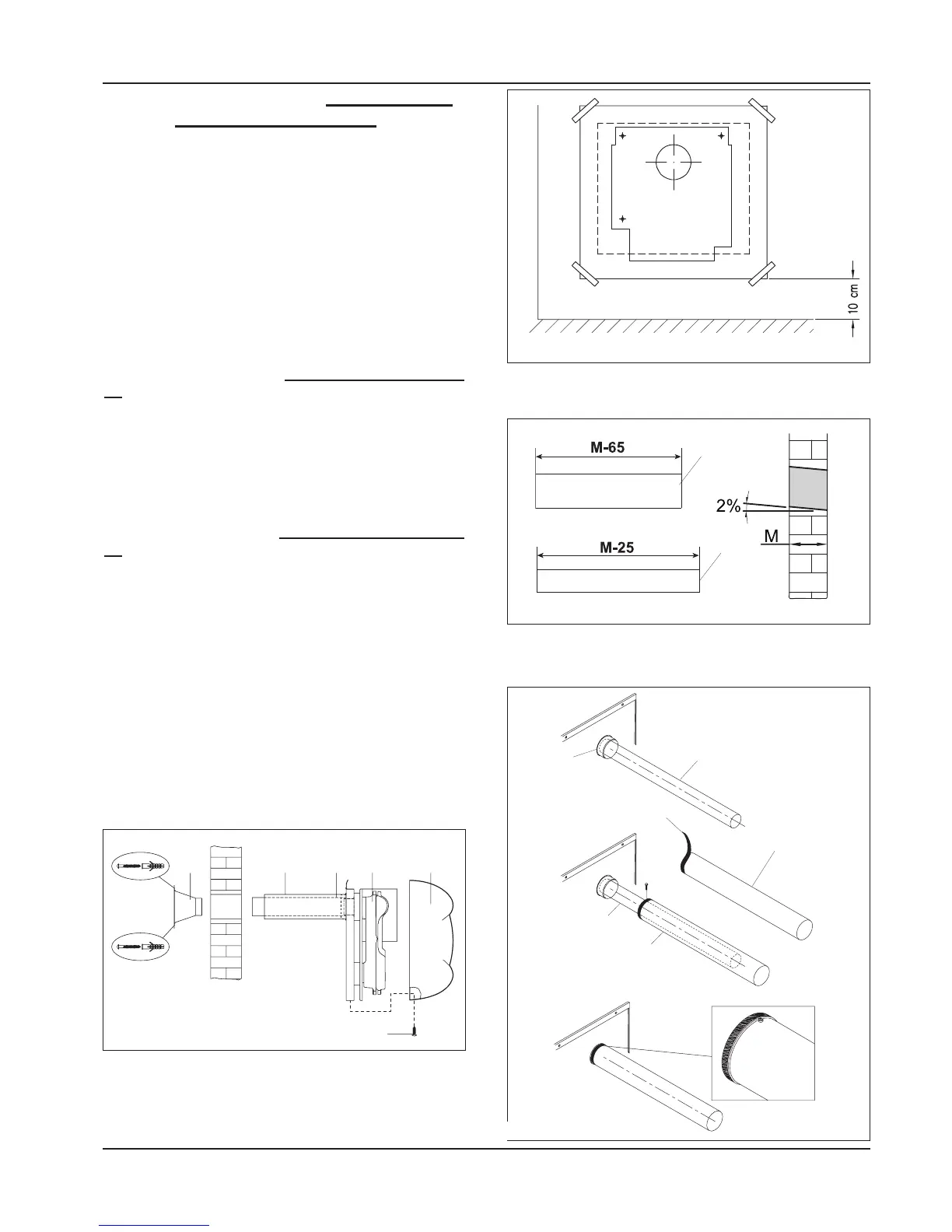

3.2.2 Installation of the forced with gril-
le appliance squared up
For the assembling of the appliance, please follow the
instruction given in the following pages:
1) Place the template on the wall and fix it with adhe-
sive tape at a distance of minimum 10 cm from the
floor perfectly in square (see draw 24). Draw the
hole for the exhaust and, if possible, make it with a
2% inclination outwards the wall (see draw 25).
2) Place the template in square again and be careful
when centring it with the hole for the exhaust, then
make 4 holes of 8 mm in diameter and insert the
inserts given (see draw 24).
Draw 24
GROUND
Draw 27
Cutting pipes exhaust kit forced with grille squared
up
3) When the hole is done, measure the thickness of
the wall (M).
- Cut the suction pipe (8) 65mm shorter than the
thickness of the wall (M) (see draw 25).
- Cut the exhaust pipe (6) 25mm shorter than the
thickness of the wall (M) (see draw 25).
Assembling exhaust kit forced with grille squared
up
4) 4) Remove the shell (1) after having unloosing the
fixing screws (2) (see draw 27)
5) Thread up the fumes pipe (6) in the internal collar
of the air box (see draw 27)
6) Thread up the gasket (Y) on the suction pipe (8)
(see draw 26)
- Fix the pipe (8) on the small collar (A) of the air box
with the supplied screws (see draw 26)
7) Place the convector (4) (draw 27) on the wall next
to the hole done before, then fix it with the supplied
screws.
8) Couple the template very closed to the wall (3)
(draw 27) from the outside and fix it with the inserts
supplied.
