58 systemair

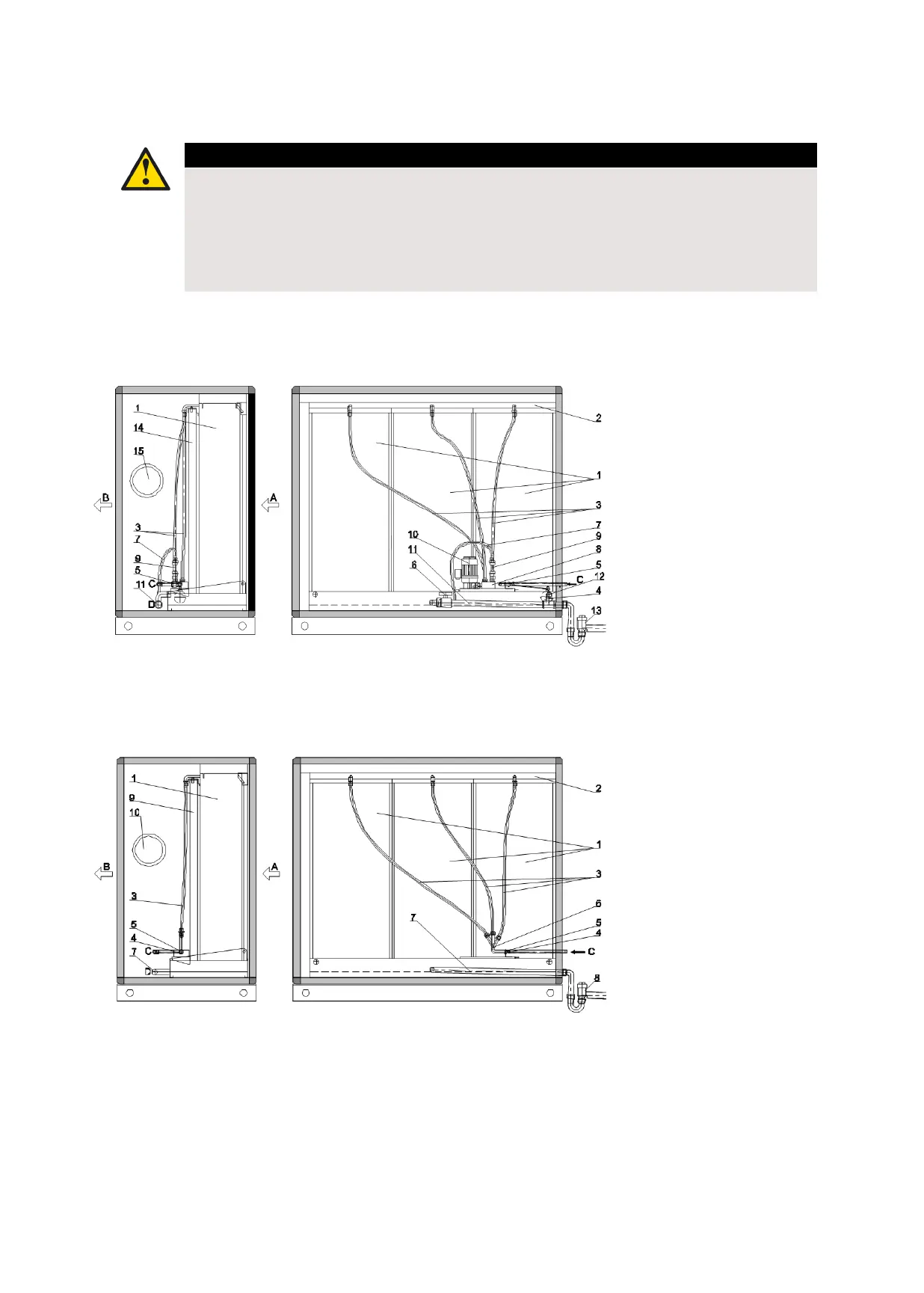

3.9.2 Honeycomb humidier
Caution
See also section 3.1 General instructions.
Connection, commissioning and maintenance to be carried out according to the manufacturer‘s
instructions.
Be sure to install a properly sized siphon on the drain pipe to collect and drain the condensate.
Instructions for the construction, installation and connection are given in section 2.3.5 – Connection of
siphon.
Humidier with circulating water
Humidier with direct water
Water consumption
Circulating water system:
The total water consumption is the sum of the absorbed water (E) and the bleed-off water (O).
Waterbleed-offisnecessarytomaintainappropriatemineralandsaltcontentlevelsinthehumidiersectionreservoir
water.
1 Moisturising panels
2 Waterdividingprole
3 Water distribution pipes
4 Float
5 Float switch
6 Drain valve
7 Calving pipe
8 Water dividing module
9 Drainagecontrolvalve
10 Water pump
11 Water drainage pipe
12 Overowdrainage
13 Sihon
14 Dropleteliminator
15 Inspectionwindow
A Supply air B Moist air C Water supply D Waste water drainage
1 Moisturising panels
2 Waterdividingprole
3 Water distribution pipes
4 Water dividing module
5 Constantowregulationvalve
6 Water dividing module
7 Water drainage pipe
8 Siphon
9 Dropleteliminator
10 Inspectionwindow
A Supply air B Moist air C Water supply D Waste water drainage
