T-Mobile High-Speed Internet Gateway User Guide [Issue 4.0]
Page 12
Need help? Visit http://isp.t-mobile.com/support
or call T-Mobile customer service at 1-844-275-9310
The start up sequence is complete when the LCD shows:
• CONNECTION
• up to five bars, indicating signal strength
• six small dots, indicating available screens
Take a moment to swipe between these screens to see what information
is available; also refer to the section Understanding the LCD.
Connecting devices
Connecting Wi-Fi devices
Connect your wireless devices to your network using the WiFi SSID
(network name) and WiFi Key (network password), which are found on

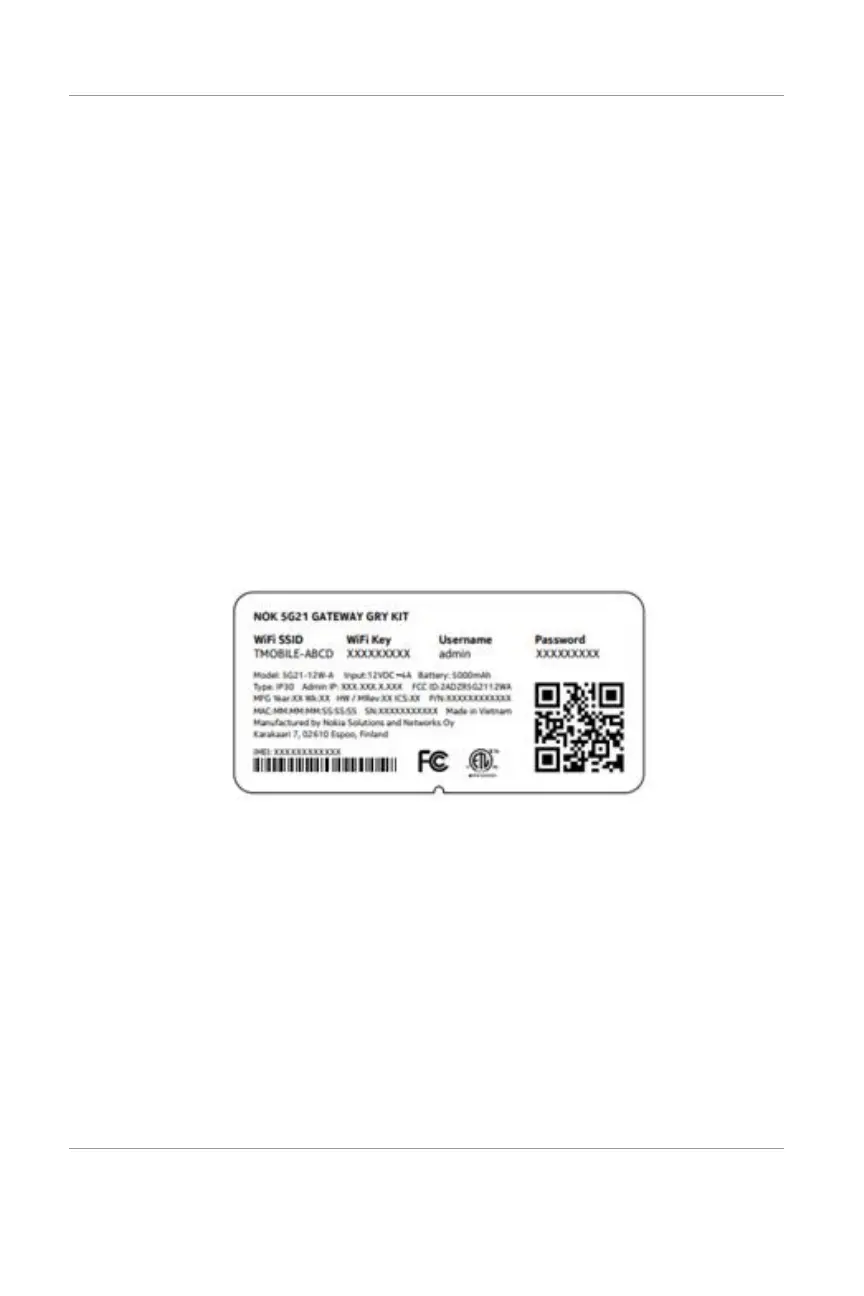

the gateway's underside. Here is an example of the label:
The Username and Password credentials are for logging into the
gateway's web GUI.
Connecting Ethernet devices
The gateway has two (2) Gigabit Ethernet LAN ports. Use an Ethernet
cable to connect devices that don't have Wi-Fi adapters or capabilities.
