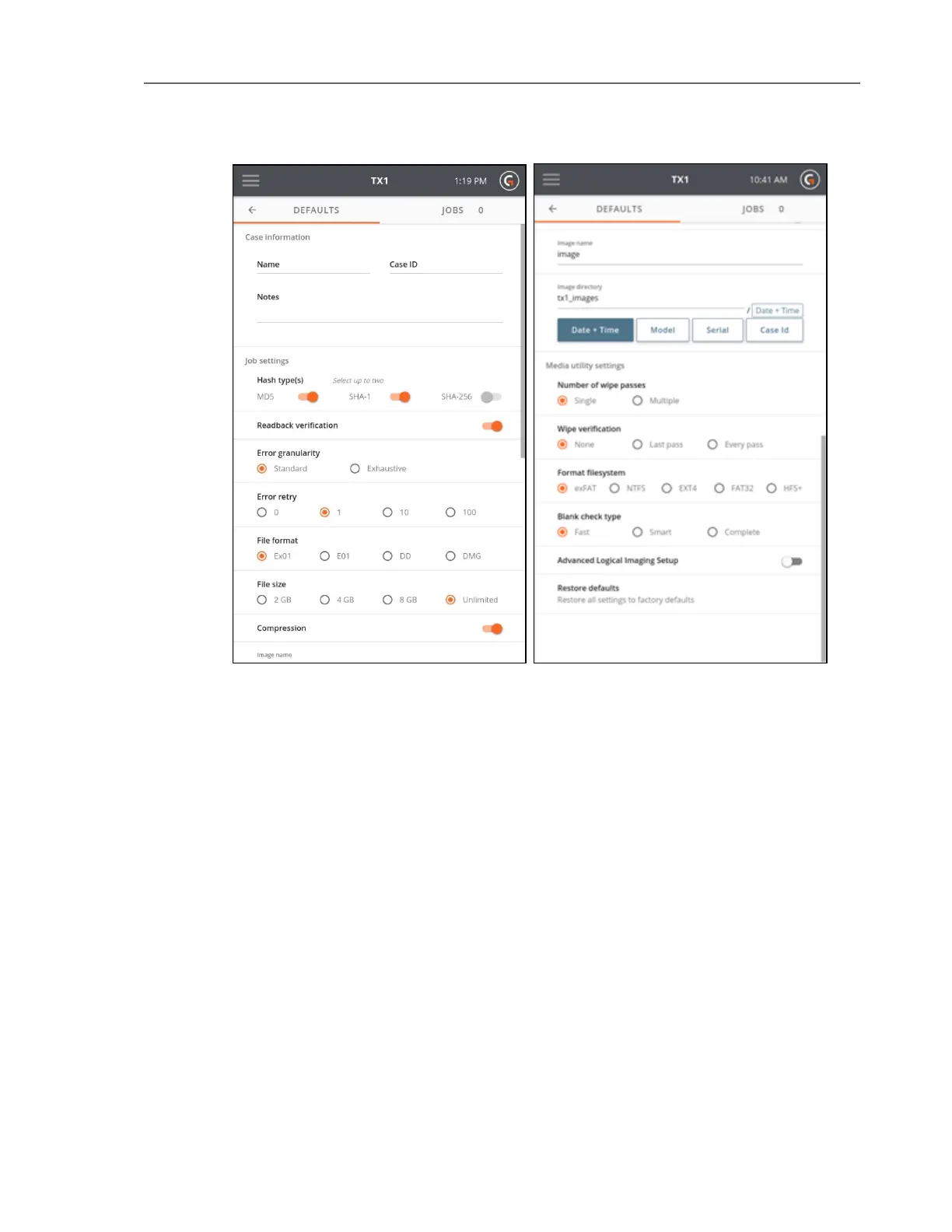

This page has several settings: incorporating direct data entry, sliders, radio buttons, and an
Image Directory name builder section. As shown above, the Date + Time and Model directory
path element boxes have been selected (in that order), so therefore the image directory path is
tx1_images/<Date+Time>/<Source Drive Model #>.
Note: The Source Drive Serial # and Case ID are not used in this example.
Tapping a selected directory path variable box deselects it. Changing the order of selection
changes the order in which each element is incorporated into the image directory path.
Note: Certain combinations of image directory and image name settings can result
in filename duplication on the destination filesystem for a given job. The TX1 checks
for this situation at job startup and, if it detects a file name conflict, it automatically
appends sequential numbers to the subsequent filenames, as shown in the file
browse example below. Though this feature exists, it is recommended that the image
directory and image name values be set such that no conflicts occur.
28 Tableau TX1 User Guide Version 2.0
