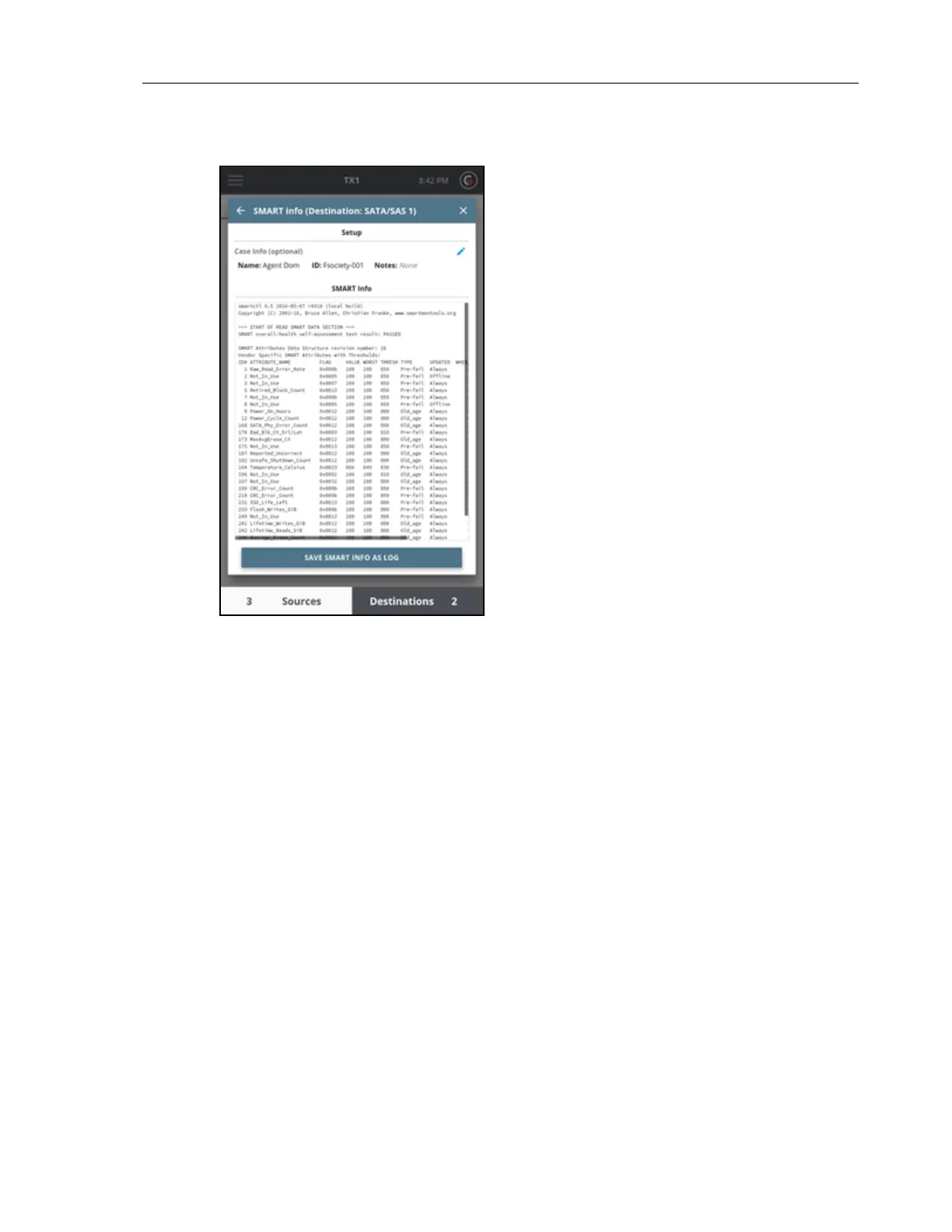

This information can be annotated with case info and saved as a log.
Export
This Media Utility allows the user to securely export any source, accessory, or destination drive
as an iSCSI target. This makes the drive available to a remote user on any IP-based network
(LAN/WAN/internet) via the Ethernet connection on the rear of the TX1.
During the export process, the TX1 will assign a unique IQN (iSCSI Qualified Name) to each
exported drive. This IQN is used by the remote initiator to gain access to the exported media.
The following is an example of an IQN produced by the TX1 from exportation of a locally
connected SATA drive: iqn.2015-10.com.guid:sn-000ecc5801000c.sata.1.
The breakdown of this number is as follows:
CHAPTER 4 Using the TX1 103
