TB9100 Calibration Software User’s Manual Calibrating the Reciter 23

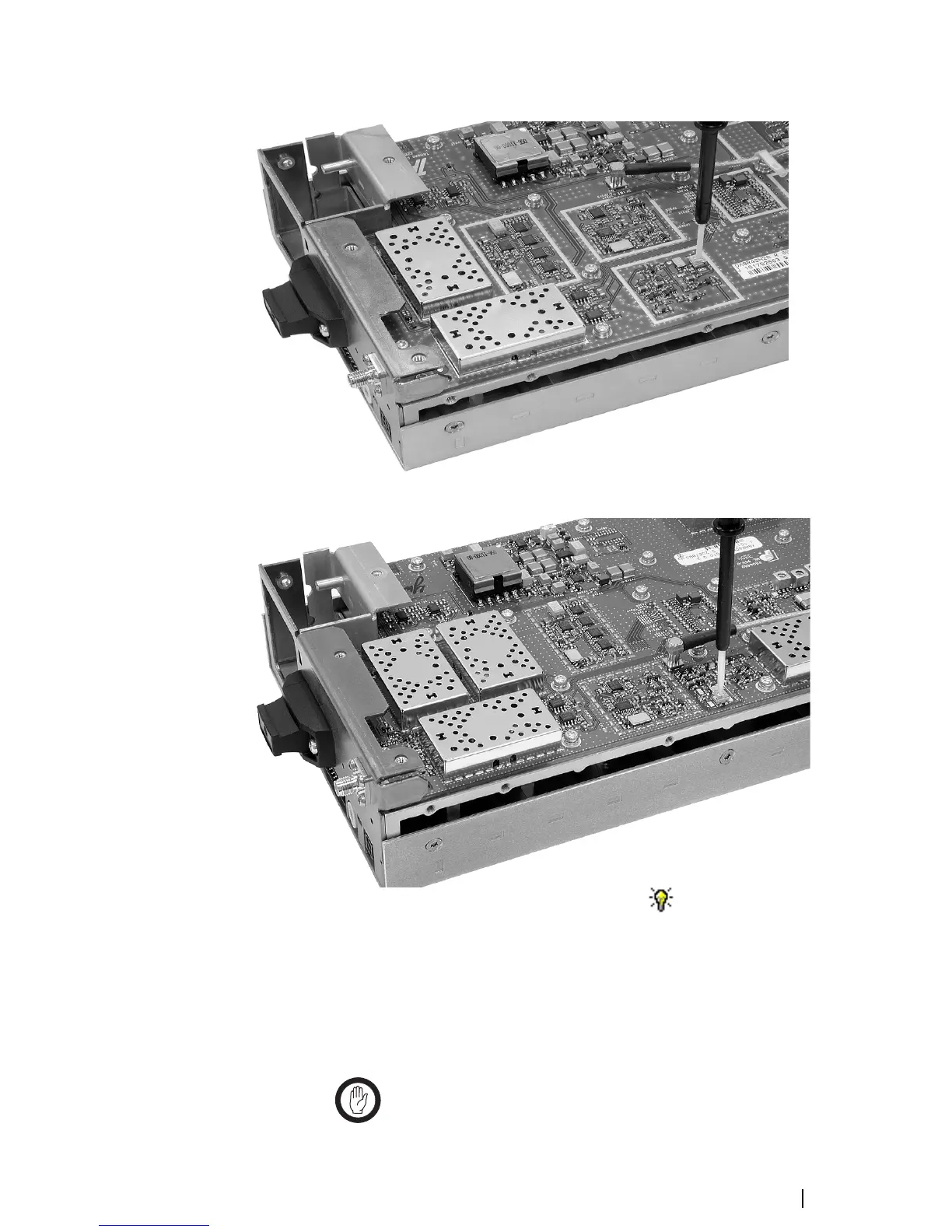

The following shows where the tuning control is located on K-band
reciters:
7. Click Finish. Transmission ceases and the icon on the Reciter
Calibration tab indicates that this task is complete.
8. Replace the reciter RF cover, as follows.
a. Slide the cover into place over the front and rear panels. Make sure the
holes in the cover line up with the threaded holes in the heatsink and
front and rear panels.
b. Press the cover firmly into place and screw in the M3 Torx screws, first
on the flat face, then on the edge face.
Important: Excessively tightening the screws can damage the thread
of the aluminium heatsink. Tait recommends that you use a T10
torque driver set to 0.5 Newton meters (4.5 lbf.in).
