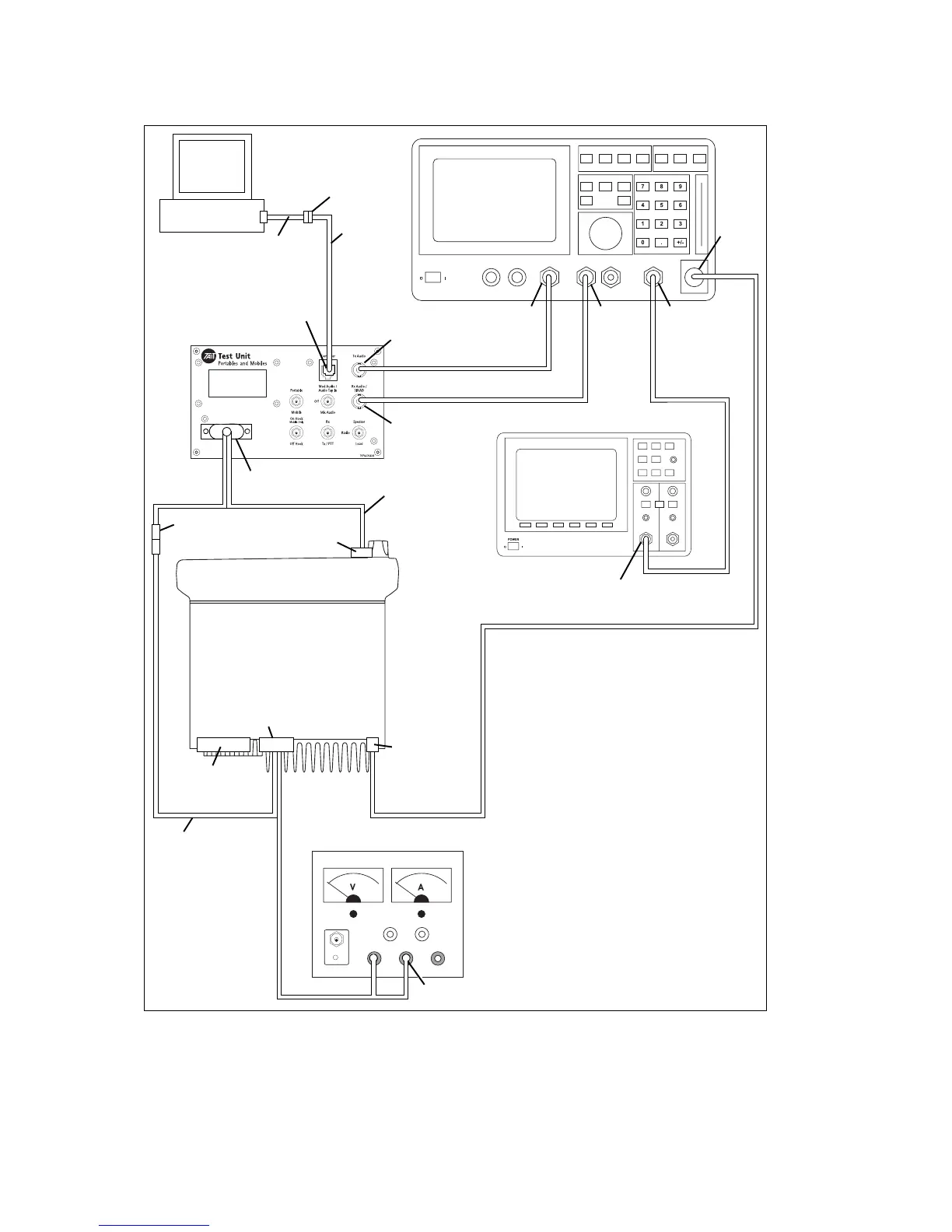

Figure 4.2 Test setup
radio connector
(DB15)
RF connector
(mini UHF or
BNC)
auxiliary
connector
(DB15)
microphone
connector (RJ45)
receive audio /
SINAD connector
(BNC)
transmit audio
connector (BNC)
computer
connector
(RJ12)
serial port
(DB9)
speaker
connector
banana plugs
AC input
(BNC)
audio
monitor
out (BNC)
AUDIO
IN HI
(BNC)
AUDIO
OUT
(BNC)
RF in/out
(N-type)
power
connector
TMAA23-02 cable
(>25W radios)
TMAA20-03 cable
(25W radios)
TMAA21-01 cable
TOPA-SV-024
TPA-SV-006
cable
radio
T950-001
USB1.1 to serial
DB9 adapter
(optional)
RF comms set
Test PC
Oscilloscope
DC power supply
