33.3 Interface Specification
The following table and diagram summarizes the signals used for the handset
on the radio’s microphone connector and shows the interface between the
handset and the radio.
.
Table 33.5 Handset microphone connector—pins and signals
Pin Signal
Handset PCB
Connector
Colour Description
1 RX_AUD 8 brown receive audio to handset
2 — — — not connected
3 — — — not connected
4 PTT 2 white PTT and hookswitch
5 MIC 9 yellow audio from the handset to dynamic-mic
support board
6 GND 10 green analogue ground
7 — — — not connected
8 CH_GPIO1 3 blue programmable line controlling private mode

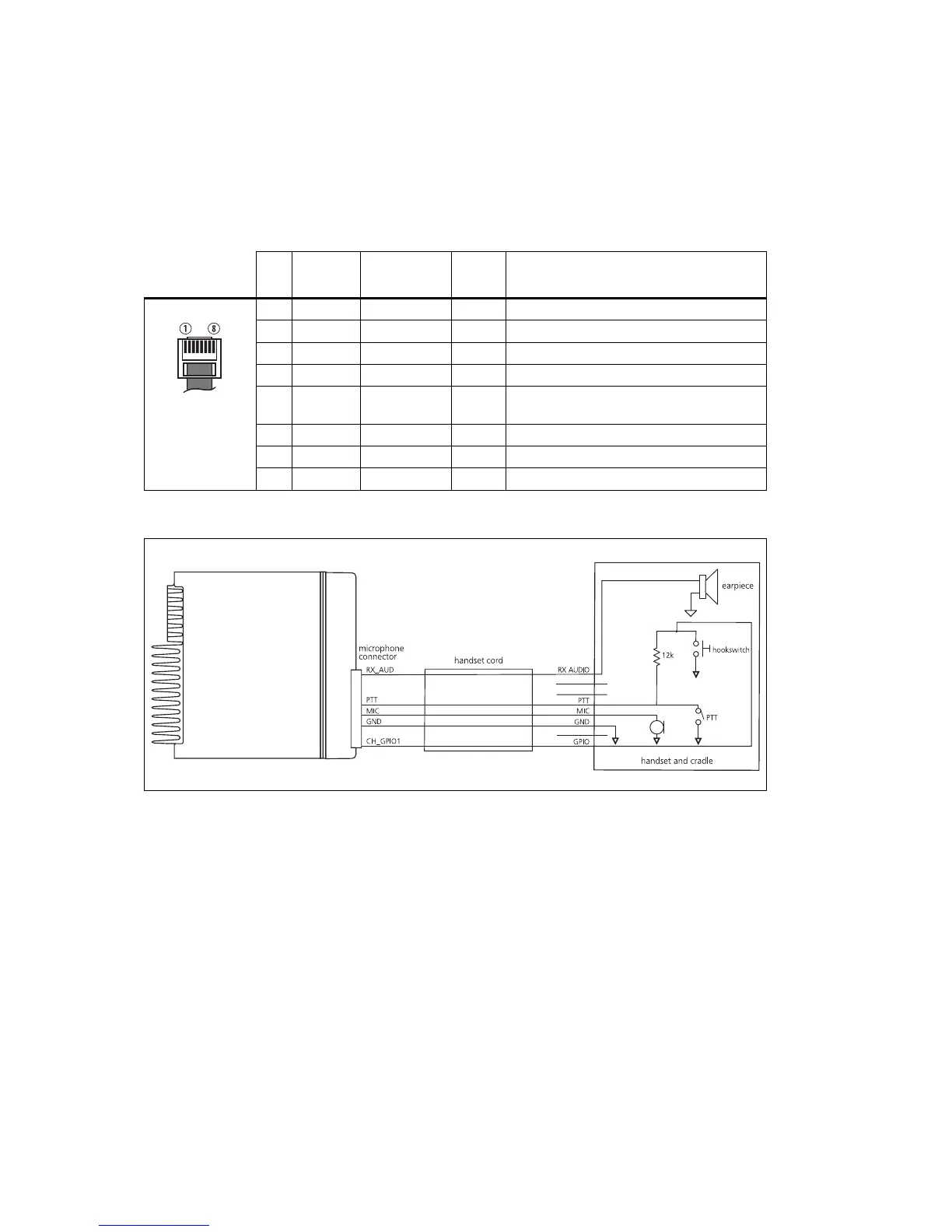

Figure 33.2 Handset to radio interface
