31.6 PCB Information
31.6.1 TMAA04-06 Parts List (PCB IPN 220-01755-01)

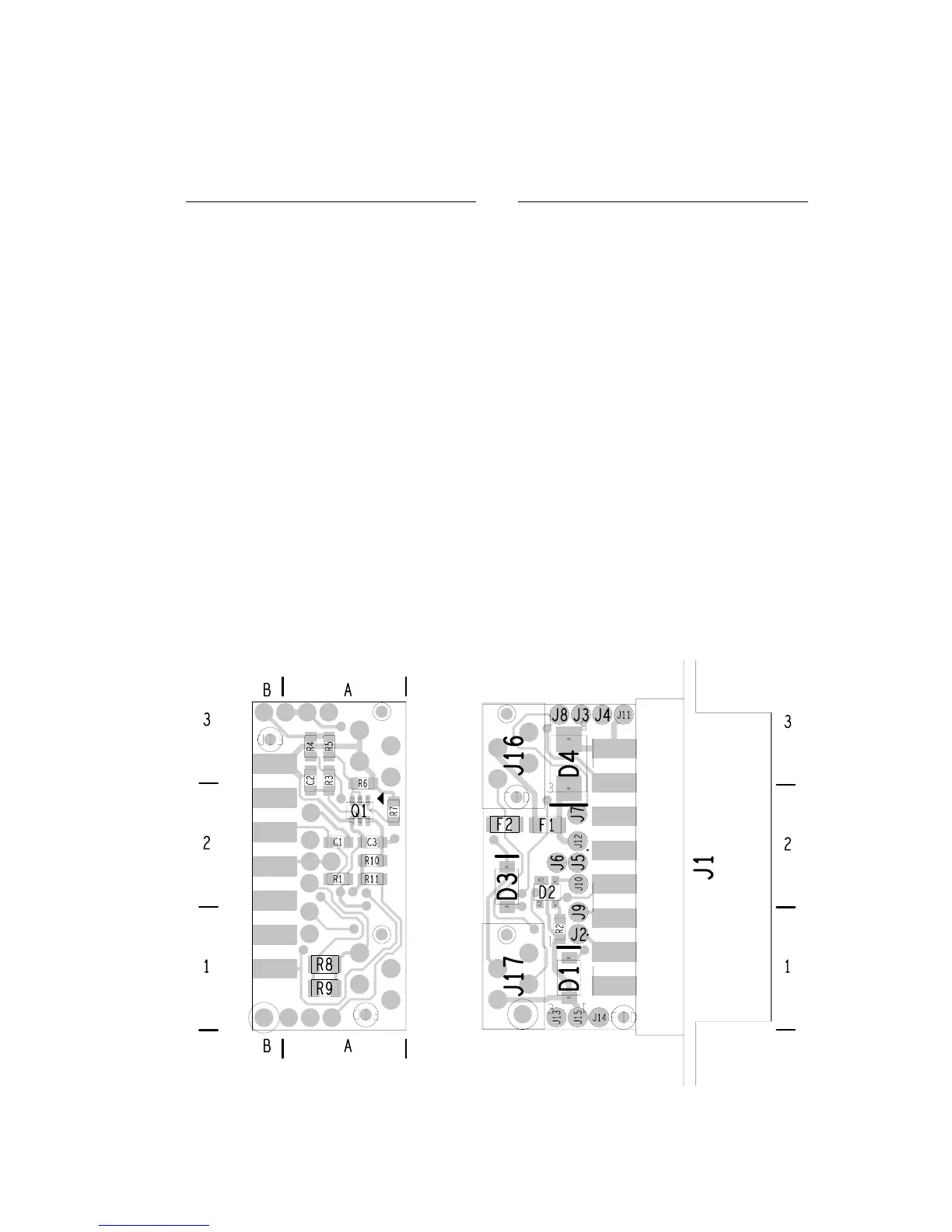

31.6.2 Linking and Interface Cable Board Layouts
Ref. IPN Description Ref. IPN Description
219-03081-00 CBL assy TMA X-Band GPS Ign
369-00010-27 CBL tie nyl 140x3.2mm
Primary auxiliary connector
C1 018-16100-00 CAP 100n 16V ±10% 0603 X7R
C2 018-14101-00 CAP 1n 50V NPO ±5% 0603
C3 018-15100-00 CAP 10n 50V ±10% 0603 X7R
D1 001-10100-00 DIODE SMF10A TVS 10V SOD123FL
D2 001-10070-07 DIODE BAS70-07W dual SOT343
D3 001-10280-00 DIODE SMF28A TVS 28V SOD123FL
D4 001-10011-74 DIODE MRA4004T3 1A/400V
F1 265-10026-00 FUSE 0805 800mA 50V
F2
1
265-10026-00 FUSE 0805 800mA 50V
Q1 000-10084-72 XSTR BC847BS NPN Dual SOT363
R1 038-13560-10 RES 0603 560R 1% 1/10W
R3 038-12820-00 RES 0603 82R 5% 1/10W
R4 038-15470-10 RES 0603 47k 1% 1/10W
R5 038-15330-10 RES 0603 33k 1% 1/10W
R6 038-14680-10 RES 0603 6k8 1% 1/10W
R7 038-13120-00 RES 0603 120R 5% 1/10W
R9 036-14680-10 RES 0805 6k8 1% 1/8W
R11 038-10000-00 RES 0603 0R 5% 1/10W
SA 938-10001-01 SMT Alloy Lead Free (sac)
220-01755-01 PCB cross-bnd extnl-I/F cbl
Secondary auxiliary connector
C1 018-16100-00 CAP 100n 16V ±10% 0603 X7R
C2 018-14101-00 CAP 1n 50V NPO ±5% 0603
C3 018-15100-00 CAP 10n 50V ±10% 0603 X7R
D1 001-10100-00 DIODE SMF10A TVS 10V SOD123FL
D3 001-10280-00 DIODE SMF28A TVS 28V SOD123FL
D4 001-10011-74 DIODE MRA4004T3 1A/400V
F1 036-10000-00 RES 0805 0R 1/8W
Q1 000-10084-72 XSTR BC847BS NPN Dual SOT363
R1 038-13560-10 RES 0603 560R 1% 1/10W
R2 038-14120-10 RES 0603 1k2 1% 1/10W
R3 038-12820-00 RES 0603 82R 5% 1/10W
R4 038-15470-10 RES 0603 47k 1% 1/10W
R5 038-15330-10 RES 0603 33k 1% 1/10W
R6 038-14680-10 RES 0603 6k8 1% 1/10W
R7 038-13120-00 RES 0603 120R 5% 1/10W
R8 036-14560-10 RES 0805 5k6 1% 1/8W
R9 036-14560-10 RES 0805 5k6 1% 1/8W
R10 038-10000-00 RES 0603 0R 5% 1/10W
R11 038-10000-00 RES 0603 0R 5% 1/10W
SA 938-10001-01 SMT Alloy Lead Free (sac)
220-01755-01 PCB cross-bnd extnl-I/F cbl
1. F2 is a spare fuse.
IPN 220-01755-01
