26.2 Circuit Description
Figure 26.3 shows a block diagram of the remote control-head installation.
Both control heads contain a circuit board with audio amplifiers and RS-
485 driver components.

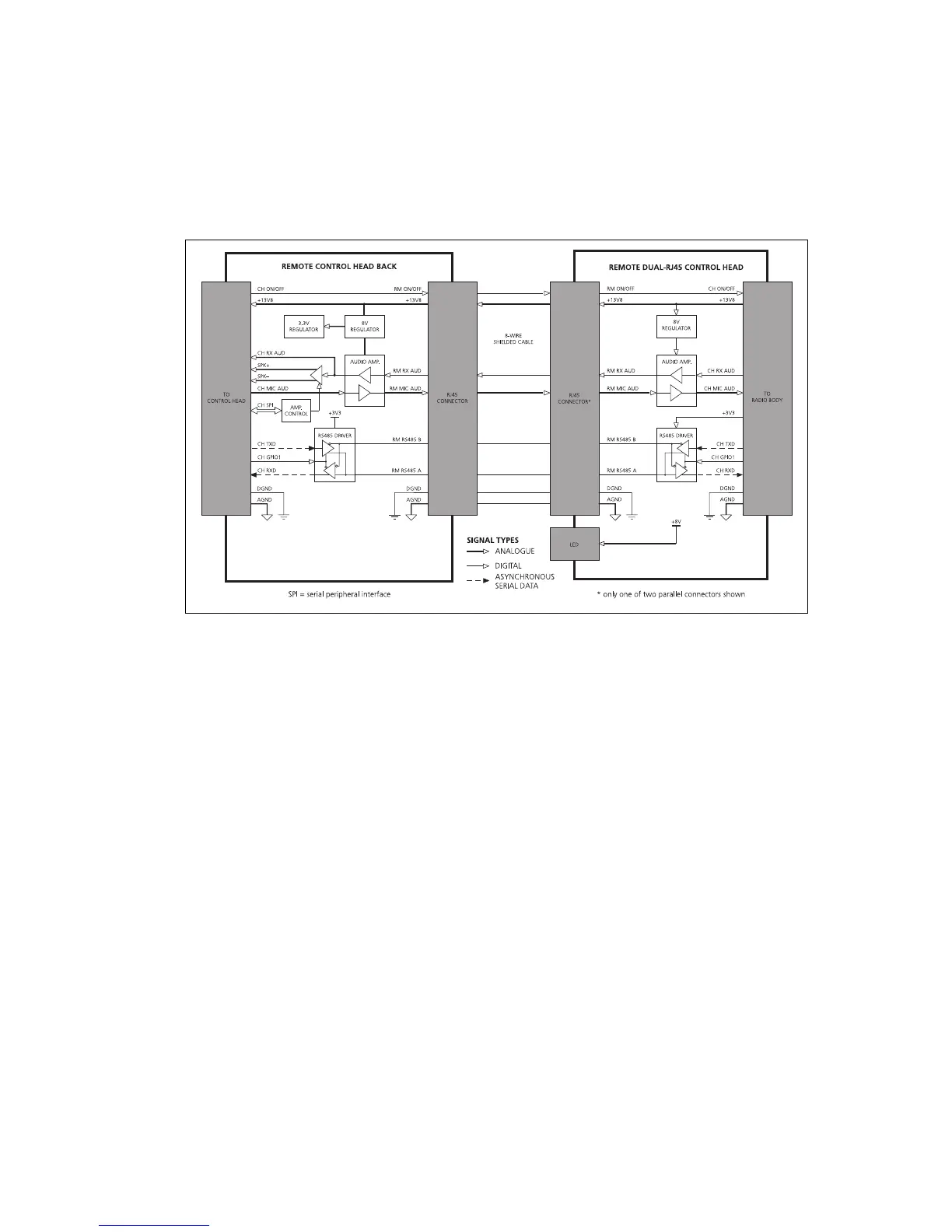

Figure 26.3 Block diagram of remote control-head installation
