TM8100/TM8200 Service Manual Receiver Fault Finding 251
© Tait Electronics Limited November 2007

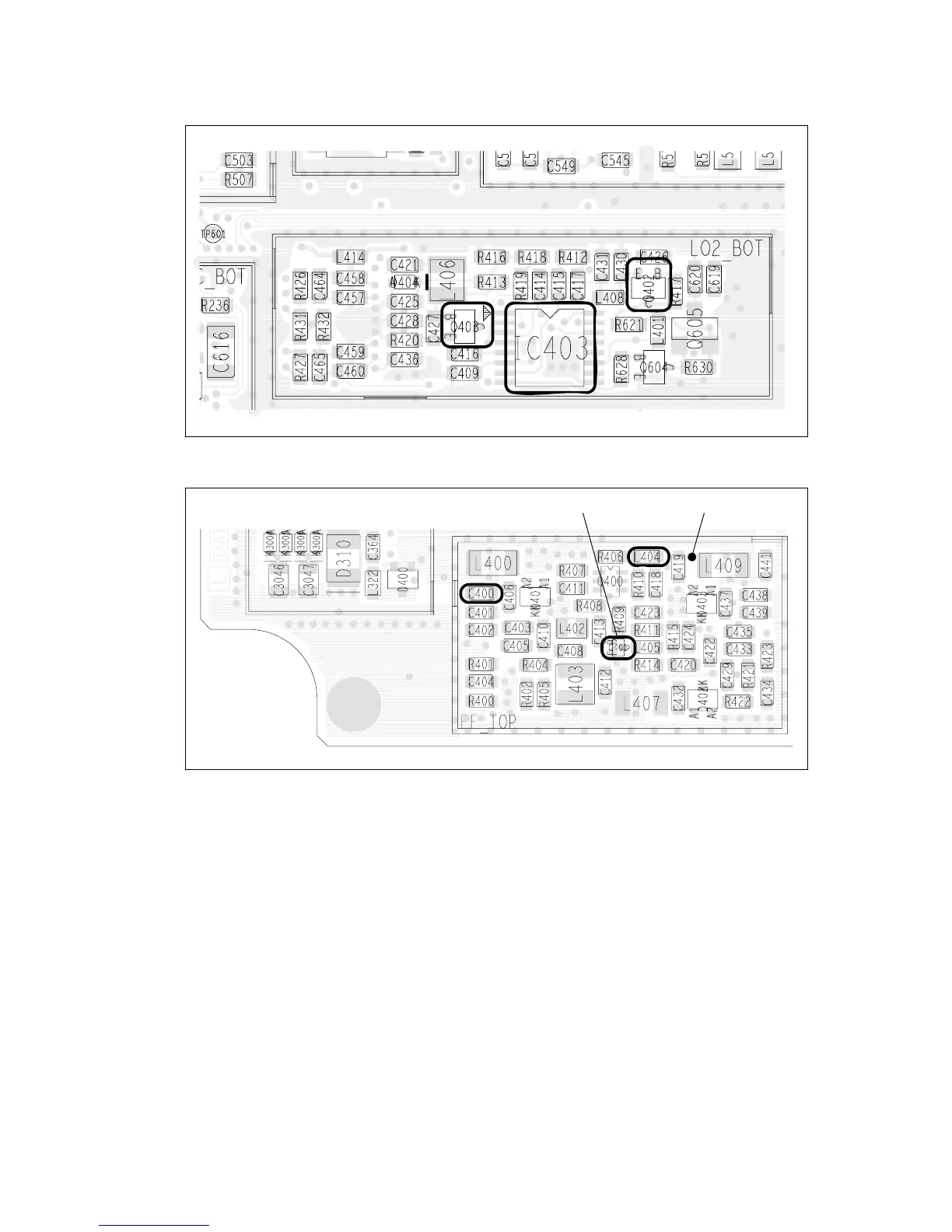

Figure 10.2 Receiver circuitry under the LO2 BOT can (UHF shown)
Figure 10.3 Receiver circuitry under the FE TOP can (top side) (all bands except K5)
Measurement pointQ401
