Tait TM8100 mobiles - Page 39

TM8100/TM8200 Service Manual Description 39
© Tait Electronics Limited November 2007

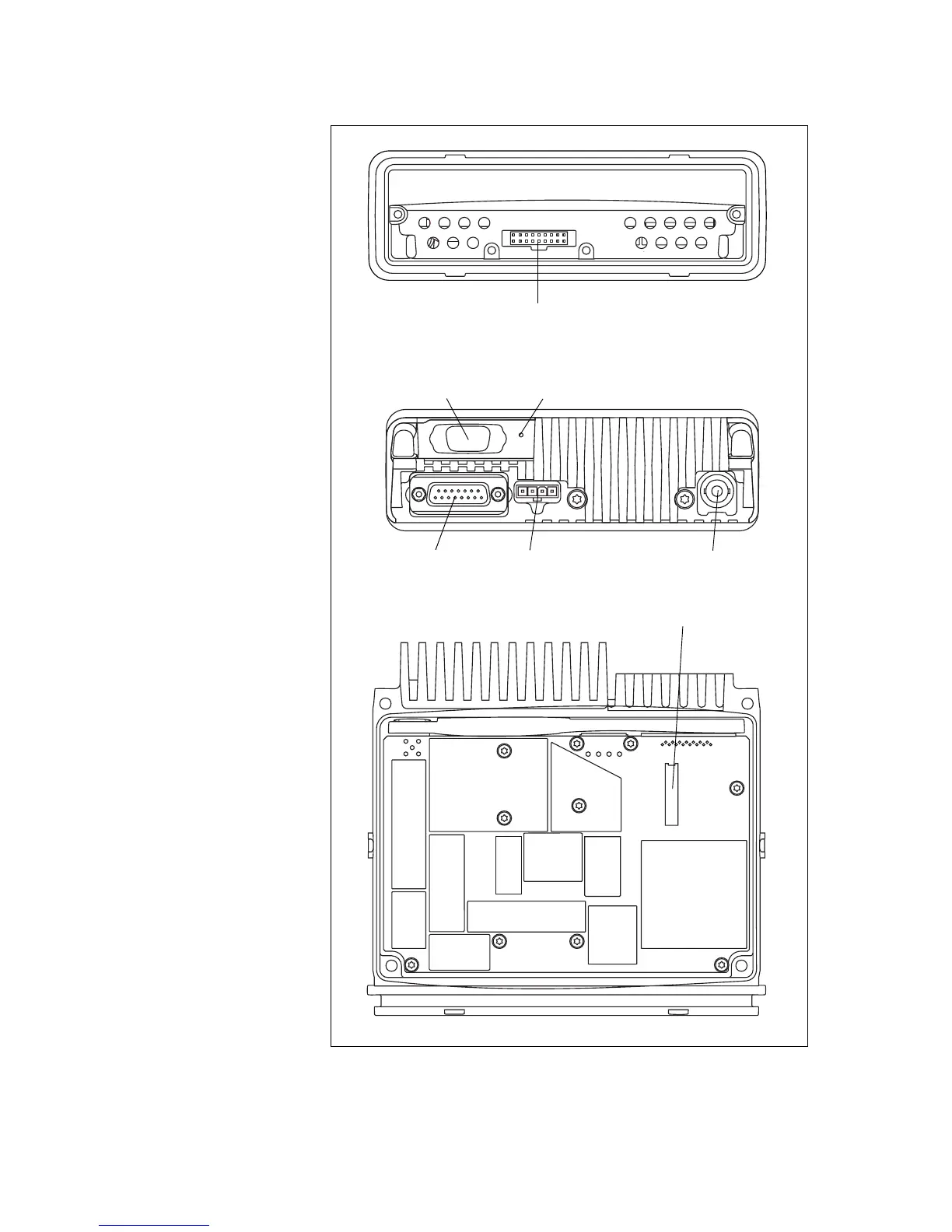

Figure 2.11 Connectors of the radio body (25W radio)
control-head
connector
provision for
external options
connector
provision for
additional
connector
power
connector
auxiliary
connector
RF
connector
internal options
connector
rear view
front view
top view
