TM8100/TM8200 Installation Guide Installing the Radio 21
© Tait Limited November 2012
Notice Do not install the fuses until the installation is ready to be
checked. For more information, refer to "Checking the Installation" on
page 29.
5. Insert each end of the negative wire into each of the fuse
crimp-terminals and crimp them to force the metal contacts onto
the wires.
6. Push the two crimp-terminals into the clear plastic fuse cover. Close
the cover while the next steps are completed.
7. Repeat steps 5 and 6 for the positive wire.
8. Connect the negative wire to the battery ground terminal.
9. Connect the positive wire to the battery positive terminal.
Notice Do not install the fuses until the installation is ready to be
checked. For more information, refer to "Checking the Installation" on
page 29.
3.6 Connecting a Remote Speaker

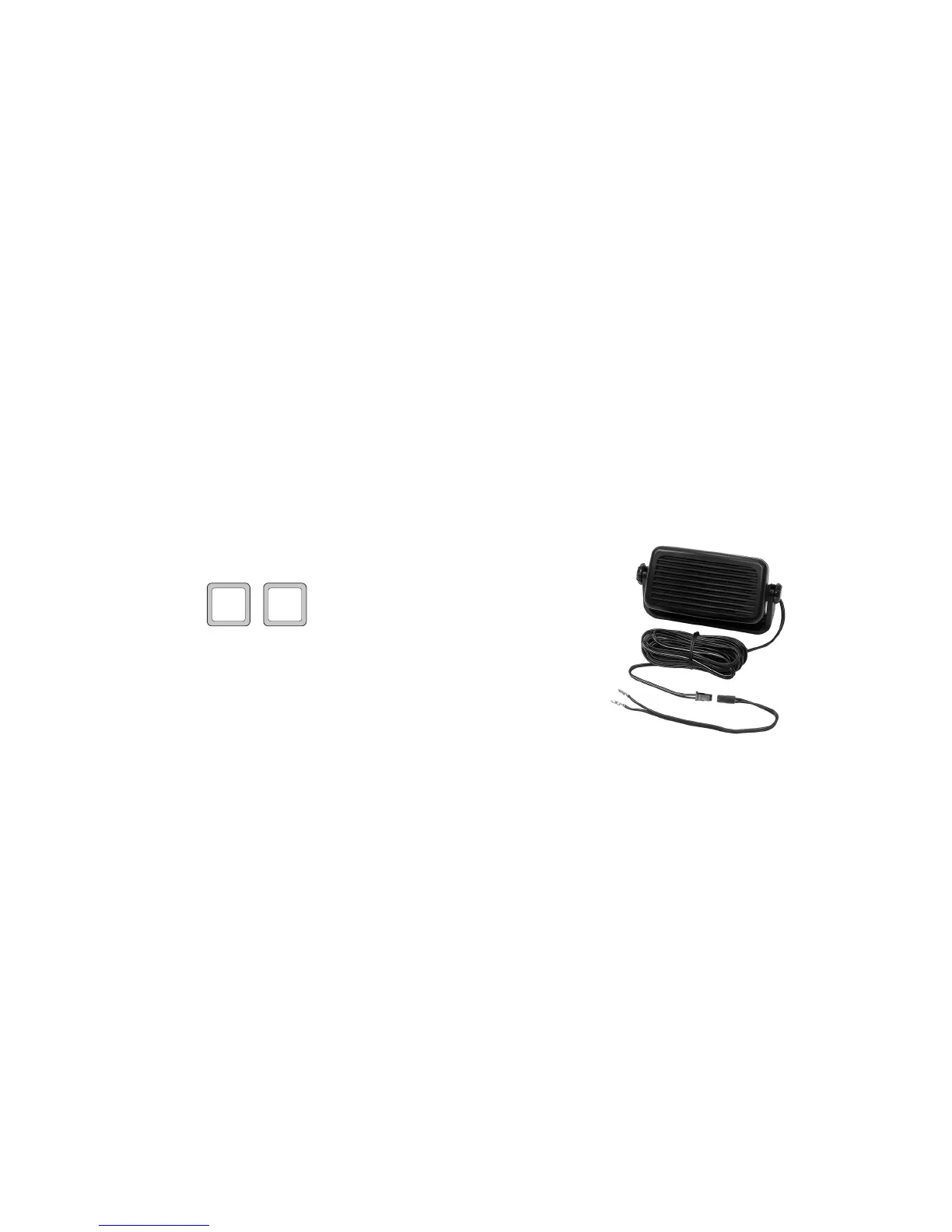

If a high-power remote speaker is
required, Tait recommends using:
■ TMAA10-06 high-power remote
speaker for >25W radios
■ TMAA10-03 high-power remote
speaker for 25W radios
The remote speaker is installed in
parallel with the radio’s existing
internal speaker. It can be installed at
some distance from the radio, or it can
be used to increase the volume of the audio from the radio’s existing internal
speaker.
If a different speaker is used, receptacles for the speaker pins of the power
connector are provided with the installation kit.
■ Connect the speaker to pins 2 (SPK–) and 3 (SPK+) of the power
connector described on page 19.
For more information, refer to the installation instructions provided with
the speaker, or to the relevant section of the service manual.
