Tait TM8100 Installation Guide

34 Installation Options TM8100/TM8200 Installation Guide
© Tait Limited November 2012

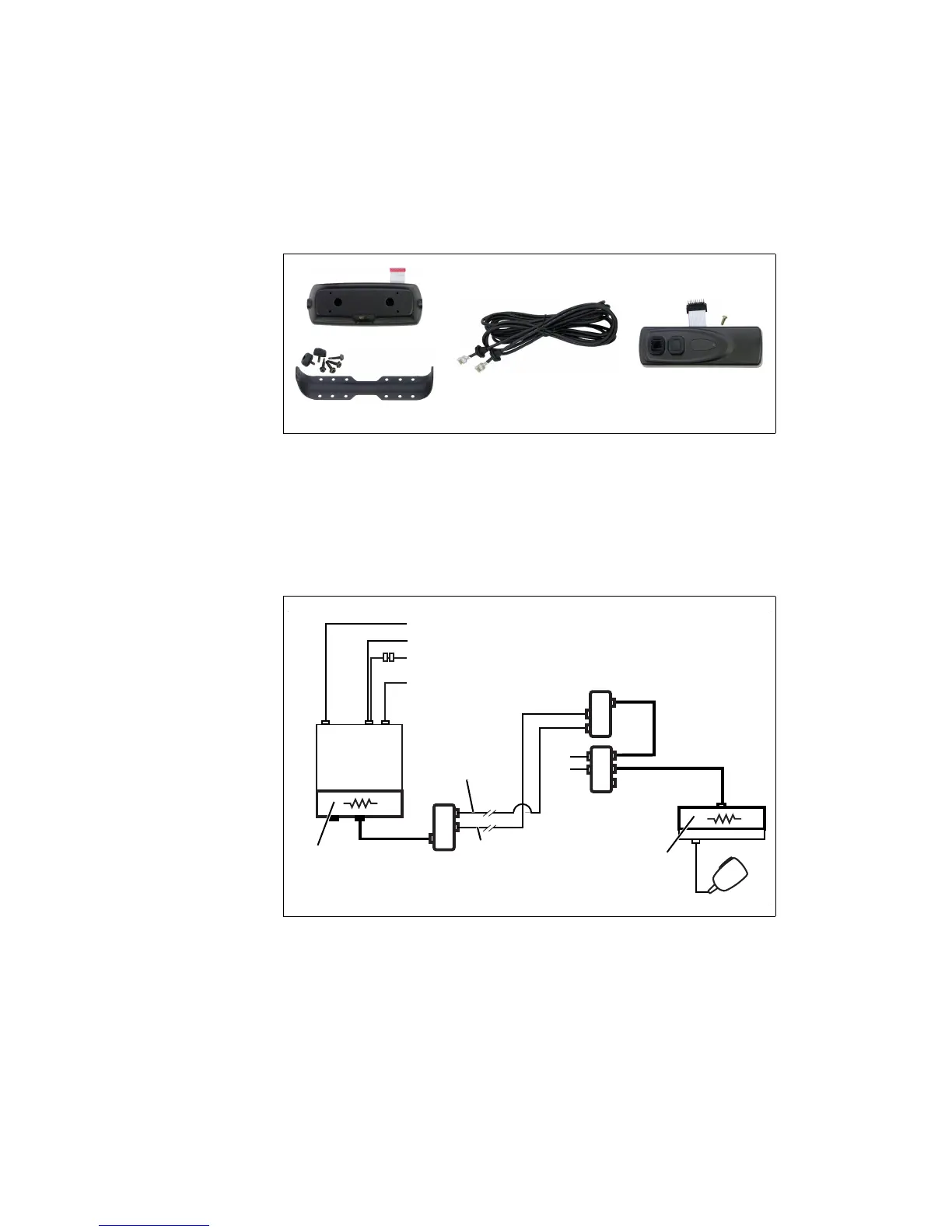

4.2 Remote Control Head
Remote Control
Head
A remote kit can be used to install the control head of a graphical-display
radio remotely from the radio body. The diagram below shows the
additional parts used for this installation. Refer to the Instructions for
Installing a Remote Control Head (402-00020-xx) for full details.
Extended Remote
Control Head
An extended remote kit can be used when extended distances are required
between a TM8250 or TM8255 radio body and its graphical-display control
head. This enables the control head to be installed up to 1km away from the
radio body. The items named or shown in bold below are part of the
upgrade kit. Refer to the TMAA11-06 Extended Single Head Upgrade Kit
Installation Instructions (402-00047-xx) for full details.
remote U-bracket
control-head interface
remote cable
body interface
to antenna
to power supply
to remote speaker (optional)
to external I/O (optional)
radio body
0.6m neck
cable
(SYSTEM)
control head
0.6m neck
cable
(SYSTEM)
control-head
remote interface
(TMAA03-03)
body
remote
interface
(TMAC34)
12m remote
cable (HEAD 1)
<1km crossover
network cable (AUDIO)
<1km crossover
network cable (DATA)
to
power
supply
extender box
(TMAA03-34,
head-end)
extender box
(TMAA03-34,
radio-end)
control-head
interface box
(TMAA03-31,
local powered)
