4.6 Desktop Power Supply
The TMAA13 power supply enables you to use a TM8000 mobile radio as
a desktop radio. The TMAA13 operates on an input voltage of
100–130VAC or 200–250VAC, depending on the model, and can be used
with both >25W (high power) and 25W (standard power) radios. The
mobile radio can be installed at a distance from the power supply, or it can
be mounted on top of the power supply using a plinth or U-bracket. The

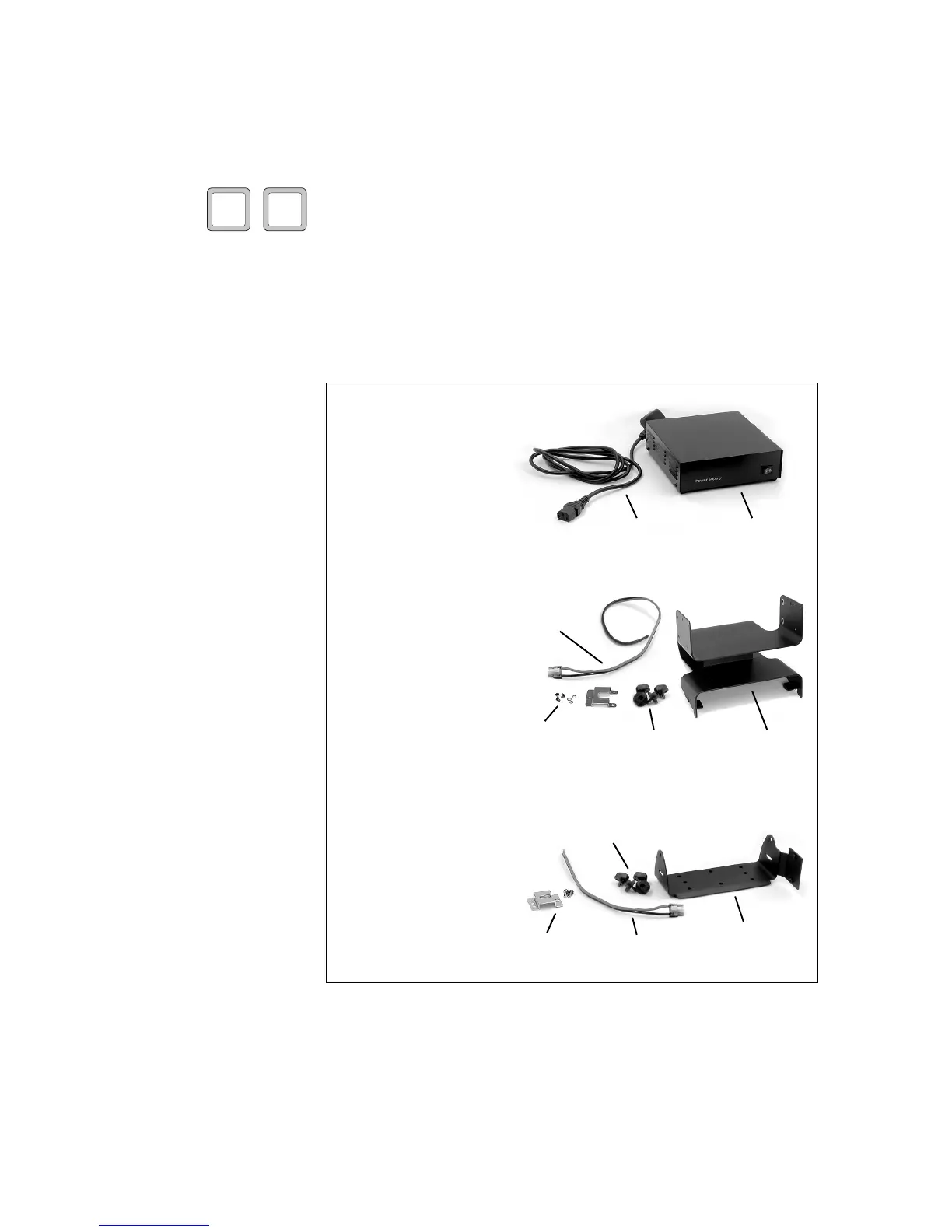

following diagram shows the components included in each kit. Refer to the
TMAA13 Power Supplies User’s Guide (MMZ-00002-xx) for full details.
Notice Radios fitted with a graphical control head do not fit the
U-bracket and must use the plinth.
>25W 25W
Power Supply Kit
TMAA13
Plinth Kit
TMAA03-12: >25W radios
TMAA03-09: 25W radios
U-bracket Kit
TMAA03-13: >25W radios
TMAA03-06: 25W radios
power cable
(2.5m)
3 x screws
3 x washers
microphone clip
4 thumb screws plinth
4 thumb screws
2 x screws
microphone clip
power cable
(300mm)
U-bracket
power supplymains cable
