TM8100/TM8200 Installation Guide Installation Options 37
© Tait Limited November 2012
4.4 Hand-Held Control Head
Hand-Held Control
Head
The TMAC70 is a hand-held control head for mobile radios that enables the
user to operate the radio at a distance from the radio body. The hand-held
control head plugs into one of the RJ45 sockets on the appropriate remote
control head. A remote speaker is required when a hand-held control head
is installed. Refer to the TMAC70 Hand-Held Control Head Installation
Instructions (402-00042-xx) for full details.
Remote Hand-Held
Control Head

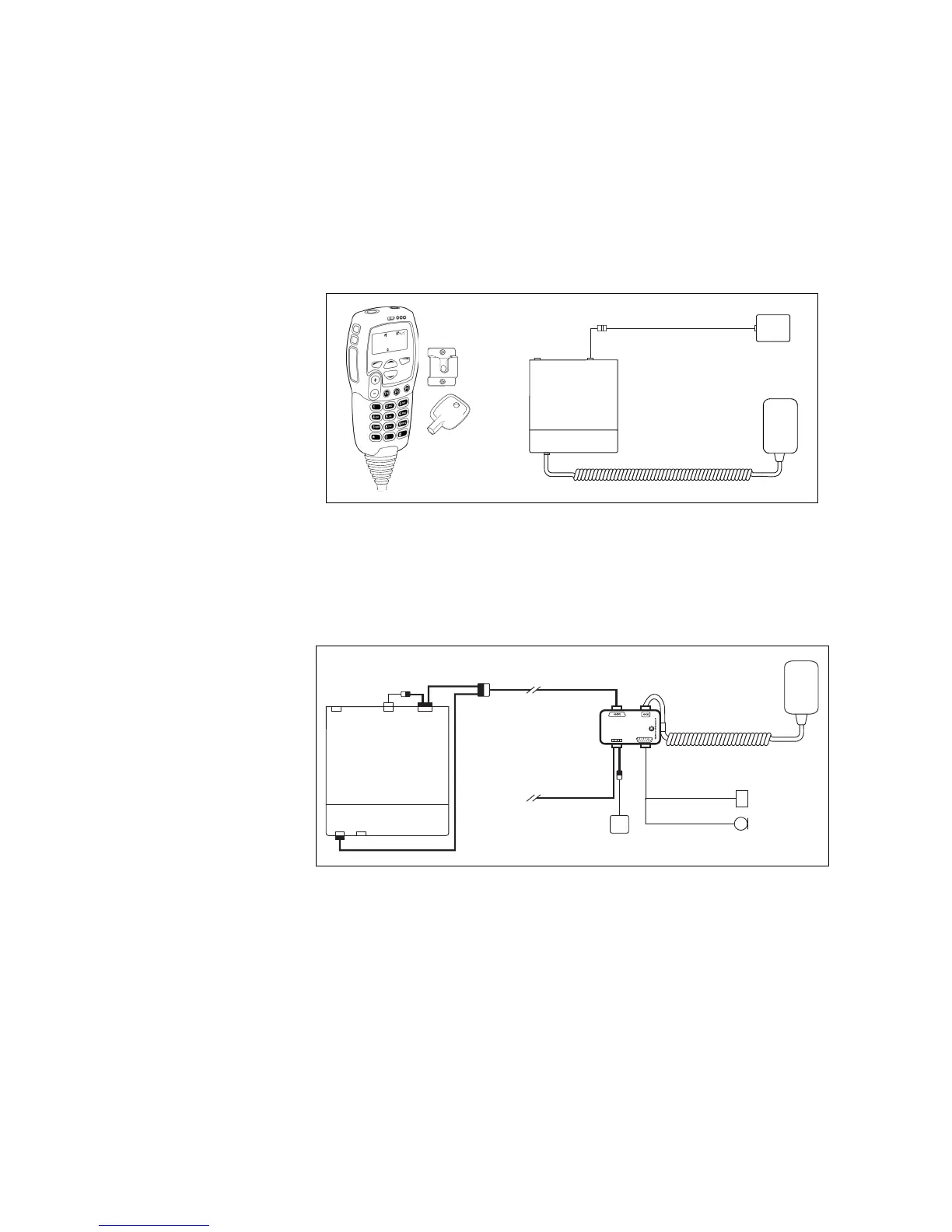

The TMAA03-32 is an installation kit for remotely mounting the TMAC70
hand-held control head. The following diagram summarizes how the
components are installed. The items named or shown in bold below are part
of the kit. Refer to the TMAA03-32 Hand-Held Control Head Remote
Interface Kit Installation Instructions (402-00044-xx) for full details.
remote control head
TMAA10-03 or TMAA10-06
remote speaker
TMAC70
Zone 11
Channel 12
Talkgr
Menu
microphone
clip
8mm Allen key
TMAC70 hand-held
control head
TMAC70
hand-held
control head
radio body
remote control head
TMAA03-29
remote
interface box
hand-held
control head
remote
microphone
remote PTT
remote speaker
ignition
sense cable
6m
remote cable
combining
cable
power
connector
auxiliary
connector
antenna
TMAC70
