38 Installation Options TM8100/TM8200 Installation Guide
© Tait Limited November 2012
Hand-Held Control
Head Extension

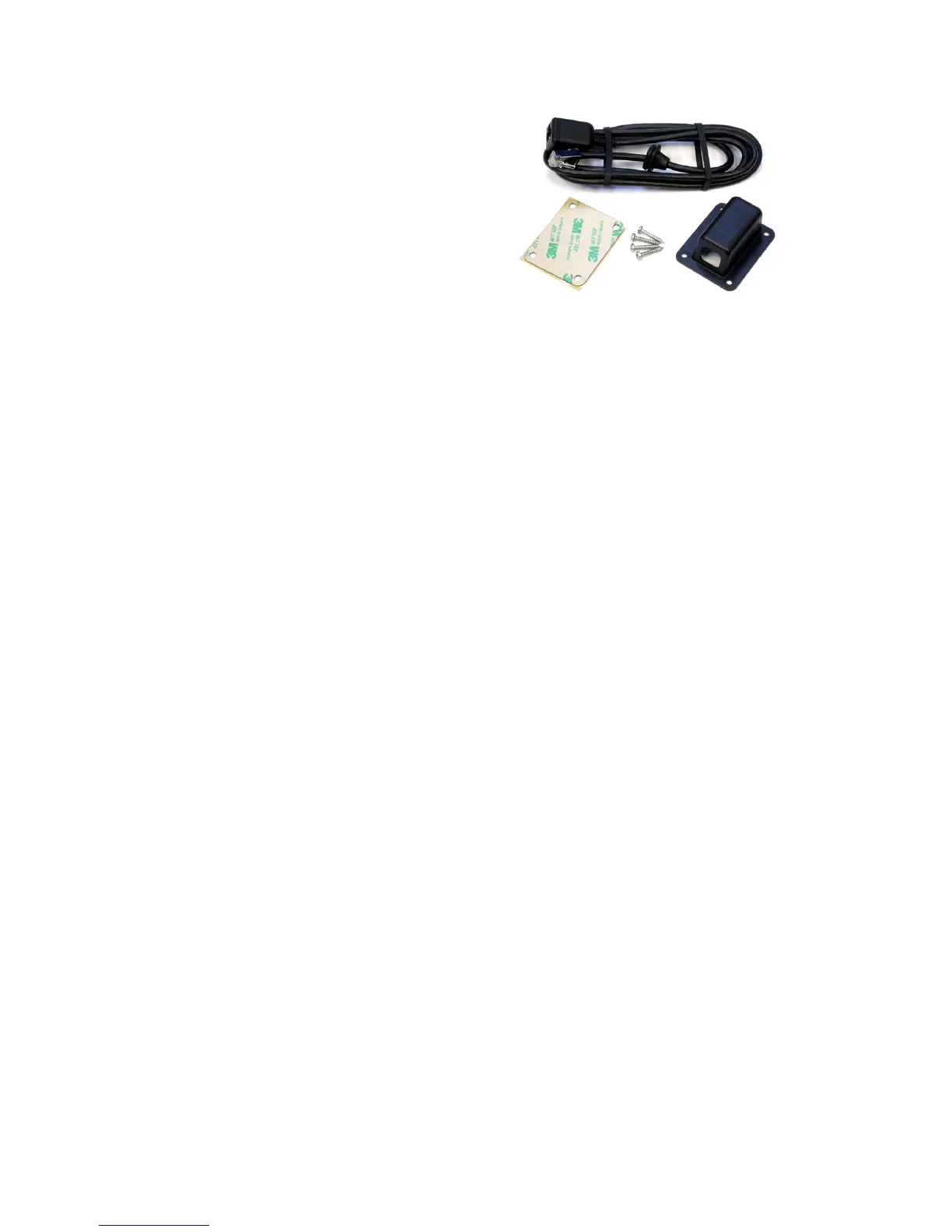

The TMAA04-14/15/16/17 kits
can be used to extend the distance
between a hand-held control head
and the radio body or remote
interface box by between 5ft
(1.5m) and 30ft (9.2m),
depending on the kit. A housing
unit and gasket enclose the
extension cable socket, and
provide additional strain relief and
some protection from water and
dust ingress. Refer to the
TMAA04-14/15/16/17 Hand-Held Control Head Extension Kits
Installation Instructions (402-00067-xx) for full details.
self tapping
screws x4
(No. 6 x 0.31in.
(19mm))
extension
cable
housing
unit
gasket
