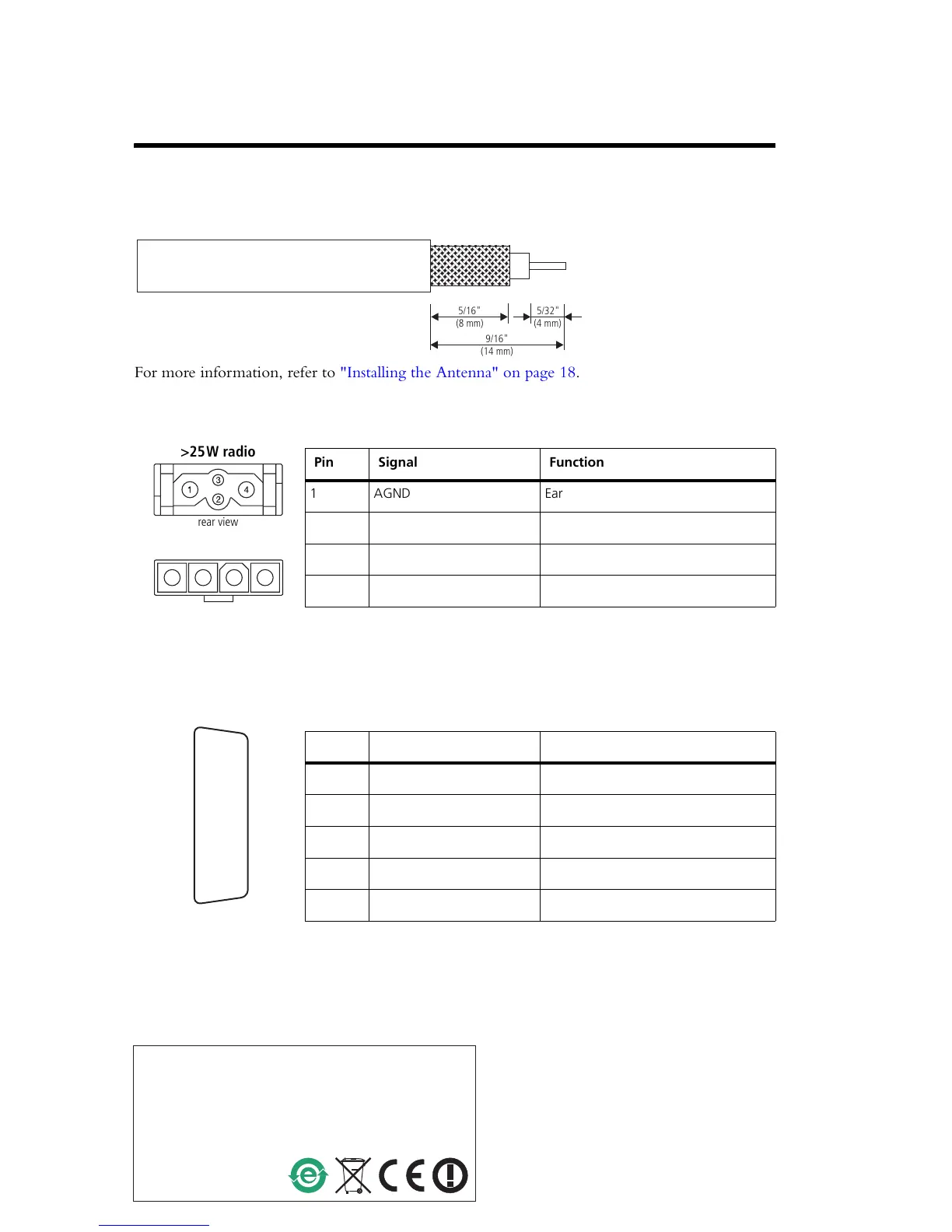

Cable Connections
Terminating the Antenna Cable
Power and Remote Speaker Connections
Ignition Sense, Emergency Switch, and External Alert Device Connections
5/16"
9/16"
5/32"
(4 mm)
(8 mm)
(14 mm)
For more information, refer to "Installing the Antenna" on page 18.
rear view
>25W radio
Pin Signal Function
1 AGND Earth return
2 SPK– External speaker –
3 SPK+ External speaker +
4 +13V8 BATT DC power input (10.8V to 16.0V)
or more information, refer to "Connecting the Power Cable to the Power Source" and
Connecting a Remote Speaker" on page 21.
1 2 3 4
rear view
25W radio
rear view
J
B
C
D
E
F
G
H
I
1)
1!
1@
1#
1$
1%
Pin Signal Function
4 AUX GPI3 Ignition sense
5 AUX GPI2 Emergency switch +
8 +13V8 SW External alert device +
10 AUX GPIO4 External alert device –
15 AGND Emergency switch –
For more information, refer to "Connecting to the Auxiliary Connector (Ignition Signal,
mergency Switch, External Alert Devices)" on page 22.
