Tait TM8100 Installation Guide

36 Installation Options TM8100/TM8200 Installation Guide
© Tait Limited November 2012
Extended Dual
Control Heads
The TMAA11-07 or TMAA11-08 upgrade kits can be used to convert a
TM8250 or TM8255 mobile radio (single radio body and graphical-display
control head) to a dual-head radio system. The upgrade kits allow one or
both control heads to be installed away from the radio body in difficult or

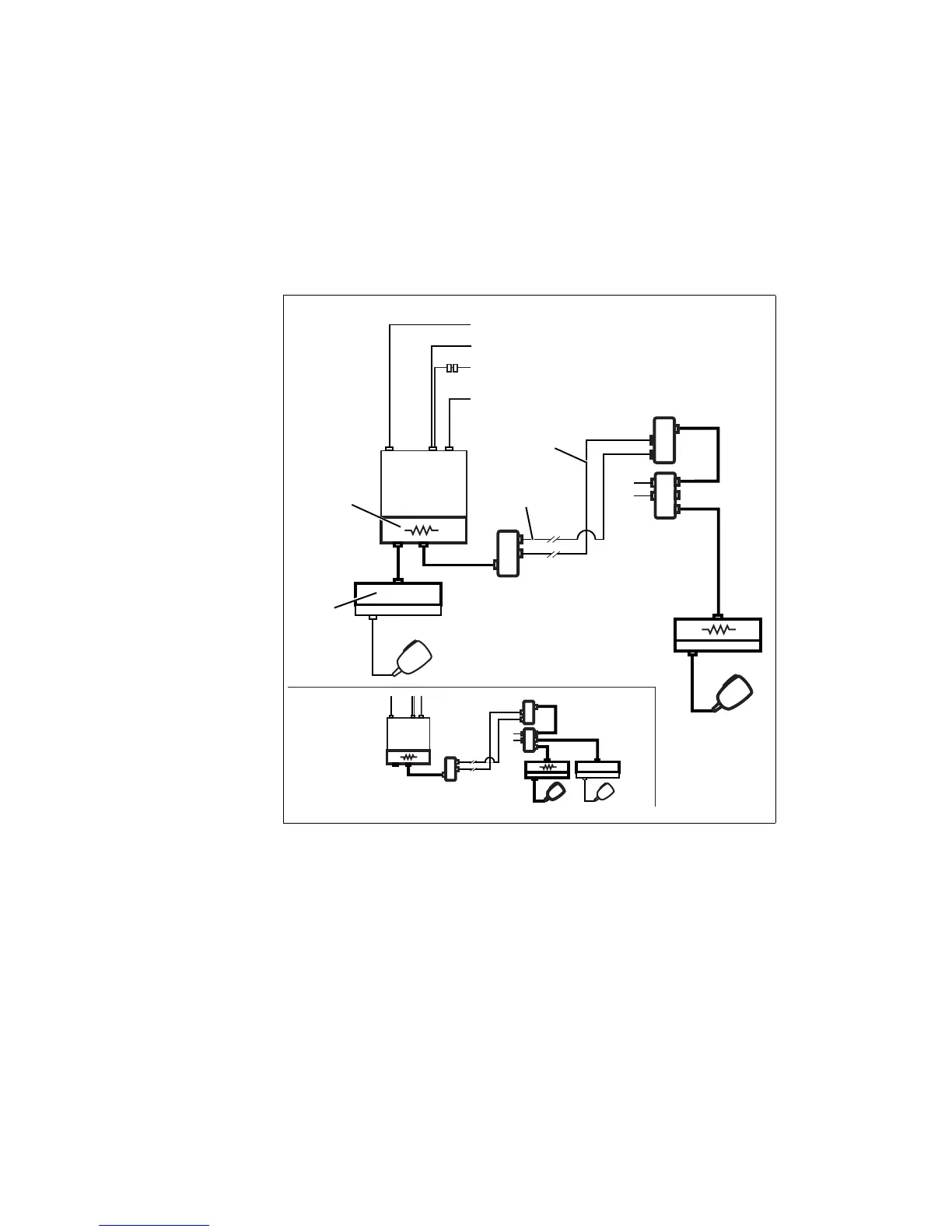

isolated locations, up to a maximum of 1km. The following diagram
summarizes how the components are installed. Items named or shown in
bold are part of the upgrade kits. Refer to the TMAA11-07 and
TMAA11-08 Extended Dual Head Upgrade Kits Installation Instructions
(402-00052-xx) for full details.
to antenna
to power supply
to remote speaker (optional)
to external I/O (optional)
radio body
0.6m
neck cable
(SYSTEM)
existing control head
0.6m
neck
cable
(SYSTEM)
remote
interface
for primary
control-head
(TMAA03-03C)
body remote
interface
(TMAC34)
12m
remote
cable
(HEAD 2)
extender box
(TMAA03-34,
head-end)
extender box
(TMAA03-34,
radio-end)
control-head
interface box
(TMAA03-31,
local powered)
<1km crossover
network cable
(AUDIO)
<1km crossover
network cable
(DATA)
to
power
supply
Alternative
configuration
second control head
and remote interface
(TMAC42-0T01)
12m remote
cable
