Tait TM8100 Installation Guide

40 Installation Options TM8100/TM8200 Installation Guide
© Tait Limited November 2012
Dual Control Heads

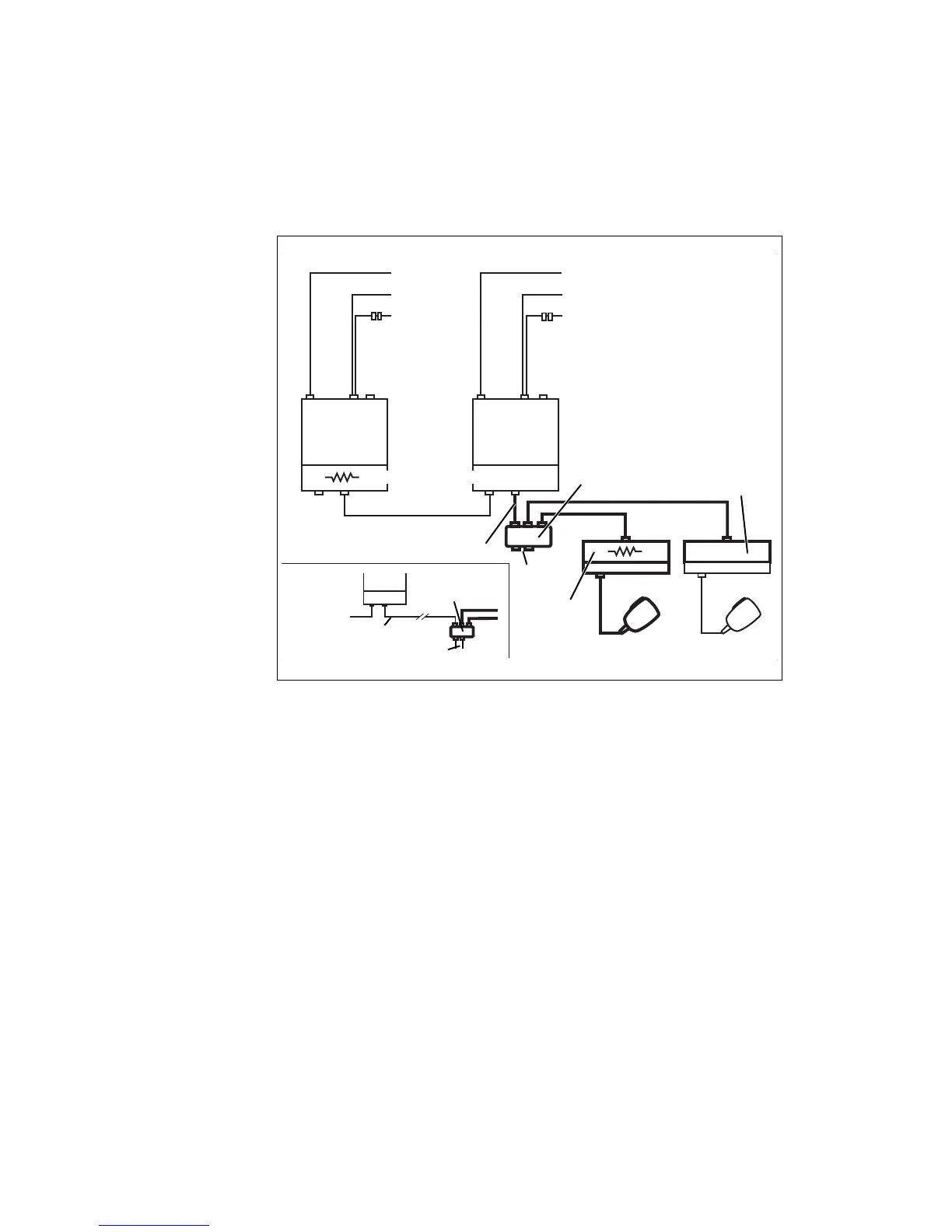

The TMAA11-09 upgrade kit can be used to convert a TM8260 dual-body
mobile radio to a TM8260 dual-body dual-head radio system. The
following diagram summarizes how the components are installed. Items
named or shown in bold are part of the upgrade kit. Refer to the
TMAA11-09 TM8260 Dual Head Upgrade Kit Installation Instructions
(402-00043-xx) for full details.
to antenna
to power supply
to remote speaker (optional)
1.5m radio connecting cable
existing control
head
second
control head
and remote
interface
(TMAC42-0T01)
body remote interfaces
to antenna
to power supply
to remote speaker
(optional)
radio body
0.6m neck cable (SYSTEM)
remote interface
for primary control-
head (TMAA03-03C)
12m remote cables
to power supply
Alternative
configuration
no connection
to power
control-head
interface box
(TMAA03-31,
radio powered)
control-head
interface box
(local powered)
radio body
(TMAC31-0T)
<30m straight-through
network cable
