Takeuchi TL10 User Manual

2-53
CONTROLS
ACCESSORIES

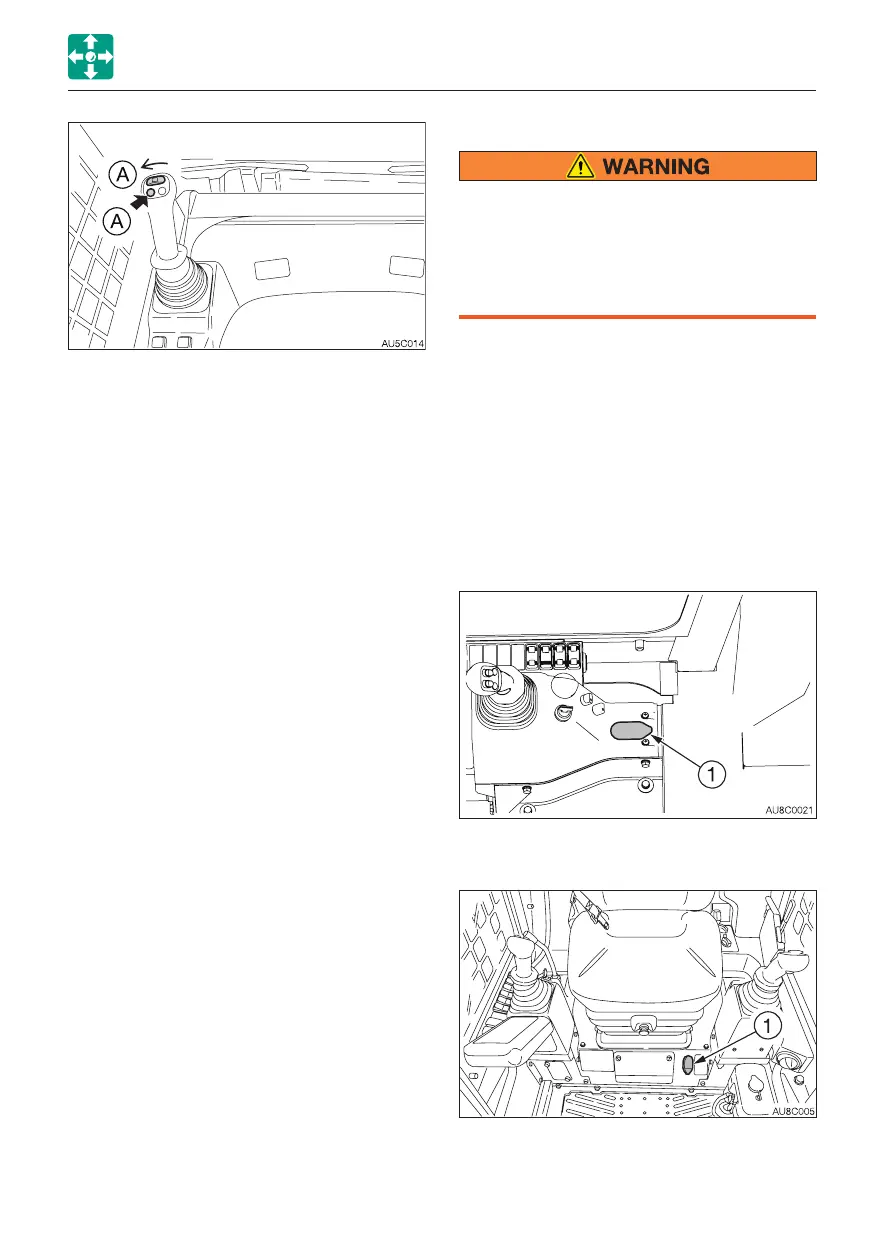

2. Press the auxiliary hydraulic button (A) or
slide the slider switch to the left side (A).
LIFT ARM LOWER BUTTON (IF EQUIPPED)
• Do not leave the operator’s seat while
the engine is on or while the lift arm is
being raised.
• Do not lower the lift arm until you are
certain that no one is around the
machine.
IMPORTANT: The lift arm can be lowered
even when the engine is stopped or the
safety lever is in the lock position.
If the lift arm cannot be lowered during a
usual operation, press the covered button to
lower it.
Lowering the lift arm
<TL8>
<TL10/TL12>
1 Remove the rubber (1) from the top of the
button.

Takeuchi TL10 Specifications

General

Engine Make	Kubota
Engine Power	74.3 hp
Tipping Load	7, 205 lb
Rated Operating Capacity	2, 522 lbs
Engine Model	V3307-CR-TE4
Max Dump Height	2, 540 mm
Overall Width	1, 800 mm
Overall Height	2, 540 mm
Travel Speed	11.5 km/h
