Takeuchi TL10 User Manual

8-9
OPTIONS

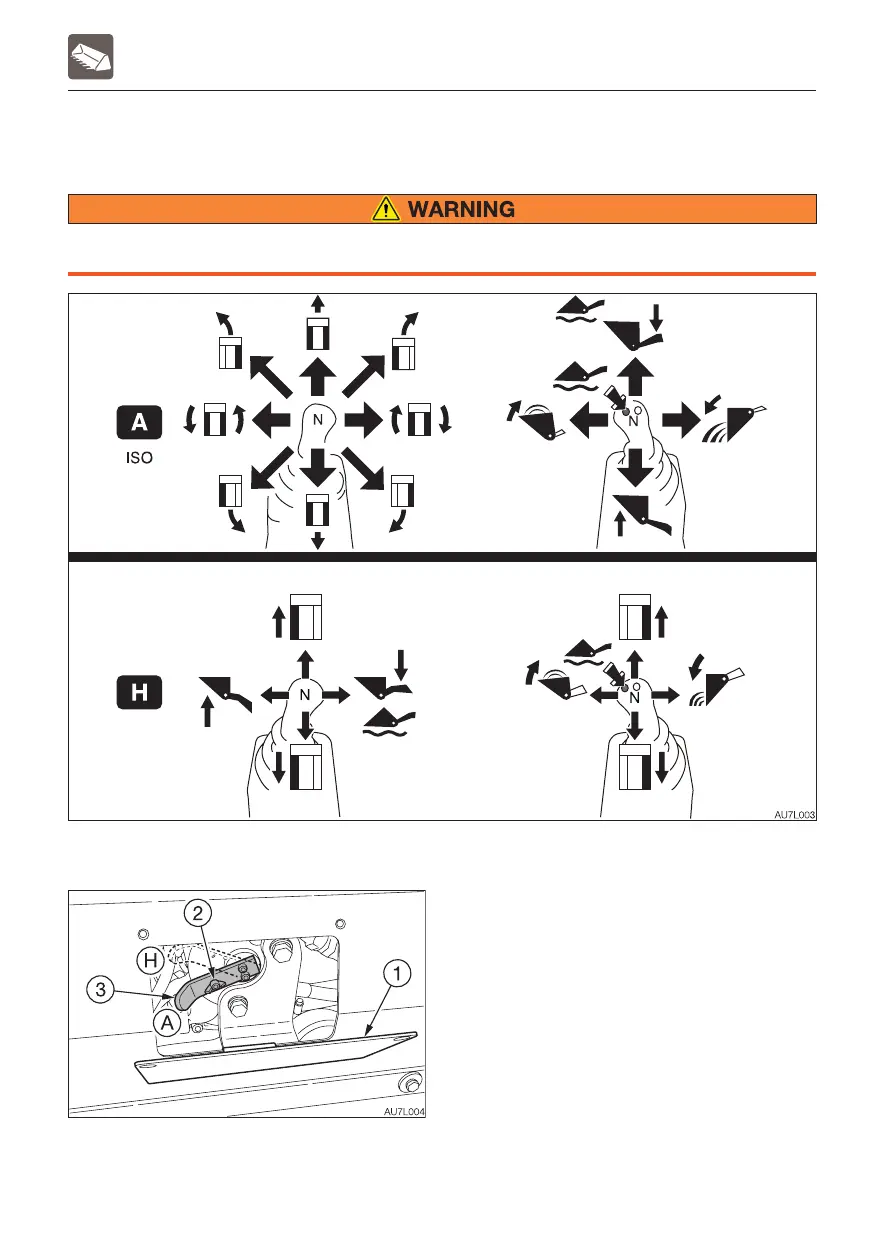

SELECTING A LEVER PATTERN
The operating pattern of the left and right operating levers can be changed.
Before starting the engine, check the selector to see which operating pattern the left
and right operating levers are set.
SELECTING A LEVER PATTERN
SWITCHING THE LEVER PATTERN
(A) : ISO pattern
(H) : H pattern
1. Park the machine on a flat and rigid
ground, and stop the engine.
2. Loosen the screws and open the cover
(1).
3. Loosen the wing bolt (2).
4. Turn the selector valve lever (3) to change
the pattern.
5. Tighten the wing bolt (2) and fasten the
lever (3) in place.
6. Close the cover (1) and tighten the
screws.
7. Confirm the lever pattern.

Takeuchi TL10 Specifications

General

Engine Make	Kubota
Engine Power	74.3 hp
Tipping Load	7, 205 lb
Rated Operating Capacity	2, 522 lbs
Engine Model	V3307-CR-TE4
Max Dump Height	2, 540 mm
Overall Width	1, 800 mm
Overall Height	2, 540 mm
Travel Speed	11.5 km/h
