2-32
CONTROLS
SWITCHES

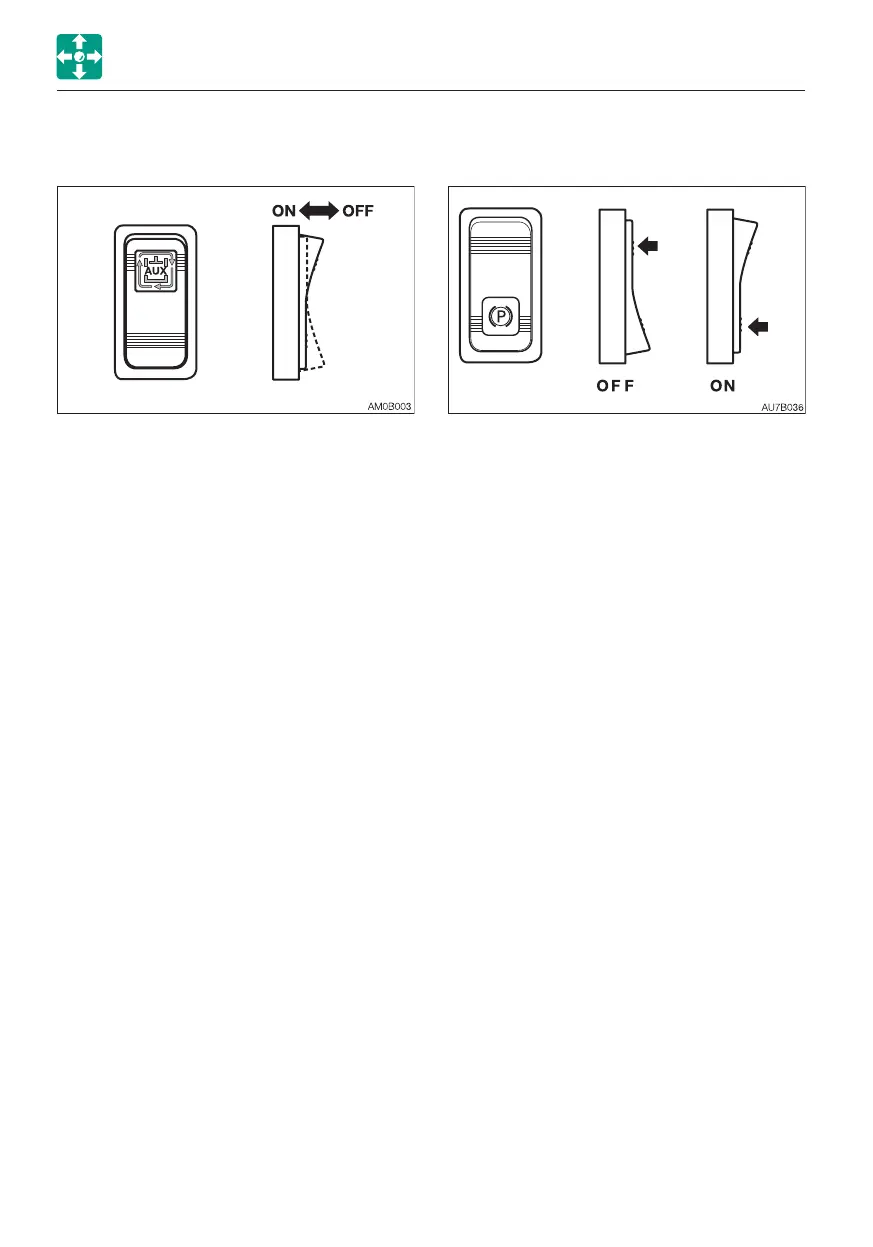

PARKING BRAKE SWITCH
(TL12 OPTIONAL)
• Pressing the parking brake side engages
the parking brake and disables traveling.
The working equipment is still operable.
The parking brake symbol appears on the
display.
• To cancel, press the opposite side of the
switch.
Note: The parking brake is automatically
activated when the power is turned off or the
safety bar is raised.
Refer to “Parking brake display”on page
2-20.
AUXILIARY 1ST FLOW RATE SELECT
SWITCH
This switch is used to select and set the flow
rate of the auxiliary 1st.
The auxiliary 1st flow rate indicator lamp in
the instrument cluster lights up to indicate
which flow rate setting is selected. The flow
rate setting changes each time the ON side
of the switch is pressed.
The flow rate setting is done by using this
switch and the TRIP/DATA switch.
Refer to “3. Auxiliary 1st-1 setting
information” on pages 2-18 to 2-19.
To Next Page
