Takeuchi TL10 User Manual

3-21
OPERATION

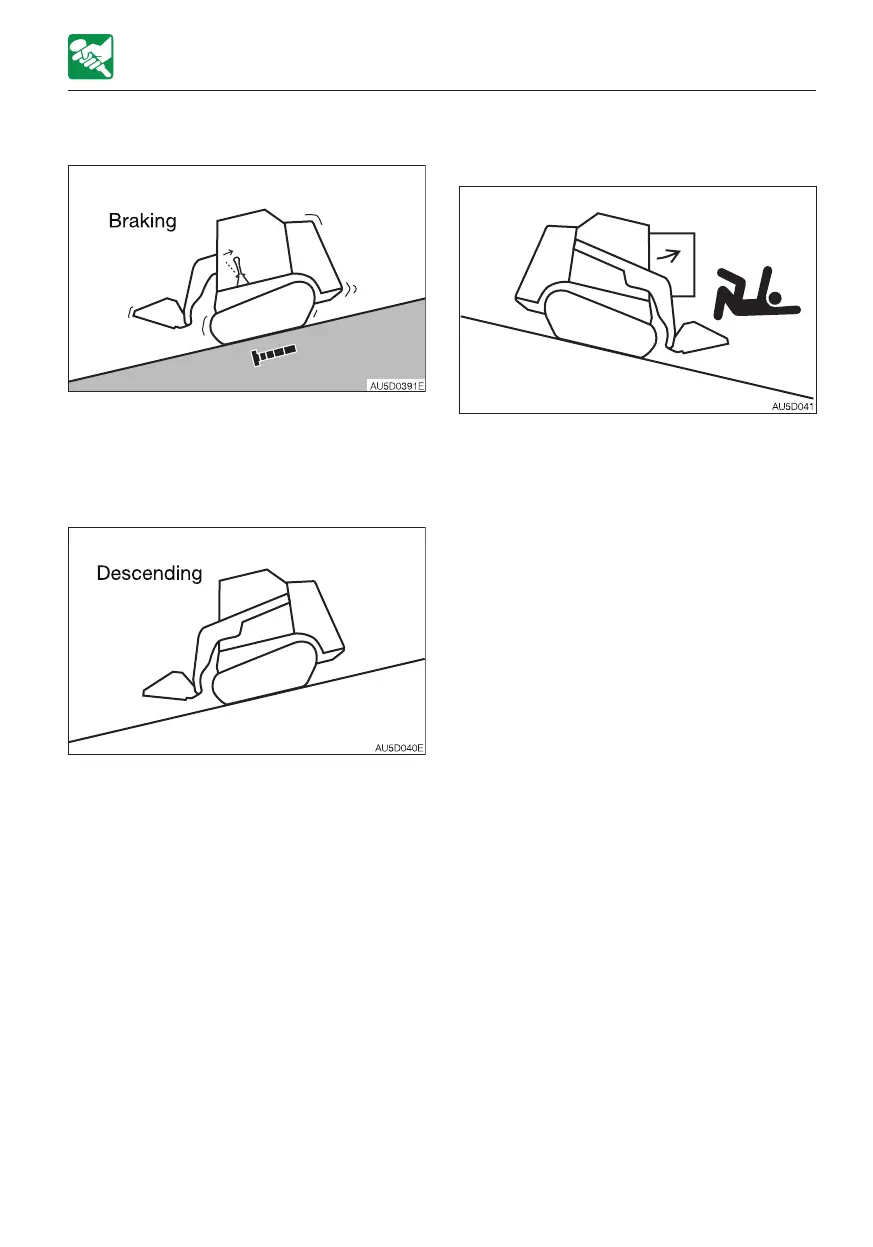

Braking when descending slopes
OPERATING PROCEDURES
When descending slopes, the brakes are
applied automatically once the control levers
are returned to the neutral position.
If the engine stops
If the engine stops when descending a
slope, set the left control lever to the neutral
position, stop the machine, then start the
engine.
Do not open the door while traveling on
slopes (if equipped with cab door)
Opening the door while traveling on slopes is
dangerous, as the force required to open
and close the door changes abruptly. Always
keep the door closed when traveling on
slopes.

Takeuchi TL10 Specifications

General

Engine Make	Kubota
Engine Power	74.3 hp
Tipping Load	7, 205 lb
Rated Operating Capacity	2, 522 lbs
Engine Model	V3307-CR-TE4
Max Dump Height	2, 540 mm
Overall Width	1, 800 mm
Overall Height	2, 540 mm
Travel Speed	11.5 km/h
