Takeuchi TL10 User Manual

3-29
OPERATION

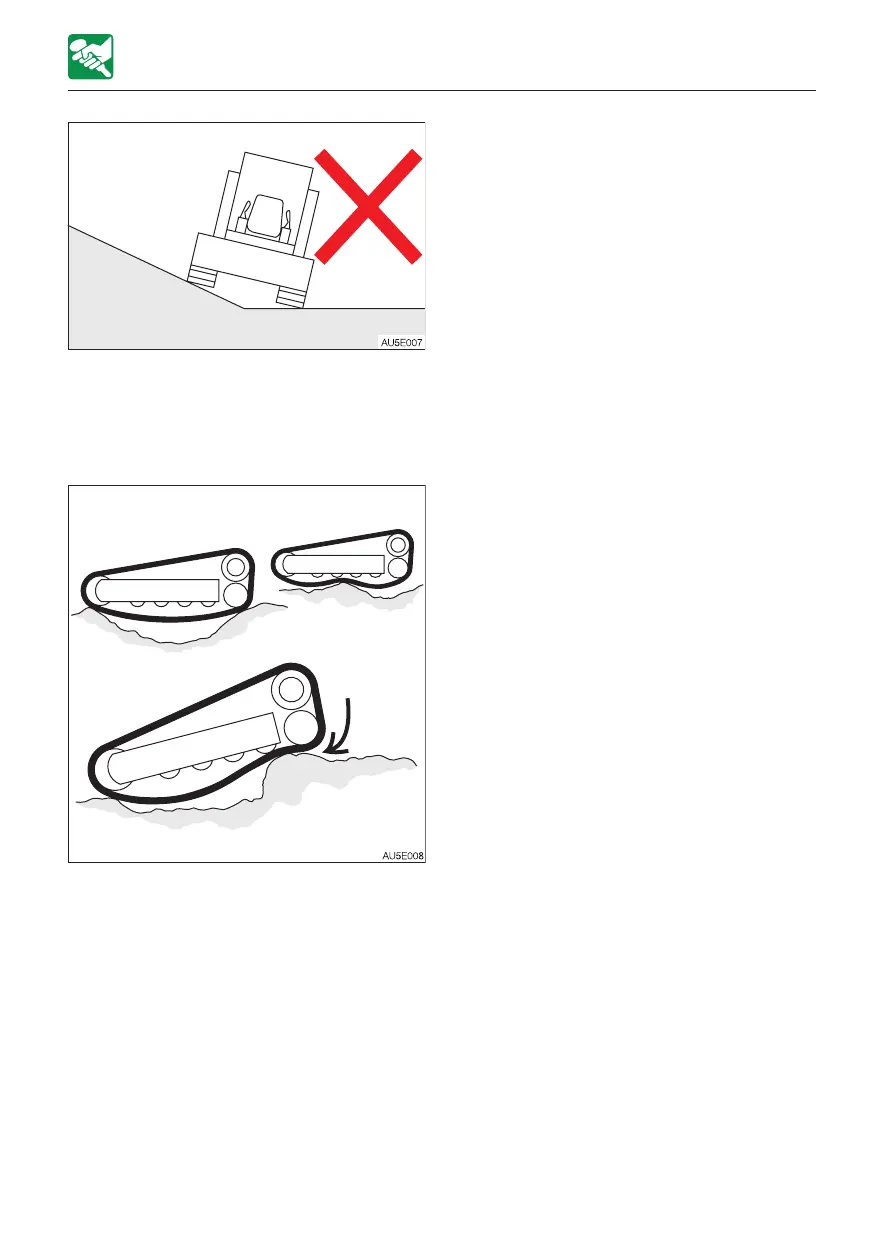

• Avoid traveling by setting one track on a
slope or projecting portion and the other
track on a flat surface (with the machine at
a tilt of 10° or more). Travel with both
tracks set on flat surfaces.
• Do not change directions when the tracks
are slack as shown in the figure.
HANDLING RUBBER TRACKS

Takeuchi TL10 Specifications

General

Engine Make	Kubota
Engine Power	74.3 hp
Tipping Load	7, 205 lb
Rated Operating Capacity	2, 522 lbs
Engine Model	V3307-CR-TE4
Max Dump Height	2, 540 mm
Overall Width	1, 800 mm
Overall Height	2, 540 mm
Travel Speed	11.5 km/h
