Takeuchi TL10 User Manual

4-4
TRANSPORT
HOISTING THE MACHINE
A B C D E F G
TL8
1520
(59.9)
980
(38.7)
1515
(59.7)
855
(33.7)
660
(25.9)
890
(35.0)
500
(19.7)
TL10
1660
(65.3)
940
(37.1)
1720
(67.7)
985
(38.8)
735
(28.9)
880
(34.7)
630
(24.7)
TL12
1705
(67.1)
950
(37.4)
1895
(74.6)
1110
(43.7)
785
(30.9)
880
(34.7)
615
(24.2)
Unit: mm (inch)

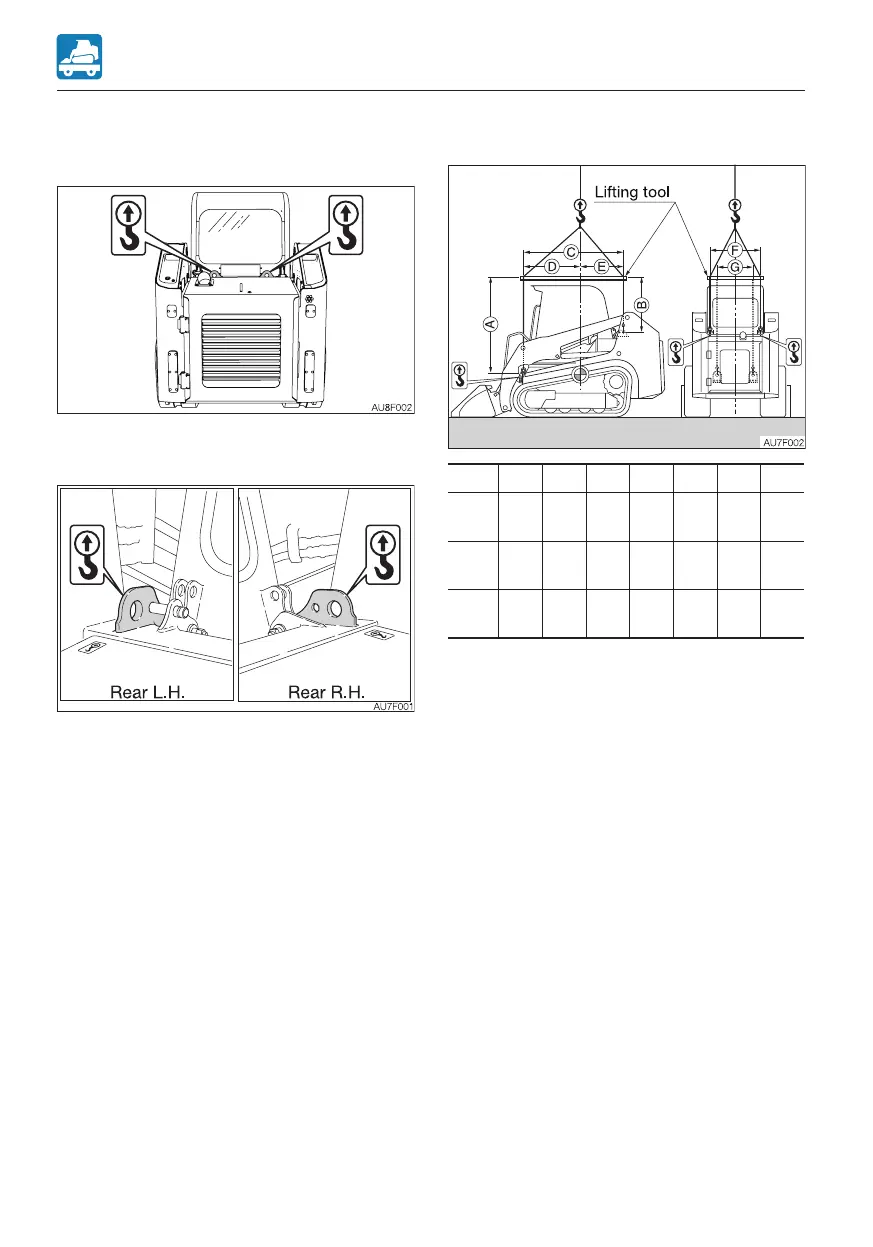

Hoisting posture
<TL10/TL12>
Rear hook fixing position
<TL8>

Takeuchi TL10 Specifications

General

Engine Make	Kubota
Engine Power	74.3 hp
Tipping Load	7, 205 lb
Rated Operating Capacity	2, 522 lbs
Engine Model	V3307-CR-TE4
Max Dump Height	2, 540 mm
Overall Width	1, 800 mm
Overall Height	2, 540 mm
Travel Speed	11.5 km/h
