2-3

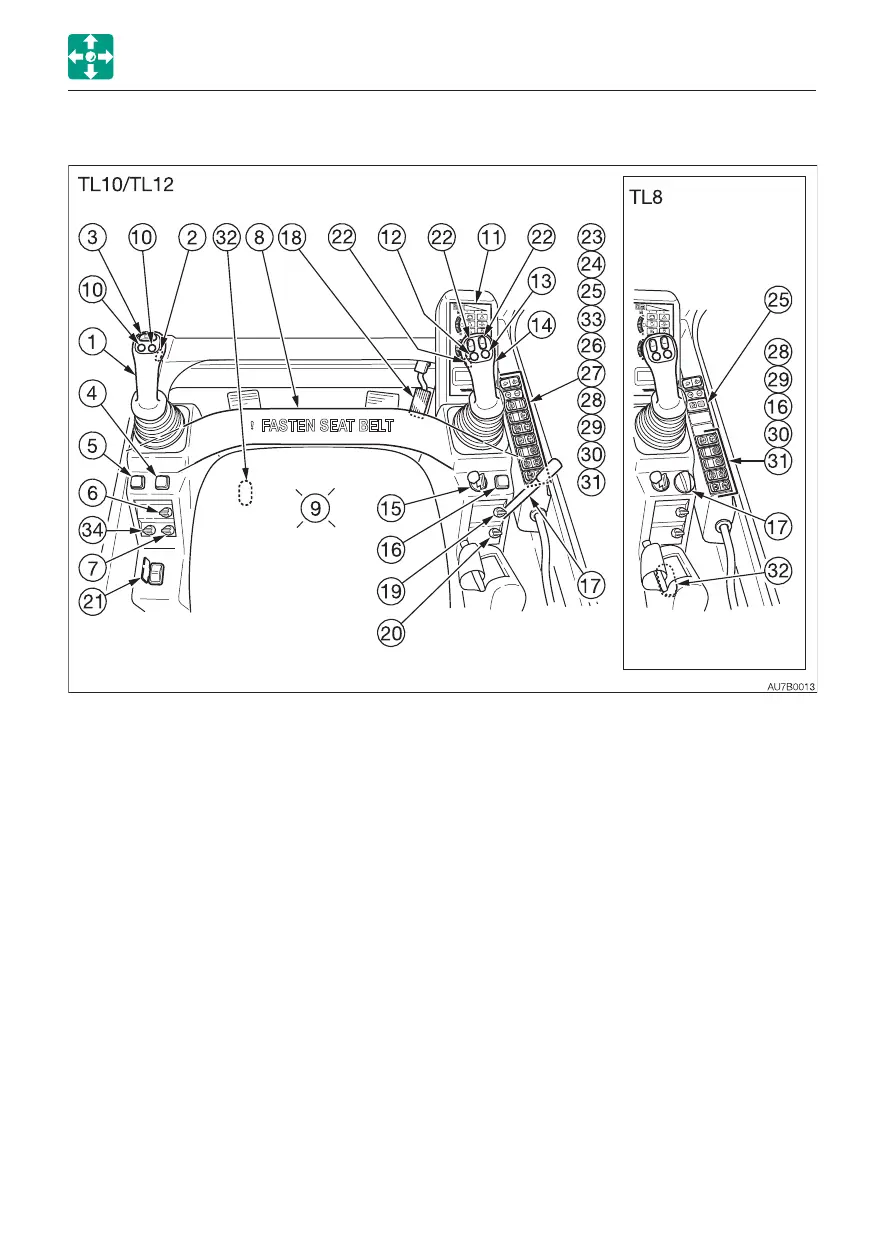

CONTROLS
1. Left control lever
2. Travel speed button
3. Slider switch (for auxiliary hydraulic)
4. Detent mode switch (for auxiliary hydraulic)
5. Flow selector switch (Two-way/One-way)
6. Front wiper switch*
7. Rear wiper switch*
8. Safety bar
9. Seat
10. Auxiliary hydraulic buttons
11. Instrument cluster
12. Float button
13. Horn button
14. Right control lever
15. Ignition switch
16. High-flow switch*
17. Throttle lever/Throttle controller <TL8>
18. Throttle pedal*
NAMES OF COMPONENTS
19. Front light switch
20. Tail light switch
21. Hydraulic quick-hitch switch*
22. Multifunction buttons*
23. Engine shutdown switch
24. Trip/Data switch
25. Blow-by heater lamp**
26. Ride control switch*
27. Aux. 2nd/14-pin connector select
switch*
28. 14-pin connector G/H select switch*
29. Aux. 1st flow rate select switch
30. DPF manual regeneration/inhibit select
switch
31. ECO/Power mode select switch
32. Lift arm lower button (if equipped)
33. Parking brake switch* <TL12>
34. Active power control (if equipped)
DPF: Diesel Particulate Filter
* : Subject to the specifications or optional products selected
** : Refer to “Blow-by heater lamp” on page 2-54.
To Next Page
