2-27
CONTROLS

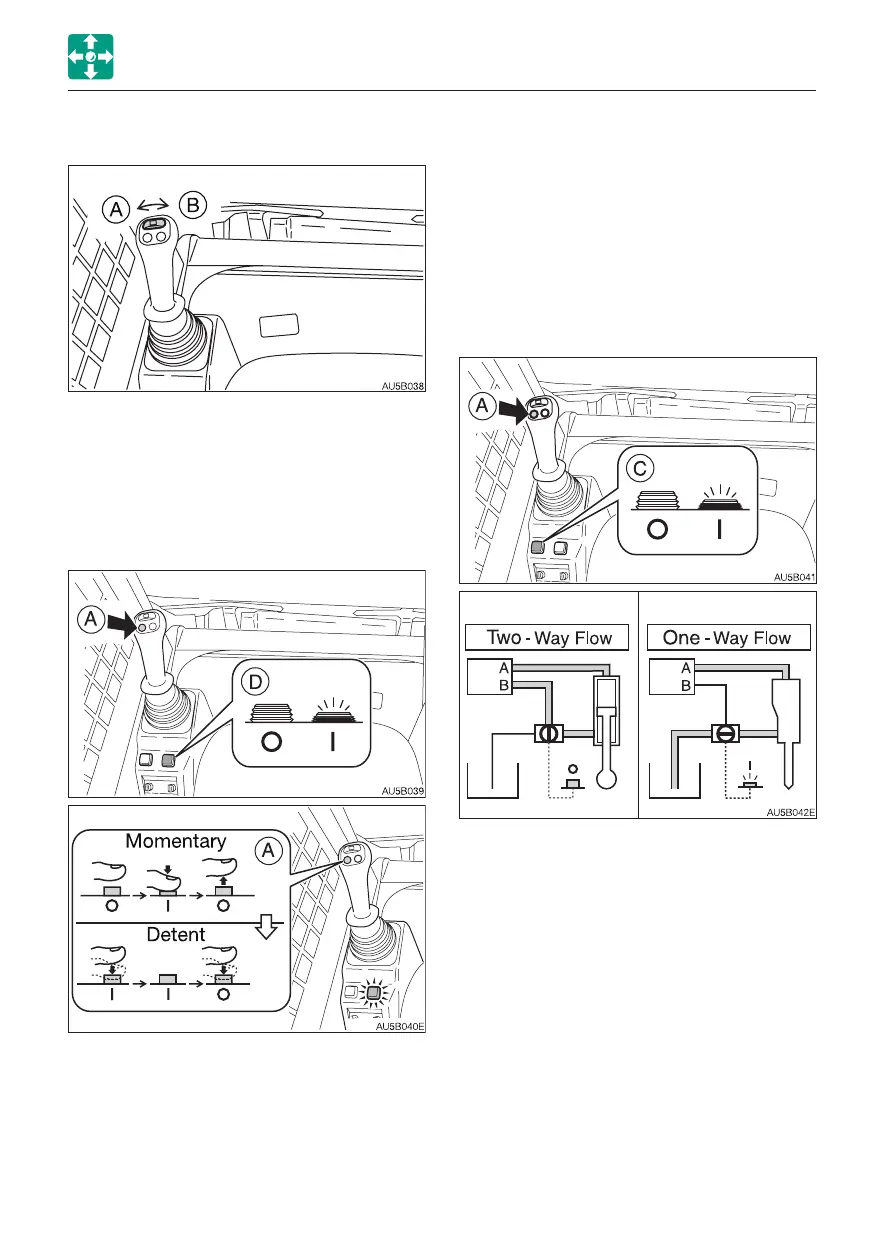

Slider Switch (Proportional control)
Proportional control allows for slow-to-fast
movement of auxiliary functions.
Example: If you move the slider switch half
way, the auxiliary function will move at
approximately one-half speed.
Detent Mode Switch (D)
Change the operation mode of the auxiliary
hydraulic switch (A) as follows.
To set to the detent mode, press the switch
until the built-in lamp (orange) lights up to
indicate that the auxiliary hydraulic switch (A)
is in the detent mode. To change it to the
momentary mode, press the switch again
until the built-in lamp (orange) goes out.
Flow Selector Switch (C)
SWITCHES
The flow of the auxiliary hydraulic system
(lines (a) and (b)) can be set to either one-
way or two-way flow.
To set to the one-way mode, press the
switch until the built-in lamp (green) lights up
to indicate that the auxiliary hydraulic line is
in the one-way mode. To change it to the
two-way mode, press the switch again until
the built-in lamp (green) goes out.
IMPORTANT: Do not operate the machine
in the detent mode for a long time. Doing
so will increase the hydraulic oil
temperature and shorten the service life
of the hydraulic units.
