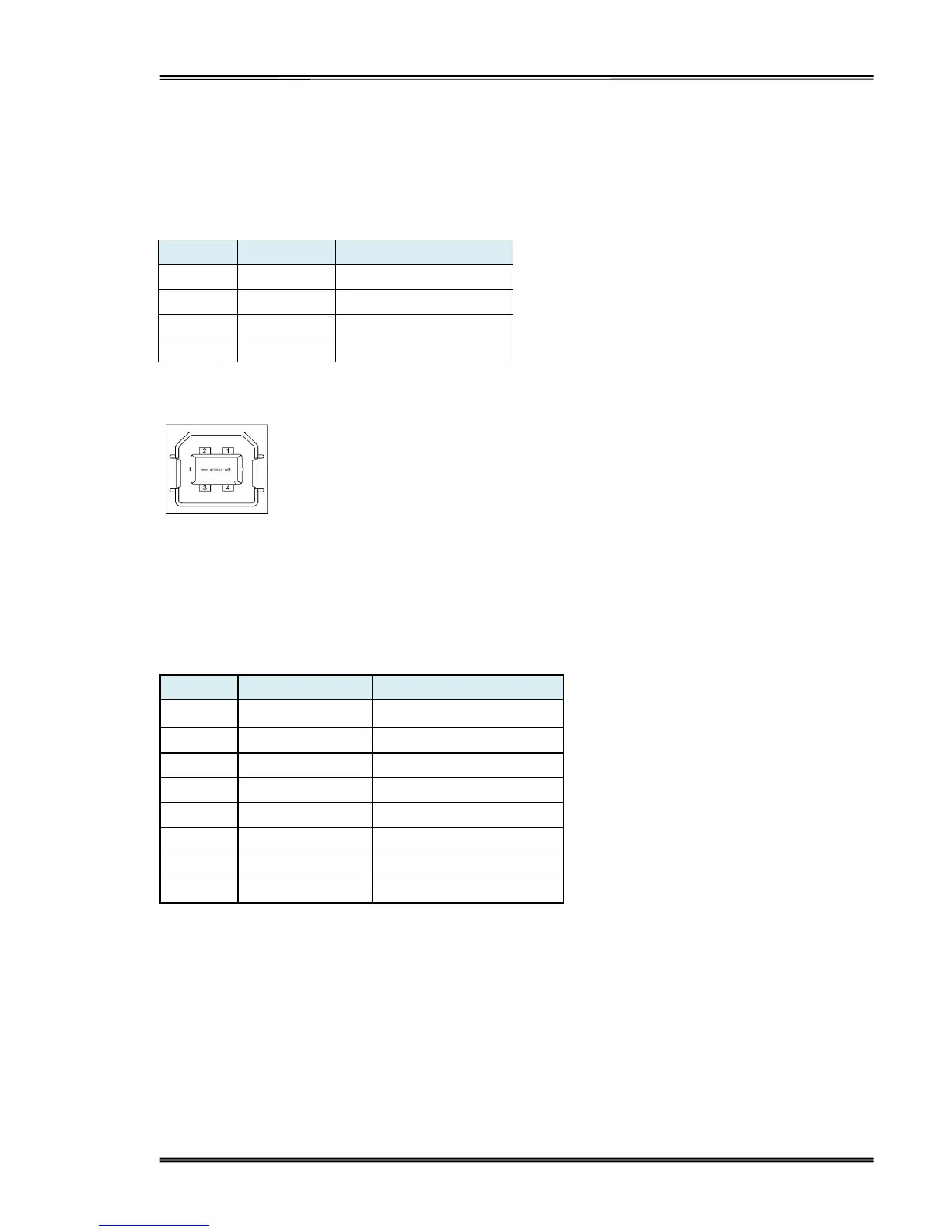

6 COMMUNICATION INTERFACES SPECIFICATIONS
6.1 USB interface
 USB interface pin assignment
PIN No.
Description
Classic wire color
1
VBUS
Red
2
D-
White
3
D+
Green
4
GND
Black
 USB interface connector diagram
6.2 Wi-Fi interface
Wi-Fi interface supports 2.4 GHz, IEEE Std. 802.11b/g standard.
6.4 Ethernet interface
 Ethernet interface pin assignment
Pin. No.
Name
Description
1
TX+
Tranceive Data+
2
TX-
Tranceive Data-
3
RX+
Receive Data+
4
n/c
Not connected
5
n/c
Not connected
6
RX-
Receive Data-
7
n/c
Not connected
8
n/c
Not connected
