Tally Dascom DL-830 - 2.6.2 Resolve Wrinkled Ribbon (Ribbon Balance Gear)

Tally Dascom DL-830 User Guide V1.0
25
2.6.2 Resolve the wrinkled ribbon by adjusting the Ribbon Balance Gear
When you observe loose ribbon on one side from the front or wrinkled ribbon, adjust the Ribbon
Balance Gear resulted in even ribbon tensions on both ends.

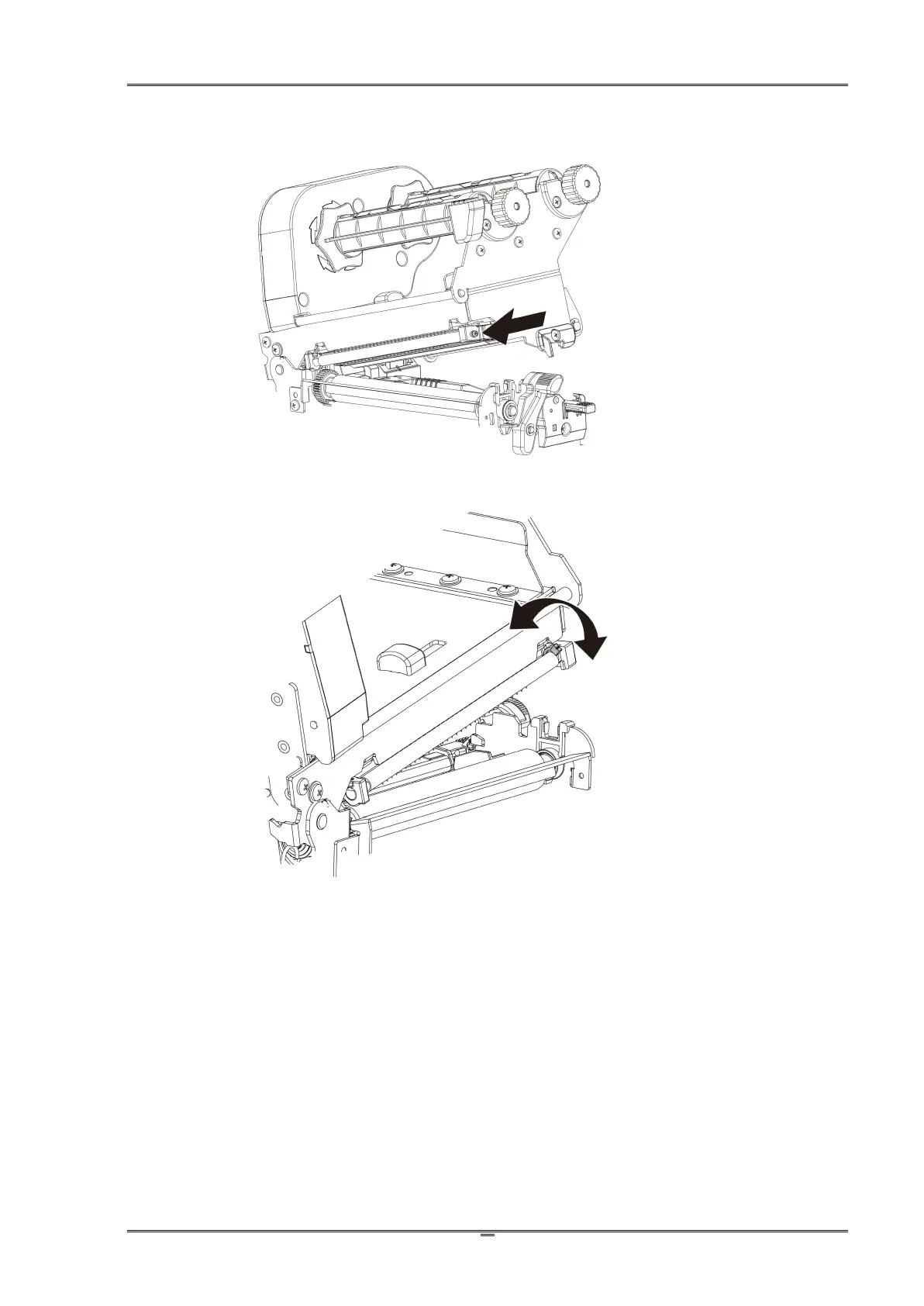

1. Unfasten the shaft screw.
2. Turn the Ribbon Balance Gear to shift the shaft slightly forward or backward.
3. After the adjustment, tight up the shaft screw.
